Components

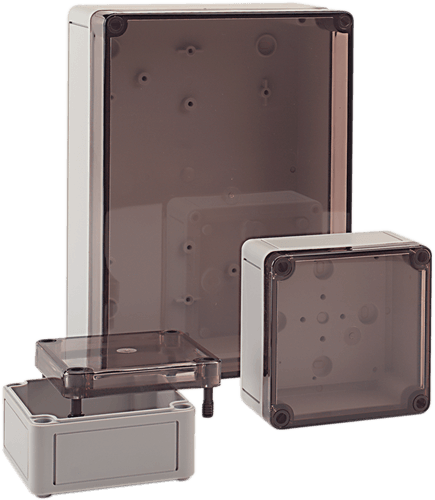

The ECO compact enclosure
The basis is provided by a large range of different enclosure sizes with up to four different lid heights. The PCI series of enclosures features PG knock-outs and the ECO series of enclosures has smooth side walls. ECO enclosures are optionally available with a coloured or with a transparent lid.
The complete range of accessories and these enclosures’ user-friendly design permit the use of these enclosure series in practically all sectors of industry.
Applications:
- Machine or control enclosures
- Terminal or connection enclosures
Showing all 50 results
| Model | Order Number | Length (mm) | Width (mm) | Height (mm) | IP | Material |
|---|---|---|---|---|---|---|
| ECO 09-16t | 60.18 18 32 | 180 | 182 | 165 | n/a | n/a |
| ECO 08-11 t | 60.11 18 22 | 110 | 180 | 111 | n/a | n/a |
| ECO 06-7 | 60.13 13 11 | 130 | 130 | 75 | n/a | n/a |
| ECO 06-7 t | 60.13 13 12 | 130 | 130 | 75 | n/a | n/a |
| ECO 06-10 | 60.13 13 21 | 130 | 130 | 99 | n/a | n/a |
| ECO 06-10 t | 60.13 13 22 | 130 | 130 | 99 | n/a | n/a |
| ECO 09-9 | 60.18 18 11 | 180 | 182 | 90 | n/a | n/a |
| ECO 09-9 t | 60.18 18 12 | 180 | 182 | 90 | n/a | n/a |
| ECO 09-11 | 60.18 18 21 | 180 | 182 | 111 | n/a | n/a |
| ECO 09-11 t | 60.18 18 22 | 180 | 182 | 111 | n/a | n/a |
| ECO 09-16 | 60.18 18 31 | 180 | 182 | 165 | n/a | n/a |
| ECO 08-11 | 60.11 18 21 | 110 | 180 | 111 | n/a | n/a |
| ECO 10-9 | 60.18 25 11 | 180 | 254 | 90 | n/a | n/a |
| ECO 10-9 t | 60.18 25 12 | 180 | 254 | 90 | n/a | n/a |
| ECO 10- 11 | 60.18 25 21 | 180 | 254 | 111 | n/a | n/a |
| ECO 10-11 t | 60.18 25 22 | 180 | 254 | 111 | n/a | n/a |
| ECO 10-16 | 60.18 25 31 | 180 | 254 | 165 | n/a | n/a |
| ECO 10-16 t | 60.18 25 32 | 180 | 254 | 165 | n/a | n/a |
| ECO 11-11 | 60.25 36 11 | 254 | 361 | 111 | n/a | n/a |
| ECO 11-11 t | 60.25 36 12 | 254 | 361 | 111 | n/a | n/a |
| ECO 11-16 | 60.25 36 21 | 254 | 361 | 165 | n/a | n/a |
| ECO 11-16 t | 60.25 36 22 | 254 | 361 | 165 | n/a | n/a |
| ECO 04-8 t | 60.09 13 22 | 94 | 130 | 81 | n/a | n/a |
| ECO 01-8 | 60.07 07 21 | 65 | 65 | 81 | n/a | n/a |
| ECO 02-6 | 60.07 09 11 | 65 | 94 | 57 | n/a | n/a |
| ECO 02-8 | 60.07 09 21 | 65 | 94 | 81 | n/a | n/a |
| ECO 03-6 | 60.09 09 11 | 94 | 94 | 57 | n/a | n/a |
| ECO 03-6 t | 60.09 09 12 | 94 | 94 | 57 | n/a | n/a |
| ECO 03-8 | 60.09 09 21 | 94 | 94 | 81 | n/a | n/a |
| ECO 03-8 t | 60.09 09 22 | 94 | 94 | 81 | n/a | n/a |
| ECO 04-6 | 60.09 13 11 | 94 | 130 | 57 | n/a | n/a |
| ECO 04-6 t | 60.09 13 12 | 94 | 130 | 57 | n/a | n/a |
| ECO 04-8 | 60.09 13 21 | 94 | 130 | 81 | n/a | n/a |
| ECO 01-6 | 60.07 07 11 | 65 | 65 | 57 | n/a | n/a |
| ECO 07-6 | 60.09 18 11 | 94 | 180 | 57 | n/a | n/a |
| ECO 07-6 t | 60.09 18 12 | 94 | 180 | 57 | n/a | n/a |
| ECO 07-8 | 60.09 18 21 | 94 | 180 | 81 | n/a | n/a |
| ECO 07-8 t | 60.09 18 22 | 94 | 180 | 81 | n/a | n/a |
| ECO 05-7 | 60.11 11 11 | 110 | 110 | 66 | n/a | n/a |
| ECO 05-7 t | 60.11 11 12 | 110 | 110 | 66 | n/a | n/a |
| ECO 05-9 | 60.11 11 21 | 110 | 110 | 90 | n/a | n/a |
| ECO 05-9 t | 60.11 11 22 | 110 | 110 | 90 | n/a | n/a |
| ECO 08-9 | 60.11 18 11 | 110 | 180 | 90 | n/a | n/a |
| ECO 08-9 t | 60.11 18 12 | 110 | 180 | 90 | n/a | n/a |
