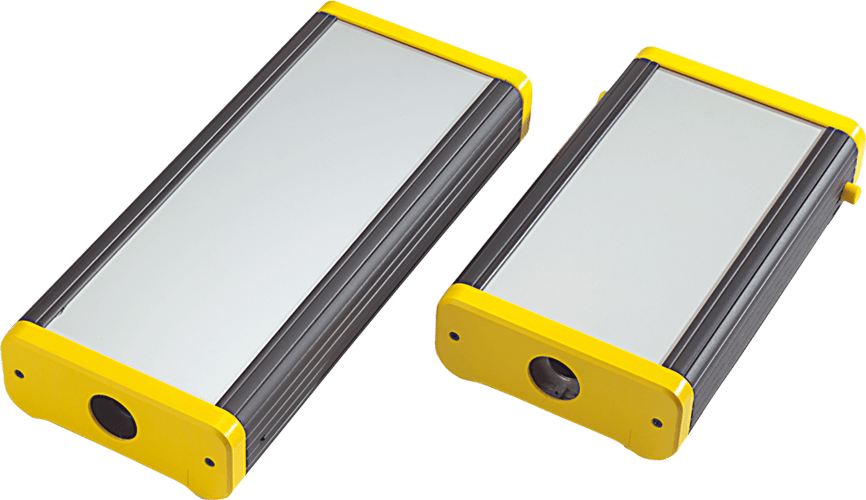

Pilot 50
The Pilot 50 is the universal enclosure system for the following applications:
Mechanical and plant engineering
- Control systems – for protection of high-cost electronics
- Display technology
This enclosure system provides ideal installation facilities for mini control systems and operating panels. Consisting of an inner and an outer enclosure profile, it provides adequate protection even in harsh industrial atmospheres. A screened inner enclosure is available for sensitive electronics (EMC sector).
This enclosure system is gaining special importance for installed display components: the profile system permits great flexibility.
Showing all 20 results
| Image | Model | Order Number | Length (mm) | Width (mm) | Height (mm) | IP | Material |
|---|---|---|---|---|---|---|---|
 |
Fixing set | 29.00 00 50 | n/a | n/a | n/a | n/a | n/a |
|
Front plate | 29.11 00 02 | n/a | n/a | n/a | n/a | n/a |
|
Front plate | 29.12 00 02 | n/a | n/a | n/a | n/a | n/a |
|
Front plate | 29.13 00 02 | n/a | n/a | n/a | n/a | n/a |
|
Front plate | 29.19 00 02 | n/a | n/a | n/a | n/a | n/a |
|
PCB fixing | 29.00 00 60 | n/a | n/a | n/a | n/a | n/a |
 |
Pilot 50-11 | 29.11 10 00 | 191 | 280 | 76 | n/a | n/a |
 |
Pilot 50-11B | 29.11 00 00 | 191 | 280 | 76 | n/a | n/a |
 |
Pilot 50-12 | 29.12 10 00 | 191 | 330 | 76 | n/a | n/a |
 |
Pilot 50-12B | 29.12 00 00 | 191 | 330 | 76 | n/a | n/a |
 |
Pilot 50-13 | 29.13 10 00 | 191 | 440 | 76 | n/a | n/a |
|
Pilot 50-13B | 29.13 00 00 | 191 | 440 | 76 | n/a | n/a |
|
Pilot 50-19 | 29.19 10 00 | special length | n/a | n/a | n/a | n/a |
|
Pilot 50-19B | 29.19 00 00 | special length | n/a | n/a | n/a | n/a |
|
Rear wall | 29.19 00 01 | n/a | n/a | n/a | n/a | n/a |
|
Rear wall | 29.13 00 01 | n/a | n/a | n/a | n/a | n/a |
|
Rear wall | 29.12 00 01 | n/a | n/a | n/a | n/a | n/a |
|
Rear wall | 29.11 00 01 | n/a | n/a | n/a | n/a | n/a |
|
Wall holder | 29.00 10 00 | n/a | n/a | n/a | n/a | n/a |
|
Wall holder | 29.00 00 70 | n/a | n/a | n/a | n/a | n/a |
