Build-A-Box® Custom
Quick and Rugged Housing For Today’s Engineers

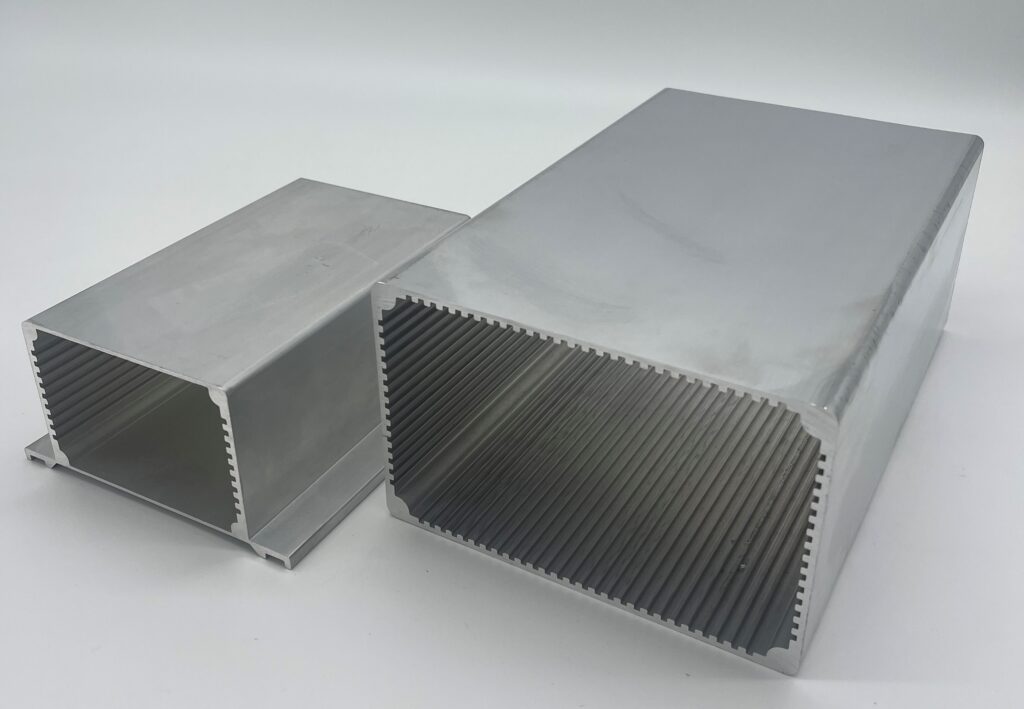

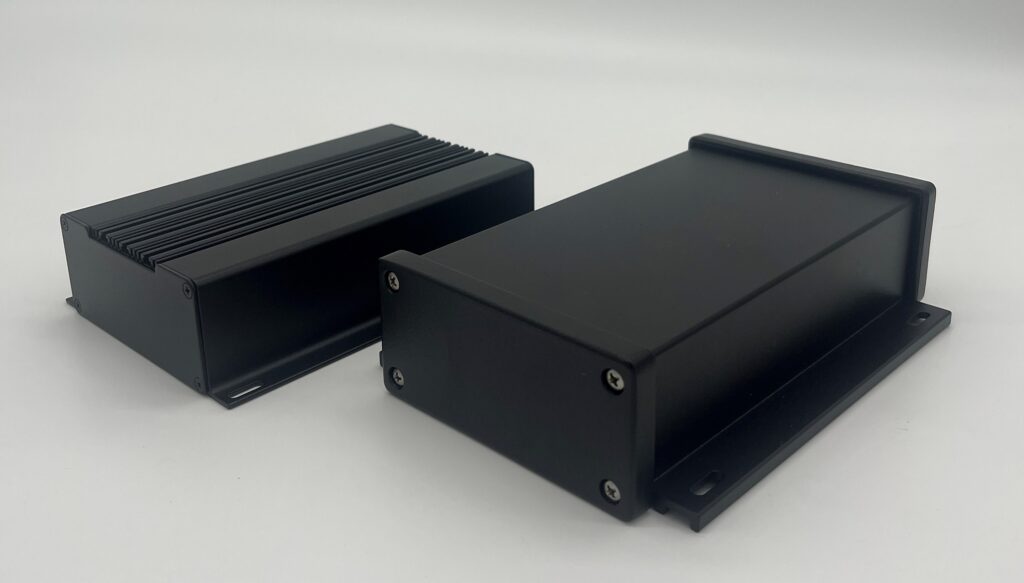

Our Build-A-Box® Custom Enclosures from Rose Industrial Enclosures is a series of extrusions that can be cut to any length from stock extrusions, and assembled with dust or watertight lids as required. For today’s engineers, this system offers quick and rugged housing. Originally designed to house standard VME Bus and Euro Cards in our off-the-shelf pre-packaged models, the extrusions and lids in the Build-A-Box® program offer engineers far greater design possibilities.
Key Features
- Allows you to decide size of enclosure based on applications
- Choose profile you wish to use before considering all options to complete project: length of box, type of lid, finish and secondary services, accessories, or placement of
- PC Boards
- Allows for printed circuit boards to be inserted along integrated guide rails

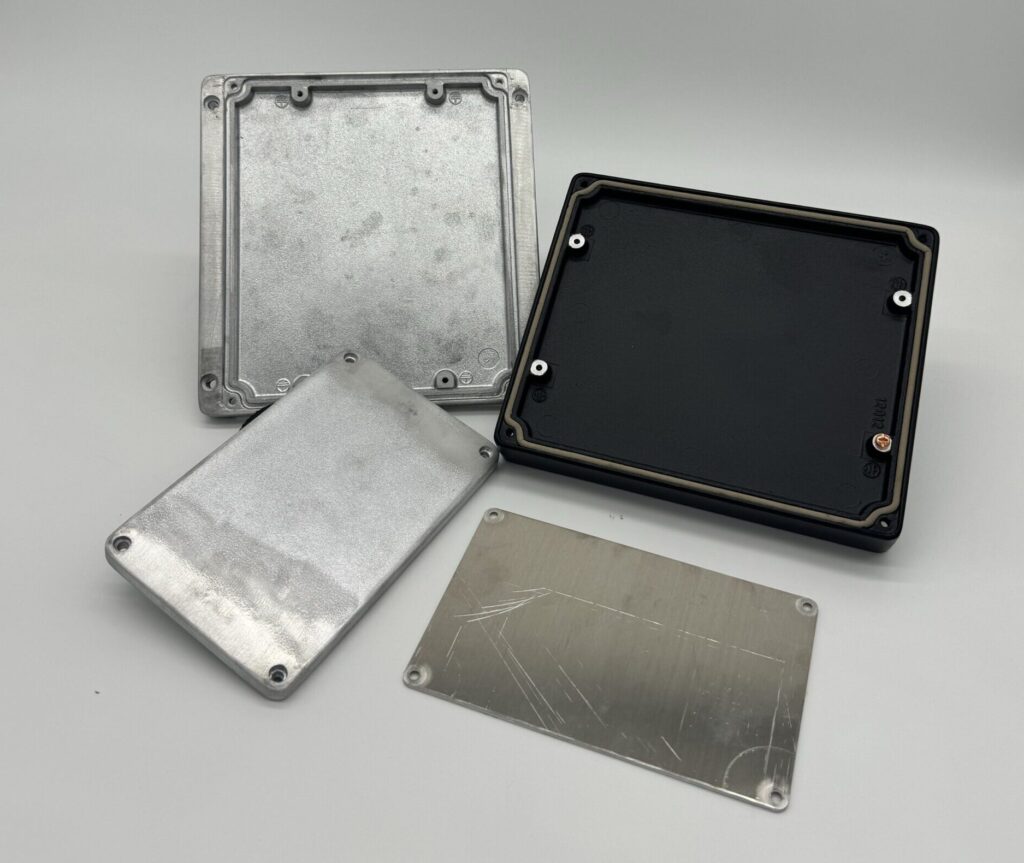

- Profiles can be configured in two types of design: dust-tight enclosures with IP 40 protection using sheet metal lids without a gasket and Watertight enclosures with IP 65 protection
- Die-cast aluminum lids with gasket
- Profiles available in eight sizes
- Integrated guide grooves for PCBs
- Finishing, painting, and other Value-added services available
| Part Number | Type | Description | Width | Height | Material | IP |
|---|---|---|---|---|---|---|
| Build-A-Box® Custom 0701 | ||||||
| 0701100000PAH2402 | Extrusion | Extrusion only, bare Aluminum (sold by the meter) | 105 | 45 | Aluminum | |
| Accessories | ||||||
| 009509008 | Lid | Dustight Lid-plate Aluminum, painted black, with lid screws | 105 | 45 | Aluminum | 40 |
| 009509008UNL | Lid | Dustight Lid-plate Aluminum, unpainted, with lid screws | 105 | 45 | Aluminum | 40 |
| 1009320500 | Screw | M3x6 black self threading countersink lid screw | ||||
| 94102 | Table Feet | Table Feet (sold as each) | ||||
| Build-A-Box® Custom 0702 | ||||||
| 07021000PAH24219 | Extrusion | Extrusion only, bare Aluminum (sold by the meter) | 105 | 69 | Aluminum | |
| Accessories | ||||||
| 0095075A8 | Lid | Dustight Lid-plate Aluminum, painted black, with lid screws | 105 | 69 | Aluminum | 40 |
| 0095075A8UNL | Lid | Dustight Lid-plate Aluminum, unpainted, with lid screws | 105 | 69 | Aluminum | 40 |
| 1009320500 | Screw | M3x6 black self threading countersink lid screw | ||||
| 94102 | Table Feet | Table Feet (sold as each) | ||||
| Build-A-Box® Custom 0703 | ||||||
| 001100308 | Extrusion | Extrusion only w/side flanges top and bottom-bare aluminum (sold by the meter) | 196/166 | 106 | Aluminum | |
| Accessories | ||||||
| 0703891600 | Lid | Dustight Wall Mount Lid-plate Aluminum, painted black, with lid screws | 196/166 | 106 | Aluminum | 40 |
| 0703891608 | Lid | Dustight Wall Mount Lid-plate Aluminum, unpainted, with lid screws | 196/166 | 106 | Aluminum | 40 |
| 0703120010 | Lid | Watertight Die-Cast Lid-Aluminum, painted black, with lid screw and gasket | 196/166 | 106 | Aluminum | 65 |
| 0703120018 | Lid | Watertight Die-Cast Lid-Aluminum, unpainted, with lid screw and gasket | 196/166 | 106 | Aluminum | 65 |
| 93212 | Screw | Slotted Countersink Screw for Dustight Lid M4x6mm | ||||
| 93270 | Screw | Phillips Head Screw for Watertight Lid M4x18mm | ||||
| 94102 | Table Feet | Table Feet (sold as each) | ||||
| Build-A-Box® Custom 0710 | ||||||
| 001102308 | Extrusion | Extrusion only, bare Aluminum (sold by the meter) | 105 | 73.5 | Aluminum | |
| Accessories | ||||||
| 00125208UNL | Lid | Watertight Die-Cast Lid-Aluminum, unpainted, with lid screw and gasket | 105 | 49 | Aluminum | 65 |
| Build-A-Box® Custom 0711 | ||||||
| 001102408UH25144 | Extrusion | Extrusion only w/side flanges top and bottom-bare aluminum (sold by the meter) [For Plate Lids, Contact Us] | 105 | 49 | Aluminum | |
| Accessories | ||||||
| 001252908UNL | Lid | Watertight Die-Cast Lid-Aluminum, unpainted, with lid screw and gasket | 105 | 49 | Aluminum | 65 |
| Part Number | Type | Description | Width | Height | Material | IP |
|---|---|---|---|---|---|---|
| Build-A-Box® Custom 0705 | ||||||
| 001100508PAH2565 | Extrusion | Extrusion only w/side flanges top and bottom-bare aluminum (sold by the meter) | 84.4 | 100.7 | Aluminum | |
| Accessories | ||||||
| 009521108 | Lid | Dustight Lid-plate Aluminum, painted jet black similar to RAL 9005, with lid screws | 85 | 105 | Aluminum | 40 |
| 009521108UNL | Lid | Dustight Lid-plate Aluminum, unpainted, with lid screws | 85 | 105 | Aluminum | 40 |
| 001200508 | Lid | Dustight Wall Mount Lid-plate Aluminum, painted jet black similar to RAL 9005, with lid screws | 105 | 112 | Aluminum | 40 |
| 001200508UNL | Lid | Dustight Wall Mount Lid-plate Aluminum, unpainted, with lid screws | 105 | 112 | Aluminum | 40 |
| 001200708 | Lid | Watertight Die-cast Lid- Aluminum, painted jet black similar to RAL 9005, with lid screws | 112 | 92 | Aluminum | 65 |
| 001200708UNL | Lid | Watertight Die-cast Lid- Aluminum , unpainted, with lid screws | 112 | 92 | Aluminum | 65 |
| 001200808 | Lid | Watertight Wall Mount Die-cast Lid-Aluminum, painted jet black similar to RAL 9005, with lid screws | 112 | 112 | Aluminum | 65 |
| 001200808UNL | Lid | Watertight Wall Mount Die-cast Lid- Aluminum, unpainted, with lid screws | 112 | 112 | Aluminum | 65 |
| 0705120060 | Lid | Watertight Die-cast Bezel Lid-Aluminum, painted jet black similar to RAL 9005, with lid screws | 112 | 92 | Aluminum | 65 |
| 001200608UNL | Lid | Watertight Die-cast Bezel Lid- Aluminum, unpainted, with lid screws | 112 | 92 | Aluminum | 65 |
| 93212 | Screw | Slotted Countersink Screw for Dustight Lid M4x6mm | ||||
| 93270 | Screw | Screw for Watertight Lid M4x18mm | ||||
| 94102 | Table Feet | Table Feet (sold as each) | ||||
| Build-A-Box® Custom 0706 | ||||||
| 001100608 | Extrusion | Extrusion only, bare Aluminum (sold by the meter) | 164.7 | 104.7 | Aluminum | |
| Accessories | ||||||
| 001200808 | Lid | Dustight Wall Mount Lid-plate Aluminum, painted jet black similar to RAL 9005, with lid screws | 135 | 165 | Aluminum | 40 |
| 001200808UNL | Lid | Dustight Wall Mount Lid-plate Aluminum, unpainted, with lid screws | 135 | 165 | Aluminum | 40 |
| 001201008 | Lid | Watertight Die-Cast Lid-Aluminum, painted jet black similar to RAL 9005, with lid screw and gasket | 172.5 | 135 | Aluminum | 65 |
| 001201008UNL | Lid | Watertight Die-Cast Lid-Aluminum, unpainted, with lid screw and gasket | 172.5 | 135 | Aluminum | 65 |
| 009521108UNL | Lid | Dustight Lid-plate Aluminum, unpainted, with lid screws | 105 | 165 | Aluminum | 40 |
| Build-A-Box® Custom 0707 | ||||||
| 001100708 | Extrusion | Extrusion only w/side flanges top and bottom-bare aluminum (sold by the meter) | 195.6 | 166.7 | Aluminum | |
| Accessories | ||||||
| 001201108 | Lid | Dustight Wall Mount Lid-plate Aluminum, painted jet black similar to RAL 9005, with lid screws | 196 | 196 | Aluminum | 40 |
| 001201108UNL | Lid | Dustight Wall Mount Lid-plate Aluminum, unpainted, with lid screws | 196 | 196 | Aluminum | 40 |
| 001201208 | Lid | Watertight Die-cast Bezel Lid-Aluminum, painted jet black similar to RAL 9005, with lid screws | 203 | 174 | Aluminum | 65 |
| 001201208UNL | Lid | Watertight Die-cast Bezel Lid- Aluminum, unpainted, with lid screws | 203 | 174 | Aluminum | 65 |
| 001201308 | Lid | Dustight Wall Mount Lid-plate Aluminum, painted jet black similar to RAL 9005, with lid screws | 196 | 196 | Aluminum | 40 |
| 001201308UNL | Lid | Dustight Wall Mount Lid-plate Aluminum, unpainted, with lid screws | 196 | 196 | Aluminum | 40 |
| 009521208 | Lid | Dustight Lid-plate Aluminum, painted black, with lid screws | 167 | 196 | Aluminum | 40 |
| 009521208UNL | Lid | Dustight Lid-plate Aluminum, unpainted, with lid screws | 167 | 196 | Aluminum | 40 |
