Components
IGS stainless-steel industrial enclosures are used, thanks to their quality and their structure, in a broad range of applications:
- Foodstuffs and packaging technology
- Rail-transport technology
- Process engineering
- Sectors with a harsh or aggressive environment
- EMC-endangered areas

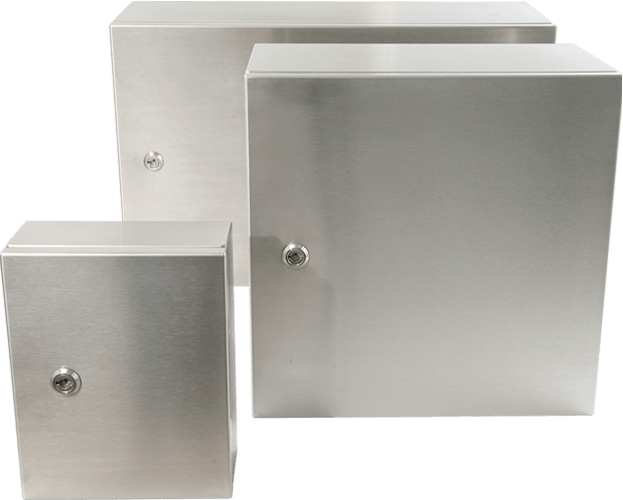

IGS hinged industrial enclosures are manufactured in Material 1.4301/304 or, alternatively, 1.4406/316L, and thus assure extremely good protection in harsh and aggressive environments. The lid takes the form of a door and is secured by means of an internal hinge. The door has a double ward lock and thus makes it possible to open and lock the enclosure quickly and easily at any time. IGS enclosures feature Degree of Protection IP 66 as standard. The lower enclosure section is designed to permit the simple installation of mounting plates or DIN rails. These enclosures provide good EMC screening, which can be improved even further by means of a special “EMC seal”.
Showing all 10 results
| Image | Model | Order Number | Length (mm) | Width (mm) | Height (mm) | IP | Material |
|---|---|---|---|---|---|---|---|
 |
IGS 3710 | 37.00 22 09 | 200 | 250 | 97 | n/a | n/a |
|
IGS 3715 | 37.00 22 15 | 200 | 250 | 157 | n/a | n/a |
|
IGS 3720 | 37.00 32 09 | 350 | 250 | 97 | n/a | n/a |
|
IGS 3725 | 37.00 33 16 | 300 | 300 | 167 | n/a | n/a |
|
IGS 3730 | 37.00 44 16 | 380 | 380 | 167 | n/a | n/a |
|
IGS 3735 | 37.00 44 21 | 380 | 380 | 217 | n/a | n/a |
|
IGS 3740 | 37.00 53 16 | 500 | 300 | 167 | n/a | n/a |
|
IGS 3745 | 37.00 63 16 | 600 | 300 | 167 | n/a | n/a |
|
IGS 3750 | 37.00 64 21 | 600 | 380 | 217 | n/a | n/a |
|
IGS 3755 | 37.00 99 00 | Special size acc. specification | n/a | n/a | n/a | n/a |
