Components

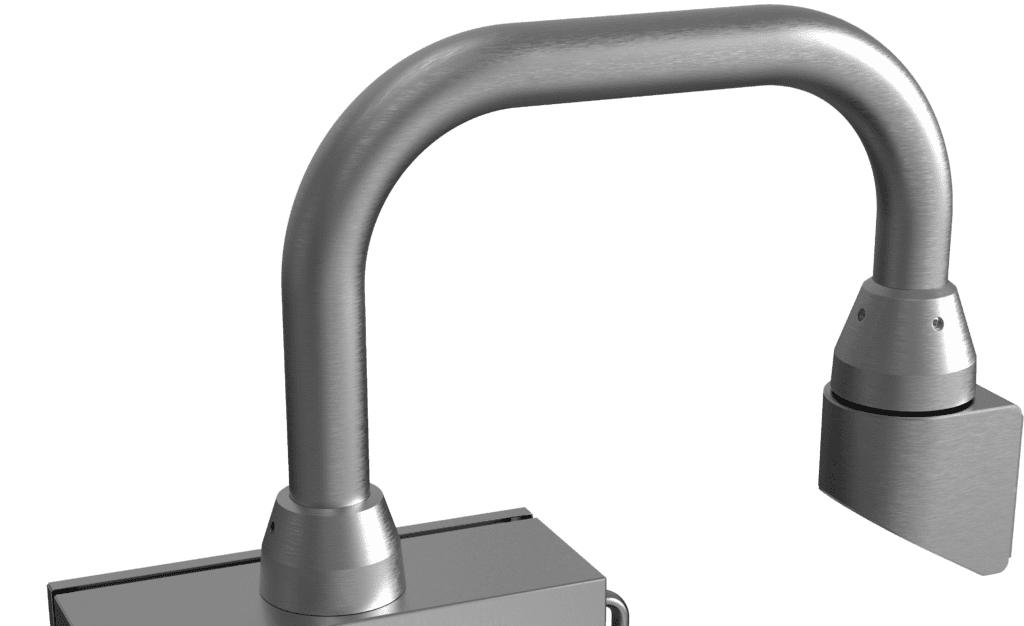

The stainless steel support arm systems GTH easy 48 were developed for the use in particularly demanding or sensitive areas. The GTH easy 48 convinces by as few edges and gaps as possible at the components and allows in combination with bent tubes hardly dead spaces. Due to the high protection class of IP66 and IP69, the system can be cleaned without any problems even under the most difficult conditions.
The main areas of application are
- Hygiene,
- Food,
- Chemistry and pharmacy
- and all other areas in which stainless steel is indispensable for the construction of a support arm system.
The GTH easy 48 is the small system with a 48 round tube diameter.
Showing all 21 results
Image | Model | Order Number | Length (mm) | Width (mm) | Height (mm) | IP | Material |
---|---|---|---|---|---|---|---|
230 x 100 x 128 | 13.05 00 00 | n/a | n/a | n/a | n/a | n/a | |
230 x 200 x 128 | 13.10 10 00 | n/a | n/a | n/a | n/a | n/a | |
230 x 200 x 198 | 13.11 10 00 | n/a | n/a | n/a | n/a | n/a | |
260 x 160 x 108 | 13.07 00 00 | n/a | n/a | n/a | n/a | n/a | |
360 x 160 x 108 | 13.08 00 00 | n/a | n/a | n/a | n/a | n/a | |
560 x 160 x 108 | 13.09 00 00 | n/a | n/a | n/a | n/a | n/a | |
Console adapter | 57.03 76 00 | n/a | n/a | n/a | n/a | n/a | |

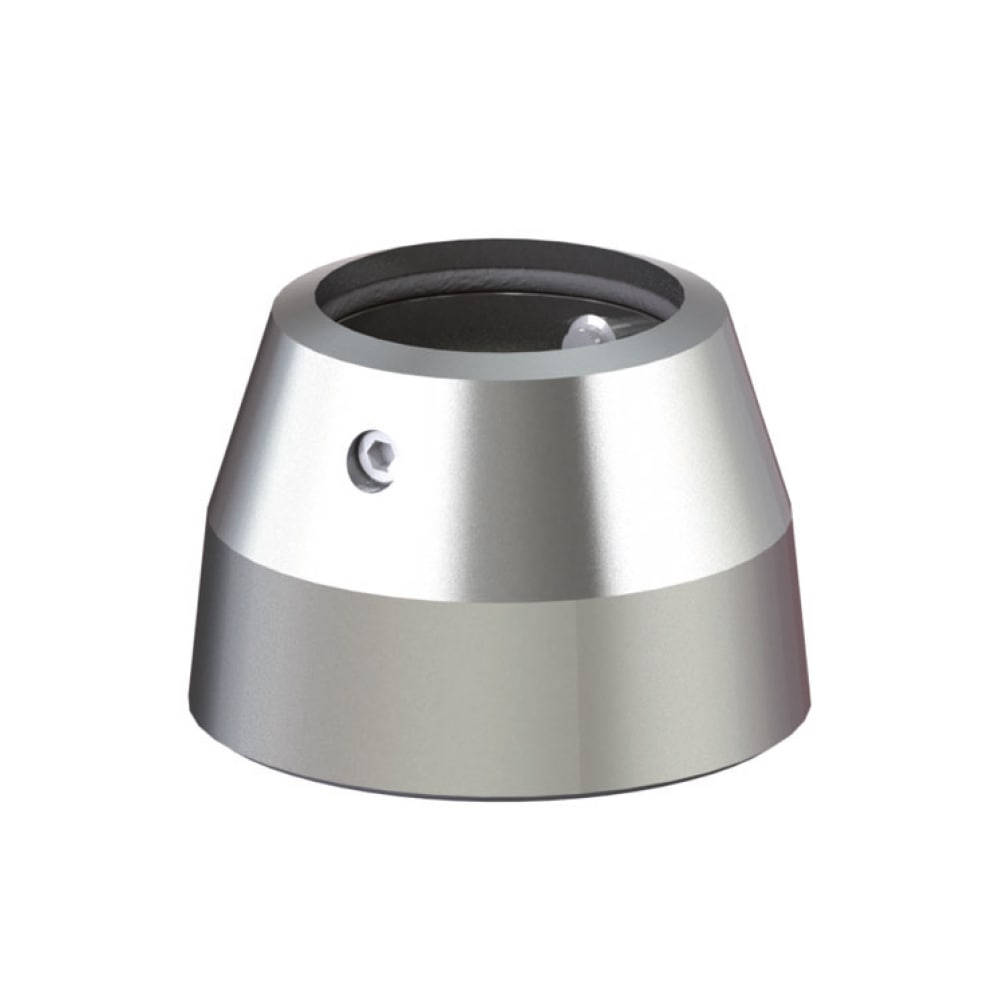

Coupling | 57.03 73 00 | n/a | n/a | n/a | n/a | n/a | |
Top-mounted joint | 57.03 66 00 | n/a | n/a | n/a | n/a | n/a | |
Tube type I 0,5m | 57.03 00 05 | n/a | n/a | n/a | n/a | n/a | |
Tube type I 1,5m | 57.03 00 15 | n/a | n/a | n/a | n/a | n/a | |
Tube type I 1m | 57.03 00 10 | n/a | n/a | n/a | n/a | n/a | |
Tube type I special length | 57.03 00 99 | n/a | n/a | n/a | n/a | n/a | |
Tube type J 0.5/0.3/0.3m | 57.03 01 05 | n/a | n/a | n/a | n/a | n/a | |
Tube type J 0.75/0.75/0.3m | 57.03 01 07 | n/a | n/a | n/a | n/a | n/a | |
Tube type J 1.0/0.75/0.3m | 57.03 01 10 | n/a | n/a | n/a | n/a | n/a | |
Tube Type J Special length | 57.03 01 99 | n/a | n/a | n/a | n/a | n/a | |
Tube type S 0.5/0.3/0.3m | 57.03 02 05 | n/a | n/a | n/a | n/a | n/a | |
Tube type S 1.0/0.3/0.3m | 57.03 02 10 | n/a | n/a | n/a | n/a | n/a | |
Tube type S special length | 57.03 02 99 | n/a | n/a | n/a | n/a | n/a | |
Wall console | 57.03 79 00 | n/a | n/a | n/a | n/a | n/a |
