Monitor Mounting

Monitor mountings for industrial applications

The monitor mounting from RK Rose+Krieger is a high-strength and flexibly mountable solution for the fixing and ergonomic adjustment of monitors and touch panels in industrial adjustments. The vibration-proof and lockable version with tilt adjustment in 15° increments is suitable for monitors, control panels and touch panels up to 25 kg (static) and offers a wide range of adjustment options: for example, it allows the screen to be turned, tilted and swiveled and – if fixed to a round or square tube system – height-adjusted without tools. The new version of the RK monitor mounting with ball joint offers even greater flexibility for the adjustment of industrial monitors. The joint enables a pivoting range of 60° with a load of up to max. 10 kg (static). A special coating on the ball joint and a clamping mechanism that is registered as a utility model guarantee the static friction required for reliable processes when the clamping lever is tightened.

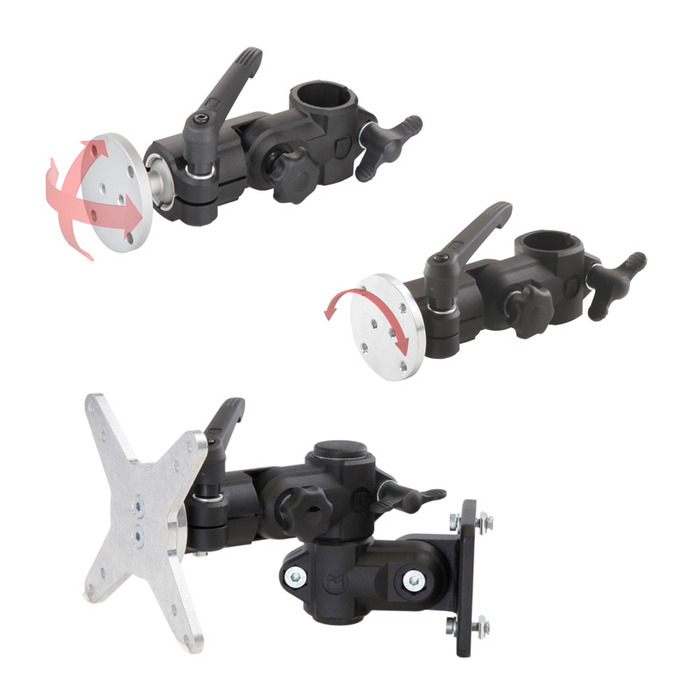

The monitor mounting is available in a wide range of different versions

Monitor mounting, with a choice of universal or VESA mount

With different fitting dimensions for end devices and a choice of mounting options, the RK monitor mounting offers maximum flexibility: users can choose between a cross-shaped connecting plate as per VESA Standard 75/100 – i.e. with a 75 x 75 mm or 100 x 100 mm mounting hole pattern – or a round aluminum universal mounting surface. The monitor mounting is compatible with RK connecting technology and the BLOCAN® aluminum profile system, although it can also be mounted on any other tube or profile or directly wall-mounted. The screws and slot stones required for fixing to an RK profile system are included in the scope of delivery.
