Enclosures

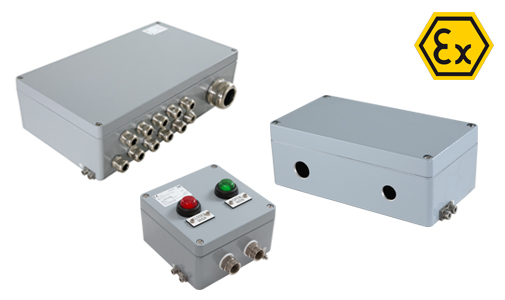

The Ex aluminium range comprises standard and flange enclosures in the form of pre-assembled Ex terminal enclosures with approved terminal blocks, cable glands and accessories for the intrinsically safe (Ex ia) and increased (EX e) safety-zone applications, and Ex component-certified empty enclosures for individual equipping.

A broad range of products is available, in sizes from 64 x 58 x 34 mm to 600 x 600 x 200 mm.

Thanks to their robust design, aluminium Ex enclosures are suitable for universal use in aggressive environments and in various climate zones.

The enclosure body consists of die-cast aluminium AlSi 12. The lid and the base are screwed together by means of tethered stainless-steel lid screws. The external connection for protective conductors also consists of stainless steel.

Showing all 116 results

Model	Order Number	Length (mm)	Width (mm)	Height (mm)	IP	Material
AExB 25010	25.06 06 03	64	58	34	n/a	n/a
AExB 25015	25.06 10 03	64	98	34	n/a	n/a
AExB 25020	25.06 15 03	64	150	34	n/a	n/a
AExB 25025	25.08 08 06 / 250808060	80	75	57	n/a	n/a
AExB 25030	25.08 13 06	80	125	57	n/a	n/a
AExB 25035	25.08 18 06	80	175	57	n/a	n/a
AExB 25040	25.08 25 05	80	250	52	n/a	n/a
AExB 25045	25.10 10 08	100	100	81	n/a	n/a
AExB 25050	25.10 16 08	100	160	81	n/a	n/a
AExB 25055	25.10 20 08	100	200	81	n/a	n/a
AExB 25060	25.12 12 08	120	122	81	n/a	n/a
AExB 25065	25.12 12 09	120	122	91	n/a	n/a
AExB 25070	25.12 22 08	120	220	81	n/a	n/a
AExB 25075	25.12 22 09	120	220	91	n/a	n/a
AExB 25080	25.12 36 08	120	360	81	n/a	n/a
AExB 25085	25.14 14 09	140	140	91	n/a	n/a
AExB 25090	25.14 20 09	140	200	91	n/a	n/a
AExB 25095	25.16 16 09	160	160	91	n/a	n/a
AExB 25100	25.16 26 09	160	260	91	n/a	n/a
AExB 25105	25.16 36 09	160	360	91	n/a	n/a
AExB 25110	25.16 56 09	160	560	91	n/a	n/a
AExB 25115	25.18 18 10	180	180	101	n/a	n/a
AExB 25120	25.18 28 10	180	280	101	n/a	n/a
AExB 25130	25.23 20 11	232	202	111	n/a	n/a
AExB 25135	25.23 20 18	232	202	181	n/a	n/a
AExB 25140	25.23 28 11	230	280	111	n/a	n/a
AExB 25145	25.23 33 11	230	330	111	n/a	n/a
AExB 25150	25.23 33 18	230	330	181	n/a	n/a
AExB 25155	25.23 40 11	230	400	111	n/a	n/a
AExB 25160	25.23 40 23	230	400	225	n/a	n/a
AExB 25165	25.23 60 11	230	600	111	n/a	n/a
AExB 25170	25.31 40 11	313	404	111	n/a	n/a
AExB 25175	25.31 40 14	312	403	141	n/a	n/a
AExB 25180	25.31 40 18	313	404	181	n/a	n/a
AExB 25185	25.31 40 23	313	404	227	n/a	n/a
AExB 25190	25.31 60 11	310	600	111	n/a	n/a
AExB 25195	25.31 60 18	310	600	181	n/a	n/a
AExB 25200	25.60 60 20	600	600	202	n/a	n/a
AExe 05010	05.06 06 03	64	58	34	n/a	n/a
AExe 05015	05.06 10 03	64	98	34	n/a	n/a
AExe 05020	05.06 15 03	64	150	34	n/a	n/a
AExe 05025	05.08 08 06	80	75	57	n/a	n/a
AExe 05030	05.08 13 06	80	125	57	n/a	n/a
AExe 05035	05.08 18 06	80	175	57	n/a	n/a
AExe 05040	05.08 25 05	80	250	52	n/a	n/a
AExe 05045	05.10 10 08	100	100	81	n/a	n/a
AExe 05050	05.10 16 08	100	160	81	n/a	n/a
AExe 05055	05.10 20 08	100	200	81	n/a	n/a
AExe 05060	05.12 12 08	120	122	81	n/a	n/a
AExe 05065	05.12 12 09	120	122	91	n/a	n/a
AExe 05070	05.12 22 08	120	220	81	n/a	n/a
AExe 05075	05.12 22 09	120	220	91	n/a	n/a
AExe 05080	05.12 36 08	120	360	81	n/a	n/a
AExe 05085	05.14 14 09	140	140	91	n/a	n/a
AExe 05090	05.14 20 09	140	200	91	n/a	n/a
AExe 05095	05.16 16 09	160	160	91	n/a	n/a
AExe 05100	05.16 26 09	160	260	91	n/a	n/a
AExe 05105	05.16 36 09	160	360	91	n/a	n/a
AExe 05110	05.16 56 09	160	560	91	n/a	n/a
AExe 05115	05.18 18 10	180	180	101	n/a	n/a
AExe 05120	05.18 28 10	180	280	101	n/a	n/a
AExe 05125	05.23 10 11	230	100	111	n/a	n/a
AExe 05130	05.23 20 11	232	202	111	n/a	n/a
AExe 05135	05.23 20 18	232	202	181	n/a	n/a
AExe 05140	05.23 28 11	230	280	111	n/a	n/a
AExe 05145	05.23 33 11	230	330	111	n/a	n/a
AExe 05150	05.23 33 18	230	330	181	n/a	n/a
AExe 05155	05.23 40 11	230	400	111	n/a	n/a
AExe 05160	05.23 40 23	230	400	225	n/a	n/a
AExe 05165	05.23 60 11	230	600	111	n/a	n/a
AExe 05170	05.31 40 11	313	404	111	n/a	n/a
AExe 05175	05.31 40 14	312	403	141	n/a	n/a
AExe 05180	05.31 40 18	313	404	181	n/a	n/a
AExe 05185	05.31 40 23	313	404	227	n/a	n/a
AExe 05190	05.31 60 11	310	600	111	n/a	n/a
AExe 05195	05.31 60 18	310	600	181	n/a	n/a
AExe 05200	05.60 60 20	600	600	202	n/a	n/a
AExi 15010	15.06 06 03	64	58	34	n/a	n/a
AExi 15015	15.06 10 03	64	98	34	n/a	n/a
AExi 15020	15.06 15 03	64	150	34	n/a	n/a
AExi 15025	15.08 08 06	80	75	57	n/a	n/a
AExi 15030	15.08 13 06	80	125	57	n/a	n/a
AExi 15035	15.08 18 06	80	175	57	n/a	n/a
AExi 15040	15.08 25 05	80	250	52	n/a	n/a
AExi 15045	15.10 10 08	100	100	81	n/a	n/a
AExi 15050	15.10 16 08	100	160	81	n/a	n/a
AExi 15055	15.10 20 08	100	200	81	n/a	n/a
AExi 15060	15.12 12 08	120	122	81	n/a	n/a
AExi 15065	15.12 12 09	120	122	91	n/a	n/a
AExi 15070	15.12 22 08	120	220	81	n/a	n/a
AExi 15075	15.12 22 09	120	220	91	n/a	n/a
AExi 15080	15.12 36 08	120	360	81	n/a	n/a
AExi 15085	15.14 14 09	140	140	91	n/a	n/a
AExi 15090	15.14 20 09	140	200	91	n/a	n/a
AExi 15095	15.16 16 09	160	160	91	n/a	n/a
AExi 15100	15.16 26 09	160	260	91	n/a	n/a
AExi 15105	15.16 36 09	160	360	91	n/a	n/a
AExi 15110	15.16 56 09	160	560	91	n/a	n/a
AExi 15115	15.18 18 10	180	180	101	n/a	n/a
AExi 15120	15.18 28 10	180	280	101	n/a	n/a
AExi 15125	15.23 10 11	230	100	111	n/a	n/a
AExi 15130	15.23 20 11	232	202	111	n/a	n/a
AExi 15135	15.23 20 18	232	202	181	n/a	n/a
AExi 15140	15.23 28 11	230	280	111	n/a	n/a
AExi 15145	15.23 33 11	230	330	111	n/a	n/a
AExi 15150	15.23 33 18	230	330	181	n/a	n/a
AExi 15155	15.23 40 11	230	400	111	n/a	n/a
AExi 15160	15.23 40 23	230	400	225	n/a	n/a
AExi 15165	15.23 60 11	230	600	111	n/a	n/a
AExi 15170	15.31 40 11	313	404	111	n/a	n/a
AExi 15175	15.31 40 14	312	403	141	n/a	n/a
AExi 15180	15.31 40 18	313	404	181	n/a	n/a
AExi 15185	15.31 40 23	313	404	227	n/a	n/a
AExi 15190	15.31 60 11	310	600	111	n/a	n/a
AExi 15195	15.31 60 18	310	600	181	n/a	n/a
AExi 15200	15.60 60 20	600	600	202	n/a	n/a
