Components

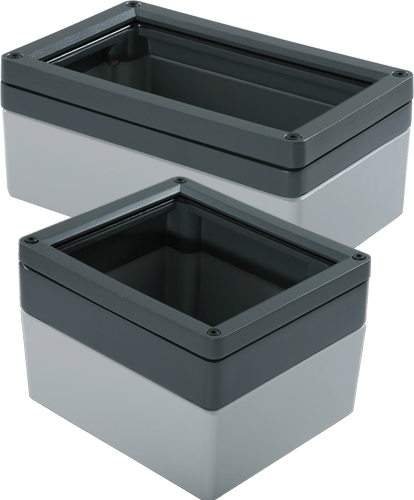

The Commander 1 F enclosure system convinces with its simple design and its robustness.
These enclosures, based on the lower sections of our standard aluminium enclosures but with a front frame mounted on them, achieve a degree of protection of IP 65 (in acc. with EN 60529) with an enclosure-body impact strength of 7 Joule (in acc. with EN 60079, Part 0).

Components such as control elements and membrane keypads can be installed via the front panel, which is accommodated on the front frame mounted.

Above and beyond the standard model, we can also provide customised machining services and an individual paint finish.

Applications

  • Mechanical and plant engineering
  • Control and instrumentation (C&I) systems
  • Integration of compact industrial PCs
  • Monitoring and safety systems

Showing all 54 results

ImageModelOrder NumberLength (mm)Width (mm)Height (mm)IPMaterial
13.07F 13.07 05 00 260160108 n/a n/a
13.08F 13.08 05 00 360160108 n/a n/a
13.10F 13.10 05 00 230200128 n/a n/a
13.10FG 13.10 15 00 230200128 n/a n/a
13.10FGT 13.10 15 10 230200153 n/a n/a
13.10FT 13.10 05 10 230200153 n/a n/a
13.11F 13.11 05 00 230200198 n/a n/a
13.11FG 13.11 15 00 230200198 n/a n/a
13.12F 13.12 05 00 230330128 n/a n/a
13.12FG 13.12 15 00 230330128 n/a n/a
13.12FGT 13.12 15 10 230330153 n/a n/a
13.12FT 13.12 05 10 230330153 n/a n/a
13.13F 13.13 05 00 230330198 n/a n/a
13.13FG 13.13 15 00 230330198 n/a n/a
13.14F 13.14 05 00 230400128 n/a n/a
13.14FG 13.14 15 00 230400128 n/a n/a
13.15F 13.15 05 00 230400242 n/a n/a
13.15FG 13.15 15 00 230400242 n/a n/a
13.17F 13.17 05 00 230280130 n/a n/a
13.17FG 13.17 15 00 230280130 n/a n/a
13.20F 13.20 05 00 310400128 n/a n/a
13.20FG 13.20 15 00 310400128 n/a n/a
13.21F 13.21 05 00 310400198 n/a n/a
13.21FG 13.21 15 00 310400198 n/a n/a
13.25F 13.25 05 00 310400158 n/a n/a
13.25FG 13.25 15 00 310400158 n/a n/a
SL 2000-1 19.50 19 00 329545195 n/a n/a
SL 2000-10 19.51 65 01 37454590 n/a n/a
SL 2000-11 19.51 95 00 374545120 n/a n/a
SL 2000-12 19.51 95 01 374545120 n/a n/a
SL 2000-13 19.52 19 00 418545195 n/a n/a
SL 2000-14 19.52 19 01 418545195 n/a n/a
SL 2000-15 19.52 65 00 41854590 n/a n/a
SL 2000-16 19.52 65 01 41854590 n/a n/a
SL 2000-17 19.52 95 00 418545120 n/a n/a
SL 2000-18 19.52 95 01 418545120 n/a n/a
SL 2000-19 19.53 65 00 21754590 n/a n/a
SL 2000-2 19.50 19 01 329545195 n/a n/a
SL 2000-20 19.53 65 01 21754590 n/a n/a
SL 2000-21 19.53 95 00 217545120 n/a n/a
SL 2000-22 19.53 95 01 217545120 n/a n/a
SL 2000-23 So 19.59 19 00 Special sizes*n/an/a n/a n/a
SL 2000-24 So 19.59 19 01 Special sizes*n/an/a n/a n/a
SL 2000-25 So 19.59 65 00 Special sizes*n/an/a n/a n/a
SL 2000-26 So 19.59 65 01 Special sizes*n/an/a n/a n/a
SL 2000-27 So 19.59 95 00 Special sizes*n/an/a n/a n/a
SL 2000-28 So 19.59 95 01 Special sizes*n/an/a n/a n/a
SL 2000-3 19.50 65 00 32954590 n/a n/a
SL 2000-4 19.50 65 01 32954590 n/a n/a
SL 2000-5 19.50 95 00 329545120 n/a n/a
SL 2000-6 19.50 95 01 329545120 n/a n/a
SL 2000-7 19.51 19 00 374545195 n/a n/a
SL 2000-8 19.51 19 01 374545195 n/a n/a
SL 2000-9 19.51 65 00 37454590 n/a n/a
