Components

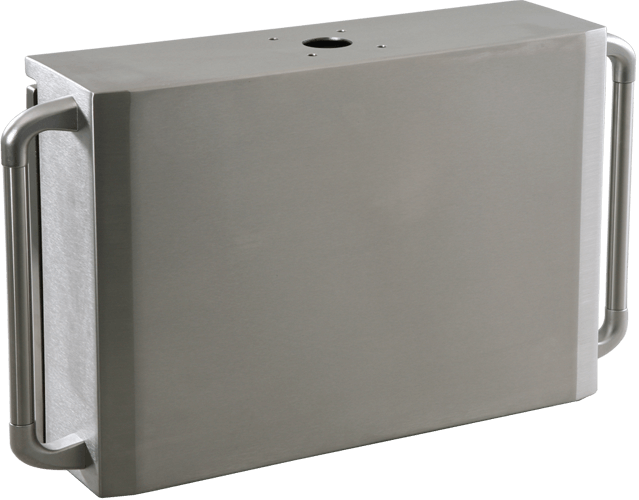

The stainless-steel (material: 1.4301 / 304) Commander 420 has been specially conceived for industrial applications. This all-rounder stainless-steel control enclosure provides space for individual cut-outs appropriate to your control systems and displays. In addition, this control enclosure, in combination with ROSE’s GTH 48 supporting-arm system and the optionally available stainless-steel handles, assures extremely good user friendliness. The coupling hole for the GTH 48 supporting-arm system is included in the scope of supply.
The Commander 420 is available in six sizes, from 380 x 250 x 150 mm to 500 x 450 x 220 mm. Special sizes are available for orders of twenty-five enclosures or more.
Showing all 12 results
| Image | Model | Order Number | Length (mm) | Width (mm) | Height (mm) | IP | Material |
|---|---|---|---|---|---|---|---|
 |
C410-01 | 56.10 02 01 | 250 | 380 | 150 | n/a | n/a |
|
C410-02 | 56.10 02 02 | 250 | 380 | 220 | n/a | n/a |
|
C410-03 | 56.10 02 03 | 350 | 500 | 150 | n/a | n/a |
|
C410-04 | 56.10 02 04 | 350 | 500 | 220 | n/a | n/a |
|
C410-05 | 56.10 02 05 | 450 | 500 | 150 | n/a | n/a |
|
C410-06 | 56.10 02 06 | 450 | 440 | 220 | n/a | n/a |
|
C420-01 | 56.20 01 01 | 250 | 380 | 150 | n/a | n/a |
|
C420-02 | 56.20 01 02 | 250 | 380 | 220 | n/a | n/a |
|
C420-03 | 56.20 01 03 | 350 | 500 | 150 | n/a | n/a |
|
C420-04 | 56.20 01 04 | 350 | 500 | 220 | n/a | n/a |
|
C420-05 | 56.20 01 05 | 450 | 500 | 150 | n/a | n/a |
|
C420-06 | 56.20 01 06 | 450 | 500 | 220 | n/a | n/a |
