Enclosures

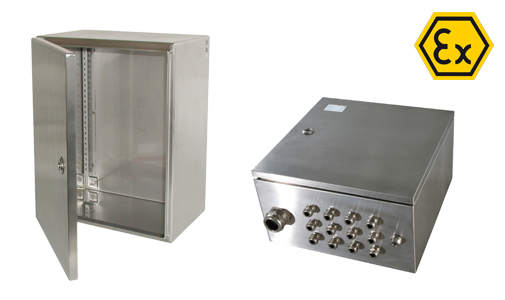

IGS industrial enclosures with hinged lid are manufactured in Material 1.4301/304 or, alternatively, in Material 1.4404/316L, and thus assure extremely good protection in harsh and aggressive environments. The lid takes the form of a door, and is secured by means of an internal hinge.

The door, which is equipped with a double ward lock, thus permits quick and easy opening and closure of the enclosure at any time.

The silicone lid seal used permits service-temperature ranges (with ATEX/IECEX certificate) from -55°C to +135°C. Ex IGS enclosures provide Degree of Protection IP 66 as standard.

The lower enclosure section is prepared for the easy installation of mounting plates or DIN rails. These enclosures provide good EMC screening, which can be improved even further by means of a special “EMC seal”.

Showing all 30 results

Model	Order Number	Length (mm)	Width (mm)	Height (mm)	IP	Material
IGSExB 34010	34.00 22 09	250	200	97	n/a	n/a
IGSExB 34015	34.00 22 15	250	200	157	n/a	n/a
IGSExB 34020	34.00 32 09	250	350	97	n/a	n/a
IGSExB 34025	34.00 33 16	300	300	167	n/a	n/a
IGSExB 34030	34.00 44 16	380	380	167	n/a	n/a
IGSExB 34035	34.00 44 21	380	380	217	n/a	n/a
IGSExB 34040	34.00 53 16	300	500	167	n/a	n/a
IGSExB 34045	34.00 63 16	300	600	167	n/a	n/a
IGSExB 34050	34.00 64 21	380	600	217	n/a	n/a
IGSExB 34055	34.00 99 99	Special size on request	n/a	n/a	n/a	n/a
IGSExe 35010	35.00 22 09	250	200	97	n/a	n/a
IGSExe 35015	35.00 22 15	250	200	157	n/a	n/a
IGSExe 35020	35.00 32 09	250	350	97	n/a	n/a
IGSExe 35025	35.00 33 16	300	300	167	n/a	n/a
IGSExe 35030	35.00 44 16	380	380	167	n/a	n/a
IGSExe 35035	35.00 44 21	380	380	217	n/a	n/a
IGSExe 35040	35.00 53 16	300	500	167	n/a	n/a
IGSExe 35045	35.00 63 16	300	600	167	n/a	n/a
IGSExe 35050	35.00 64 21	380	600	217	n/a	n/a
IGSExe 35055	35.00 99 99	Special size on request	n/a	n/a	n/a	n/a
IGSExi 36010	36.00 22 09	250	200	97	n/a	n/a
IGSExi 36015	36.00 22 15	250	200	157	n/a	n/a
IGSExi 36020	36.00 32 09	250	350	97	n/a	n/a
IGSExi 36025	36.00 33 16	300	300	167	n/a	n/a
IGSExi 36030	36.00 44 16	380	380	167	n/a	n/a
IGSExi 36035	36.00 44 21	380	380	217	n/a	n/a
IGSExi 36040	36.00 53 16	300	500	167	n/a	n/a
IGSExi 36045	36.00 63 16	300	600	167	n/a	n/a
IGSExi 36050	36.00 64 21	380	600	217	n/a	n/a
IGSExi 36055	36.00 99 99	Special size on request	n/a	n/a	n/a	n/a
