Enclosures

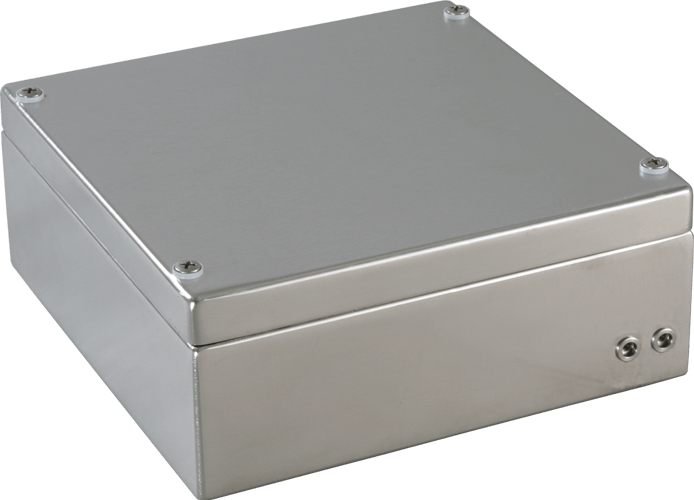

Ex stainless-steel industry enclosures

These Ex stainless-steel enclosures take the form of high-quality enclosure systems featuring conformity to ATEX and the IEC code. They are particularly suitable for use in harsh and aggressive environments, such as

Close to seawater,
In areas in which the greatest purity and cleanness are necessary
and in EMC applications.

A product range in various sizes from 100 x 100 x 61 mm to 200 x 600 x 121 mm is available for this purpose. These Ex stainless-steel enclosures are notable, in addition to their IP 66 degree of protection, for:

tethered lid screws,
large opening for installation of extensions,
welded threaded inserts,
polished surface finish (240 grain)
and integrated fixings for DIN rails and mounting plates.

The enclosure body takes the form of a steel structure with an raised sealing edge on the base. The lid and the base can be screwed together using tethered lid screws in closed threaded inserts.

Showing all 57 results

Model	Order Number	Length (mm)	Width (mm)	Height (mm)	IP	Material
IGExB 34010	34.10 10 06	100	100	61	n/a	n/a
IGExB 34015	34.15 10 06	100	150	61	n/a	n/a
IGExB 34020	34.15 15 08	150	150	81	n/a	n/a
IGExB 34025	34.20 10 06	100	200	61	n/a	n/a
IGExB 34030	34.20 20 08	200	200	81	n/a	n/a
IGExB 34035	34.20 20 12	200	200	121	n/a	n/a
IGExB 34040	34.30 15 08	150	300	81	n/a	n/a
IGExB 34045	34.30 20 08	200	300	81	n/a	n/a
IGExB 34050	34.30 20 12	200	300	121	n/a	n/a
IGExB 34055	34.30 30 12	300	300	121	n/a	n/a
IGExB 34060	34.30 30 16	300	300	161	n/a	n/a
IGExB 34065	34.38 38 16	380	380	161	n/a	n/a
IGExB 34070	34.40 15 08	150	400	81	n/a	n/a
IGExB 34075	34.40 20 12	200	400	121	n/a	n/a
IGExB 34080	34.40 30 16	300	400	161	n/a	n/a
IGExB 34085	34.50 30 16	300	500	161	n/a	n/a
IGExB 34090	34.50 40 16	400	500	161	n/a	n/a
IGExB 34095	34.60 20 12	200	600	121	n/a	n/a
IGExB 34100	34.99 99 99	Special size on request	n/a	n/a	n/a	n/a
IGExe 35010	35.10 10 06	100	100	61	n/a	n/a
IGExe 35015	35.15 10 06	100	150	61	n/a	n/a
IGExe 35020	35.15 15 08	150	150	81	n/a	n/a
IGExe 35025	35.20 10 06	100	200	61	n/a	n/a
IGExe 35030	35.20 20 08	200	200	81	n/a	n/a
IGExe 35035	35.20 20 12	200	200	121	n/a	n/a
IGExe 35040	35.30 15 08	150	300	81	n/a	n/a
IGExe 35045	35.30 20 08	200	300	81	n/a	n/a
IGExe 35050	35.30 20 12	200	300	121	n/a	n/a
IGExe 35055	35.30 30 12	300	300	121	n/a	n/a
IGExe 35060	35.30 30 16	300	300	161	n/a	n/a
IGExe 35065	35.38 38 16	380	380	161	n/a	n/a
IGExe 35070	35.40 15 08	150	400	81	n/a	n/a
IGExe 35075	35.40 20 12	200	400	121	n/a	n/a
IGExe 35080	35.40 30 16	300	400	161	n/a	n/a
IGExe 35085	35.50 30 16	300	500	161	n/a	n/a
IGExe 35090	35.50 40 16	400	500	161	n/a	n/a
IGExe 35095	35.60 20 12	200	600	121	n/a	n/a
IGExe 35999	35.99 99 99	Special size on request	n/a	n/a	n/a	n/a
IGExi 36010	36.10 10 06	100	100	61	n/a	n/a
IGExi 36015	36.15 10 06	100	150	61	n/a	n/a
IGExi 36020	36.15 15 08	150	150	81	n/a	n/a
IGExi 36025	36.20 10 06	100	200	61	n/a	n/a
IGExi 36030	36.20 20 08	200	200	81	n/a	n/a
IGExi 36035	36.20 20 12	200	200	121	n/a	n/a
IGExi 36040	36.30 15 08	150	300	81	n/a	n/a
IGExi 36045	36.30 20 08	200	300	81	n/a	n/a
IGExi 36050	36.30 20 12	200	300	121	n/a	n/a
IGExi 36055	36.30 30 12	300	300	121	n/a	n/a
IGExi 36060	36.30 30 16	300	300	161	n/a	n/a
IGExi 36065	36.38 38 16	380	380	161	n/a	n/a
IGExi 36070	36.40 15 08	150	400	81	n/a	n/a
IGExi 36075	36.40 20 12	200	400	121	n/a	n/a
IGExi 36080	36.40 30 16	300	400	161	n/a	n/a
IGExi 36085	36.50 30 16	300	500	161	n/a	n/a
IGExi 36090	36.50 40 16	400	500	161	n/a	n/a
IGExi 36095	36.60 20 12	200	600	121	n/a	n/a
IGExi 36999	36.99 99 99	Special size on request	n/a	n/a	n/a	n/a
