Components

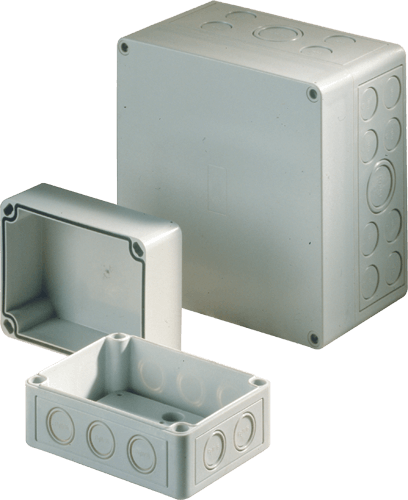

The ECO compact enclosure
The basis is provided by a large range of different enclosure sizes with up to four different lid heights. The PCI series of enclosures features PG knock-outs and the ECO series of enclosures has smooth side walls. ECO enclosures are optionally available with a coloured or with a transparent lid.
The complete range of accessories and these enclosures’ user-friendly design permit the use of these enclosure series in practically all sectors of industry.
Applications:
- Machine or control enclosures
- Terminal or connection enclosures
Showing all 15 results
| Image | Model | Order Number | Length (mm) | Width (mm) | Height (mm) | IP | Material |
|---|---|---|---|---|---|---|---|
 |
PCI 01-6M | 60.07 07 15 | 65 | 65 | 57 | n/a | n/a |
|
PCI 02-6M | 60.07 09 15 | 65 | 94 | 57 | n/a | n/a |
|
PCI 03-6M | 60.09 09 15 | 94 | 94 | 57 | n/a | n/a |
|
PCI 05-9M | 60.11 11 15 | 110 | 110 | 90 | n/a | n/a |
|
PCI 06-6M | 60.09 13 15 | 94 | 130 | 57 | n/a | n/a |
|
PCI 06-7M | 60.13 13 15 | 130 | 130 | 75 | n/a | n/a |
|
PCI 07-6M | 60.09 18 15 | 94 | 180 | 57 | n/a | n/a |
|
PCI 08-11M | 60.11 18 25 | 110 | 180 | 110 | n/a | n/a |
|
PCI 08-9M | 60.11 18 15 | 110 | 180 | 90 | n/a | n/a |
|
PCI 09-11M | 60.18 18 25 | 180 | 182 | 111 | n/a | n/a |
|
PCI 09-9M | 60.18 18 15 | 180 | 182 | 90 | n/a | n/a |
|
PCI 10-11M | 60.18 25 25 | 180 | 254 | 111 | n/a | n/a |
|
PCI 10-6M | 60.18 25 05 | 180 | 254 | 63 | n/a | n/a |
|
PCI 10-9M | 60.18 25 15 | 180 | 254 | 90 | n/a | n/a |
|
PCI 11-11M | 60.25 36 15 | 254 | 361 | 111 | n/a | n/a |
