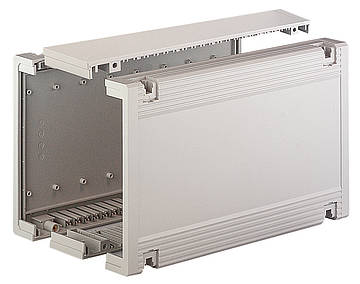

AB 02609 Extension set, plain, with air vents (L), 3 HP / 9 HP
Extension set, plain, with air vents (L), 3 HP / 9 HP
AB 02609
Order No:
56026000 Manufacturer No: 56026000
Technical Drawings
56026000_AB-02609-G.dxf
56026000_AB-02609-G.dxf
(504.3 KB)
56026000_AB-02609.pdf
56026000_AB-02609.pdf
(479.0 KB)
56026000_AB-02609.dxf
56026000_AB-02609.dxf
(5.5 MB)
Product Information
Ultramas_GB.pdf
(368.7 KB)
Product Specs
Color of enclosure group
Light grey
Enclosure Material
ABS; for details see Technical Information
Scope of delivery
2 extension units, fitting material
Note
** AB 02003 can also be used for UM 52011(L), but please order 4 SHR-Z-M3x40 screws, 59005541, for each extension set.
Front panel FP(K) 50014 available on request.
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
