ABPH 600-0100 ABPH 600
ABPH 600
ABPH 600-0100
Order No:
84066100
Dimensions
57 x 32 x 100 mmTechnical Drawings
84066100_ABPH-600-0100-G.dxf
84066100_ABPH-600-0100-G.dxf
(279.5 KB)
84066100_ABPH-600-0100.pdf
84066100_ABPH-600-0100.pdf
(186.5 KB)
84066100_ABPH-600-0100.dxf
84066100_ABPH-600-0100.dxf
(1.3 MB)
Product Information
Alubos_GB.pdf
(2.7 MB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 65
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated; diecast lid: GB Al Si 12, powder-coated; seal: TPE; for details see Technical Information
Scope of delivery

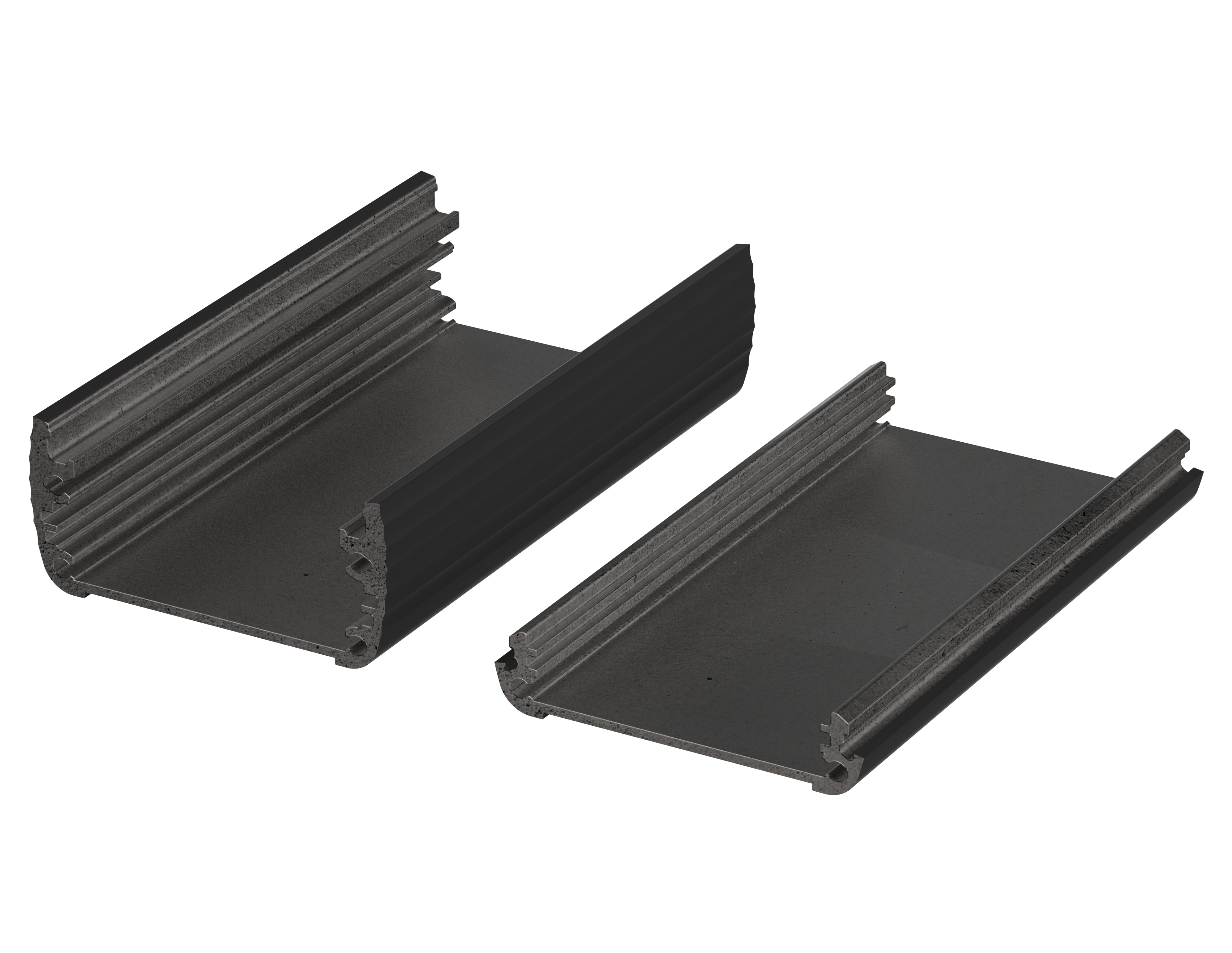

Enclosure profile, two parts including profile seal
Note
C = profile length, special lengths on request.
Assembly Instructions
Material Data
AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
