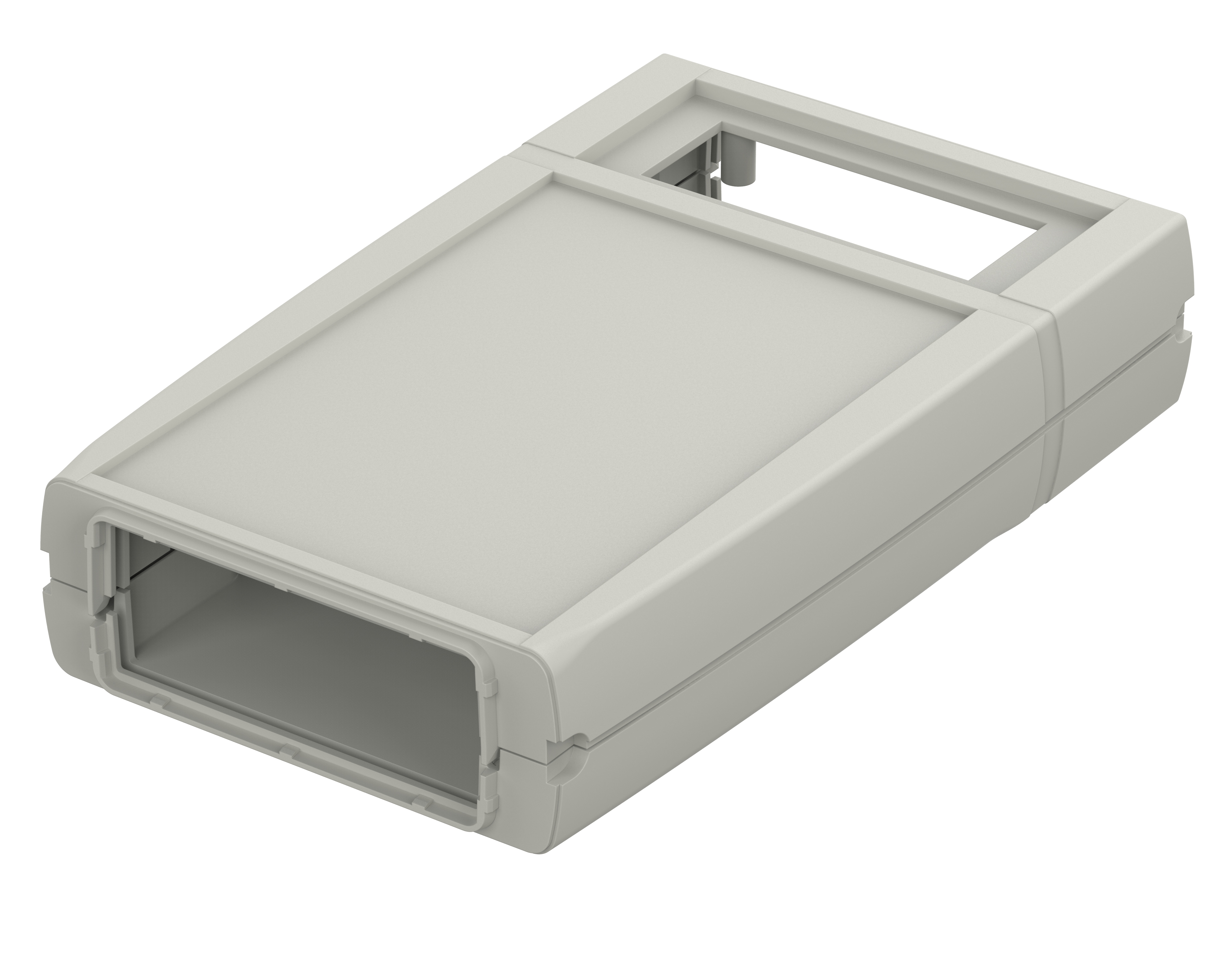

ART 555 DIS Enclosure with display opening and membrane keypad area
Enclosure with display opening and membrane keypad area
ART 555 DIS
Order No:
34155512 Manufacturer No: 34155512
Dimensions
165 x 92 x 30 mmTechnical Drawings
34155512_ART-555-DIS-G.dxf
34155512_ART-555-DIS-G.dxf
(920.2 KB)
34155512_ART-555-DIS.pdf
34155512_ART-555-DIS.pdf
(235.6 KB)
34155512_ART-555-DIS.dxf
34155512_ART-555-DIS.dxf
(3.1 MB)
Product Information
Bopla_Arteb_GB.pdf
(686.5 KB)
Product Specs
Color of enclosure group
Agate grey
Protection class
IP 40, 65
Enclosure Material
Enclosure and caps made of ABS, seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base including fitted, tool-operated snap locks for caps. Versions BE… with additional battery compartment BE 30 or BE 60
PU = 5 pieces
Note
Please order caps and display screens separately.
Assembly Instructions
Material Data
ABS MMIA Polyman
ABS Cycolac GPM5500S
ABS Elix H605
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
