ART 555 KO-7038 Caps for ART 555

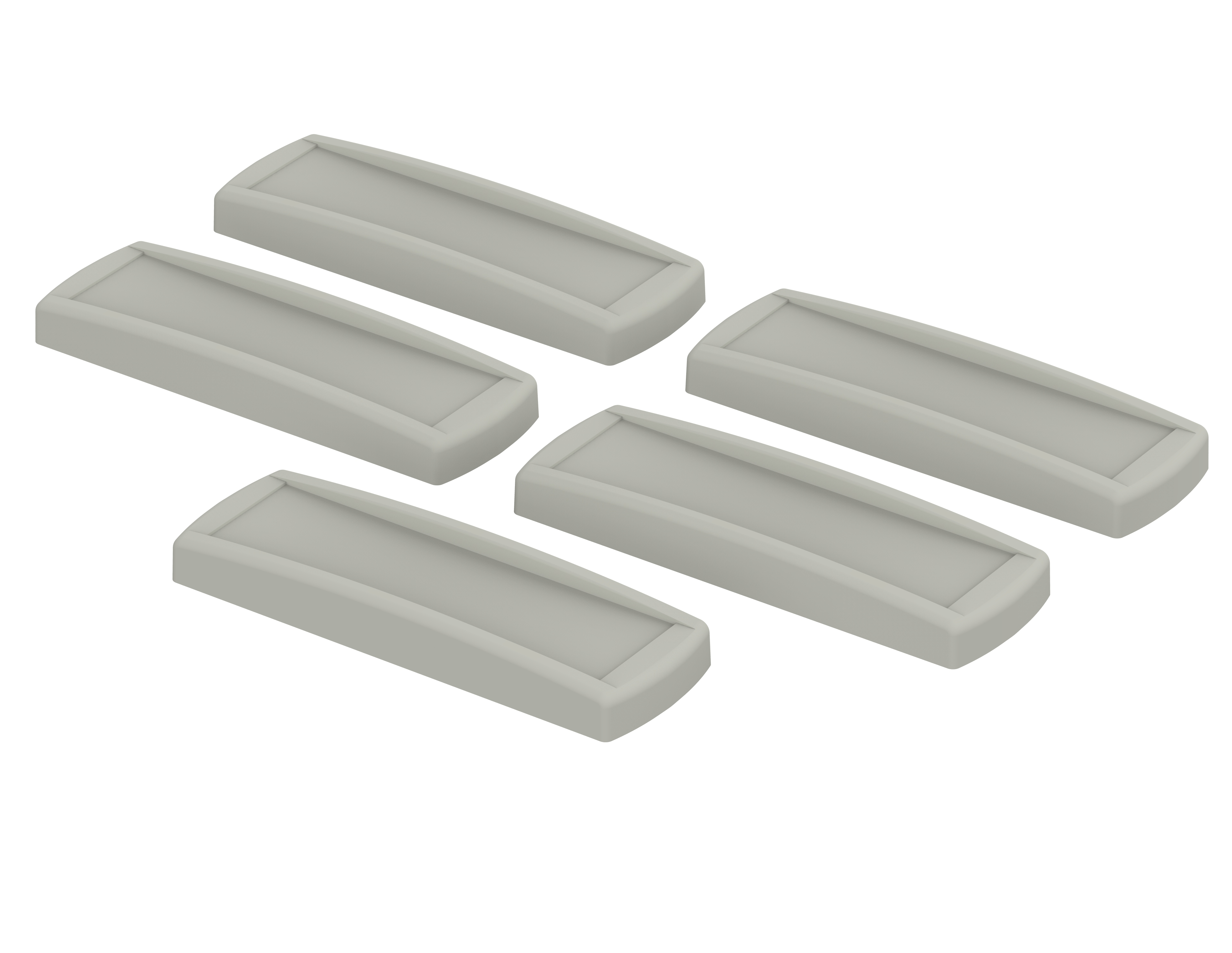

Caps for ART 555
ART 555 KO-7038
Order No:
34155521 Manufacturer No: 34155521
Technical Drawings
34155521_ART-555-KO-7038-G.dxf
34155521_ART-555-KO-7038-G.dxf
(266.9 KB)
34155521_ART-555-KO-7038.pdf
34155521_ART-555-KO-7038.pdf
(30.6 KB)
34155521_ART-555-KO-7038.dxf
34155521_ART-555-KO-7038.dxf
(355.1 KB)
Product Information
Bopla_Arteb_GB.pdf
(686.5 KB)
Product Specs
Color of enclosure group
Agate grey
Enclosure Material
Enclosure and caps made of ABS, seal made of TPE; for details see Technical Information
Scope of delivery
PU = 5 pieces
Note
KO = cap at top, KU = cap at bottom
Assembly Instructions
Material Data
ABS MMIA Polyman (KO / KU (Agate grey, flame red, black))
ABS Cycolac GPM5500S (KO / KU (Agate grey, flame red, black))
ABS Elix H605 (KO / KU (Agate grey, flame red, black))
SAN Luran368 (KO-IR (infrared))
ABS MMIA Polyman (KO / KU (light green, sulphur yellow, dust grey, sky blue))
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
