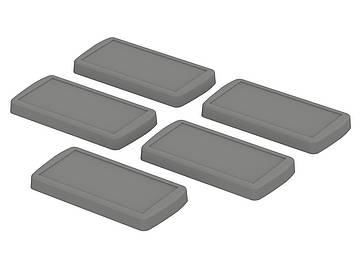

ART 655 KU-7037 Caps for ART 665
Caps for ART 665
ART 655 KU-7037
Order No:
34165534 Manufacturer No: 34165534
Technical Drawings
34165534_ART-655-KU-7037-G.dxf
34165534_ART-655-KU-7037-G.dxf
(267.5 KB)
34165534_ART-655-KU-7037.pdf
34165534_ART-655-KU-7037.pdf
(30.4 KB)
34165534_ART-655-KU-7037.dxf
34165534_ART-655-KU-7037.dxf
(352.5 KB)
Product Information
Bopla_Arteb_GB.pdf
(686.5 KB)
Product Specs
Color of enclosure group
Dust grey
Enclosure Material
Enclosure and caps made of ABS, seal made of TPE; for details see Technical Information
Scope of delivery
PU = 5 pieces
Note
KO = cap at top, KU = cap at bottom
Assembly Instructions
Material Data
ABS MMIA Polyman (KO / KU (Agate grey, flame red, black))
ABS Cycolac GPM5500S (KO / KU (Agate grey, flame red, black))
ABS Elix H605 (KO / KU (Agate grey, flame red, black))
SAN Luran368 (KO-IR (infrared))
ABS MMIA Polyman (KO / KU (light green, sulphur yellow, dust grey, sky blue))
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
