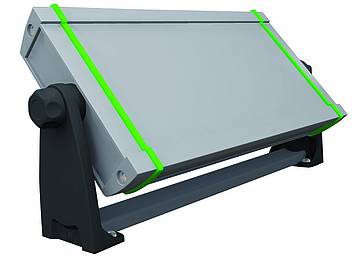

AS 0100-7024 UWB Universal wall fittings
Universal wall fittings
AS 0100-7024 UWB
Order No:
94810024*
Technical Drawings
94810024_AS-0100-7024-UWB.pdf
94810024_AS-0100-7024-UWB.pdf
(221.2 KB)
94810024_AS-0100-7024-UWB.dxf
94810024_AS-0100-7024-UWB.dxf
(4.1 MB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Graphite grey
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Profile (aluminium), 2 PA6 side flanges (complete), screws, covers
Note
Special lengths on request.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
