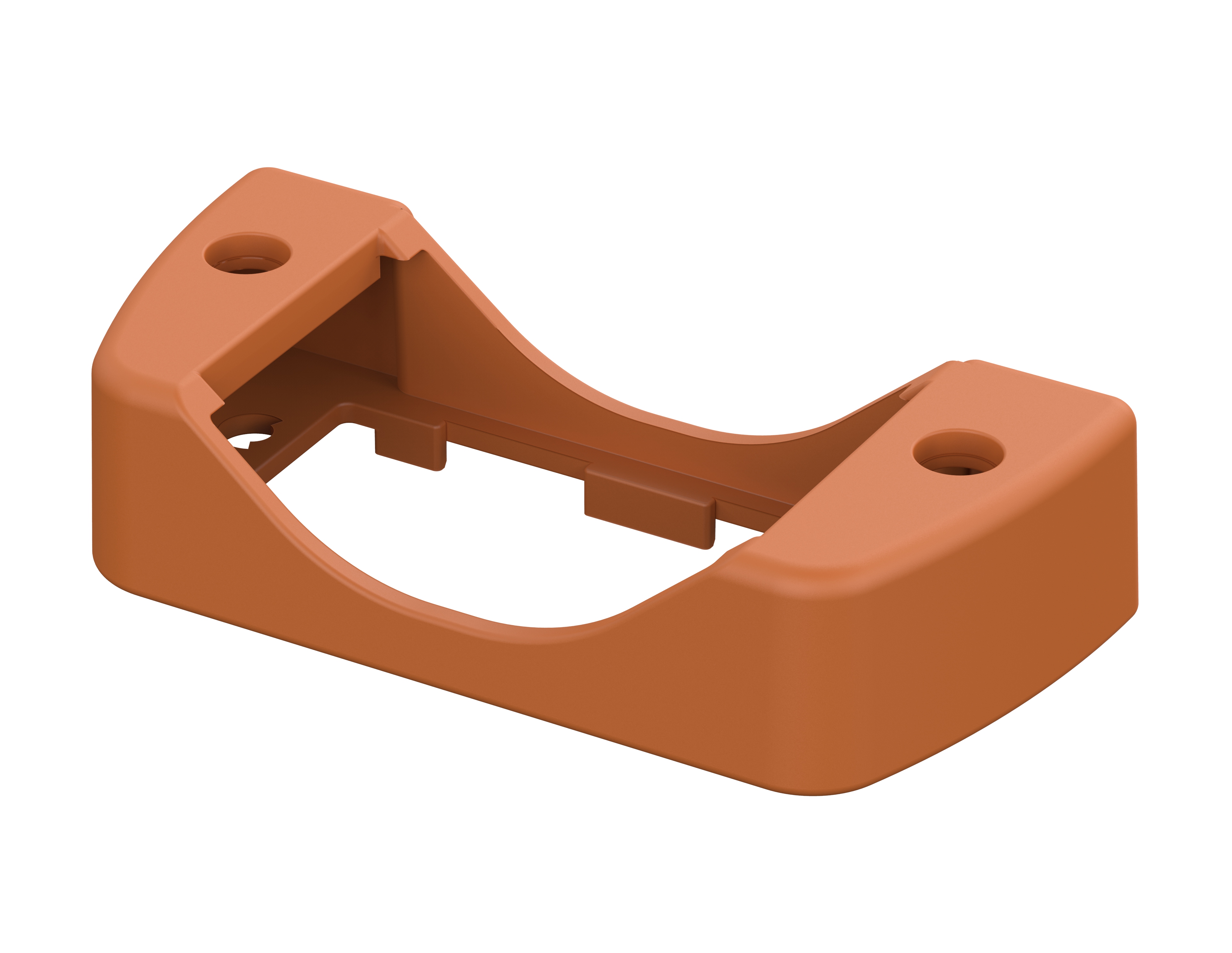

AS 830 DI-S Impact protection seals, orange
Impact protection seals, orange
AS 830 DI-S
Order No:
94516200 Manufacturer No: 94516200
Technical Drawings
94516200_AS-830-DI-S-orange-G.dxf
94516200_AS-830-DI-S-orange-G.dxf
(1.0 MB)
94516200_AS-830-DI-S.pdf
94516200_AS-830-DI-S.pdf
(173.5 KB)
94516200_AS-830-DI-S.dxf
94516200_AS-830-DI-S.dxf
(2.1 MB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
1 impact protection seal, graphite grey screw covers
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
