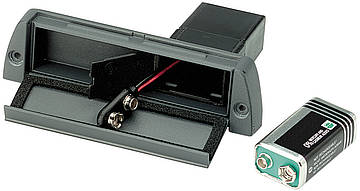

AS-BE-4MN Battery compartments
Battery compartments
AS-BE-4MN
Order No:
94834000
Technical Drawings
94834000_AS-BE-4-MN-in-ASM-1030-SAL-G.dxf
94834000_AS-BE-4-MN-in-ASM-1030-SAL-G.dxf
(1.1 MB)
94834000_AS-BE-4-MN.pdf
94834000_AS-BE-4-MN.pdf
(130.2 KB)
94834000_AS-BE-4-MN.dxf
94834000_AS-BE-4-MN.dxf
(3.2 MB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
5 battery compartments
Note
Processing of the ASM mounting lid is required if battery compartments are to be fitted.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
