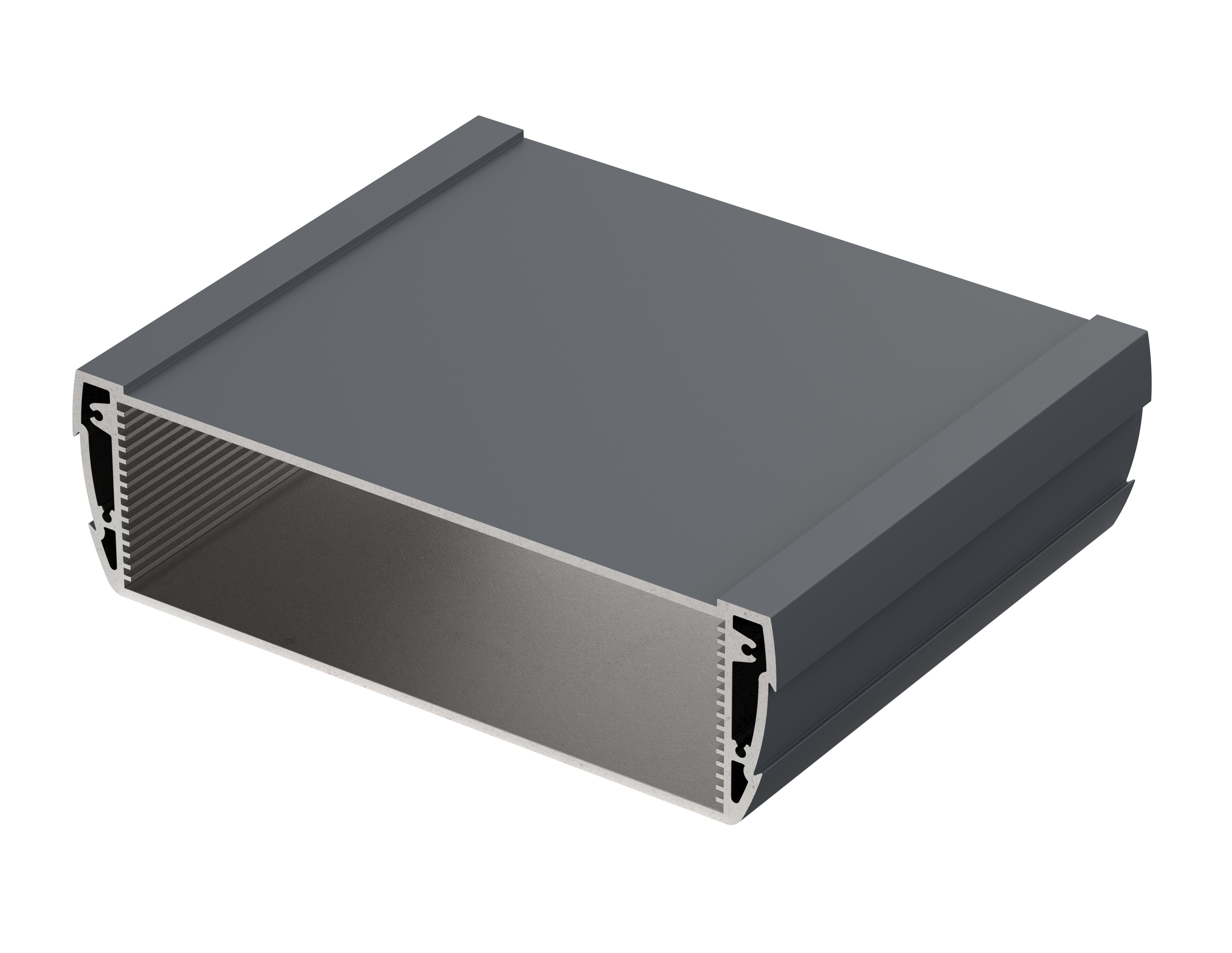

ASP 1540-0150 7024 Enclosure profiles, closed
Enclosure profiles, closed
ASP 1540-0150 7024
Order No:
94152150
Dimensions
154 x 44 x 150 mmTechnical Drawings
94152150_ASP-1540-0150-7024-G.dxf
94152150_ASP-1540-0150-7024-G.dxf
(570.3 KB)
94152150_ASP-1540-0150-7024.pdf
94152150_ASP-1540-0150-7024.pdf
(142.8 KB)
94152150_ASP-1540-0150-7024.dxf
94152150_ASP-1540-0150-7024.dxf
(858.0 KB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 66, 68 – 1,2m (2 hours)
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile
Note
C = profile length, special lengths on request.
Material Data
AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
