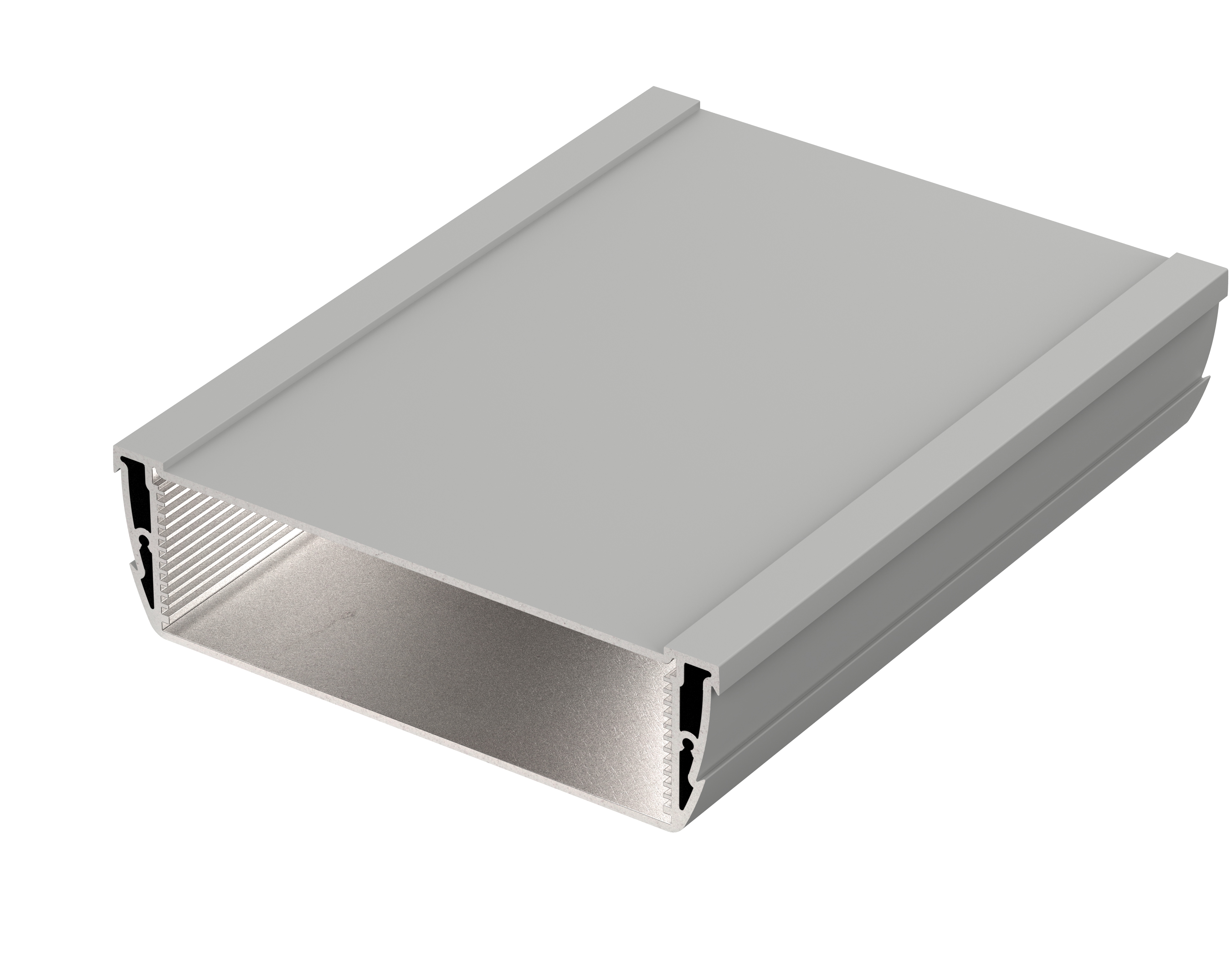

ASP 1540-0200 9006 Enclosure profiles, closed
Enclosure profiles, closed
ASP 1540-0200 9006
Order No:
94151200
Dimensions
154 x 44 x 200 mmTechnical Drawings
94151200_ASP-1540-0200-9006-G.dxf
94151200_ASP-1540-0200-9006-G.dxf
(570.3 KB)
94151200_ASP-1540-0200-9006.pdf
94151200_ASP-1540-0200-9006.pdf
(142.8 KB)
94151200_ASP-1540-0200-9006.dxf
94151200_ASP-1540-0200-9006.dxf
(858.0 KB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Silver, similar to RAL 9006
Protection class
IP 66, 68 – 1,2m (2 hours)
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile
Note
C = profile length, special lengths on request.
Material Data
AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))
