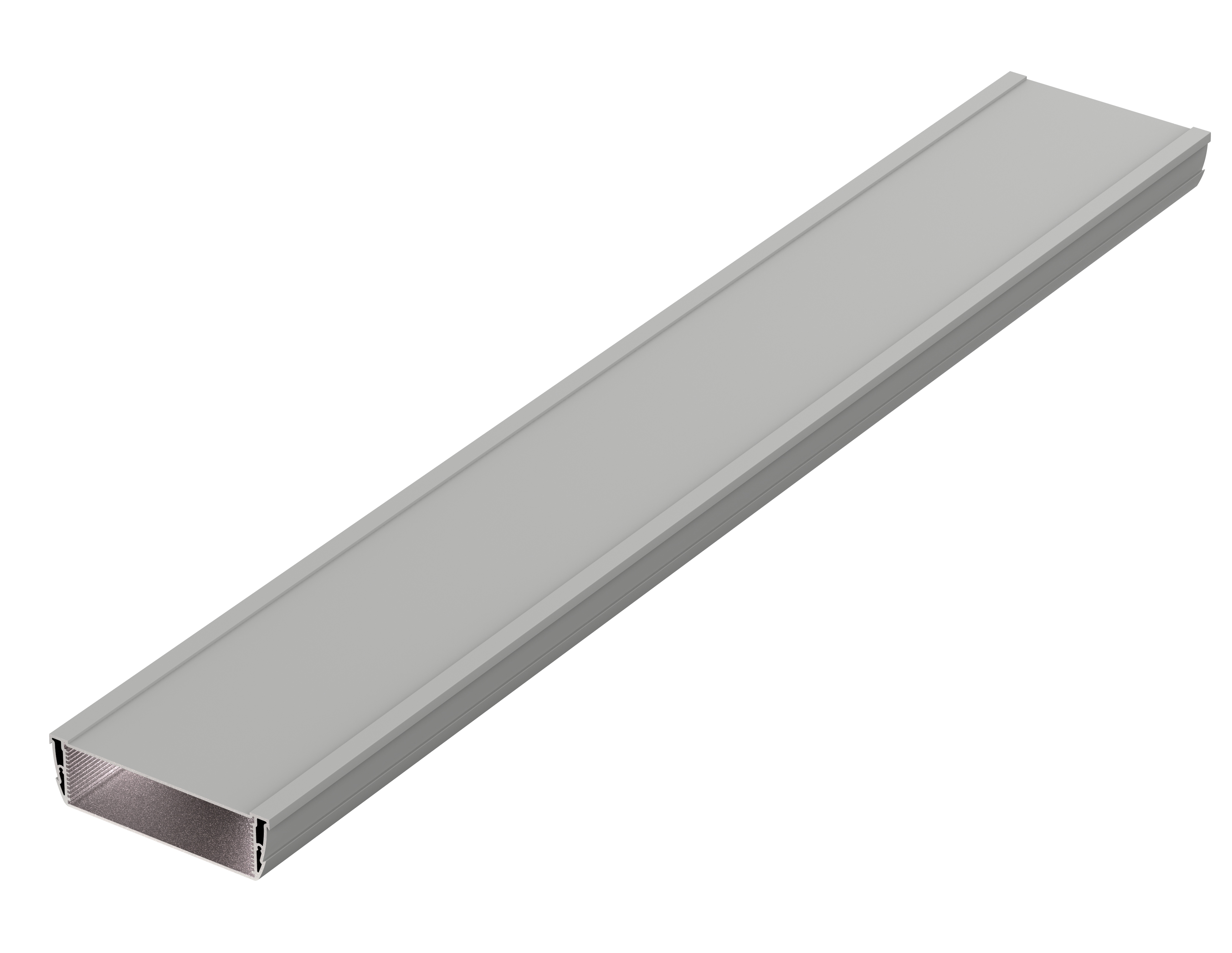

ASP 1540-1000 9006 Enclosure profiles, closed
Enclosure profiles, closed
ASP 1540-1000 9006
Order No:
94151000
Dimensions
154 x 44 x 1000 mmTechnical Drawings
94151000_ASP-1540-1000-9006-G.dxf
94151000_ASP-1540-1000-9006-G.dxf
(570.3 KB)
94151000_ASP-1540-1000-9006.pdf
94151000_ASP-1540-1000-9006.pdf
(142.8 KB)
94151000_ASP-1540-1000-9006.dxf
94151000_ASP-1540-1000-9006.dxf
(858.0 KB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Silver, similar to RAL 9006
Protection class
IP 66, 68 – 1,2m (2 hours)
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile
Note
C = profile length, special lengths on request.
Material Data
AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
