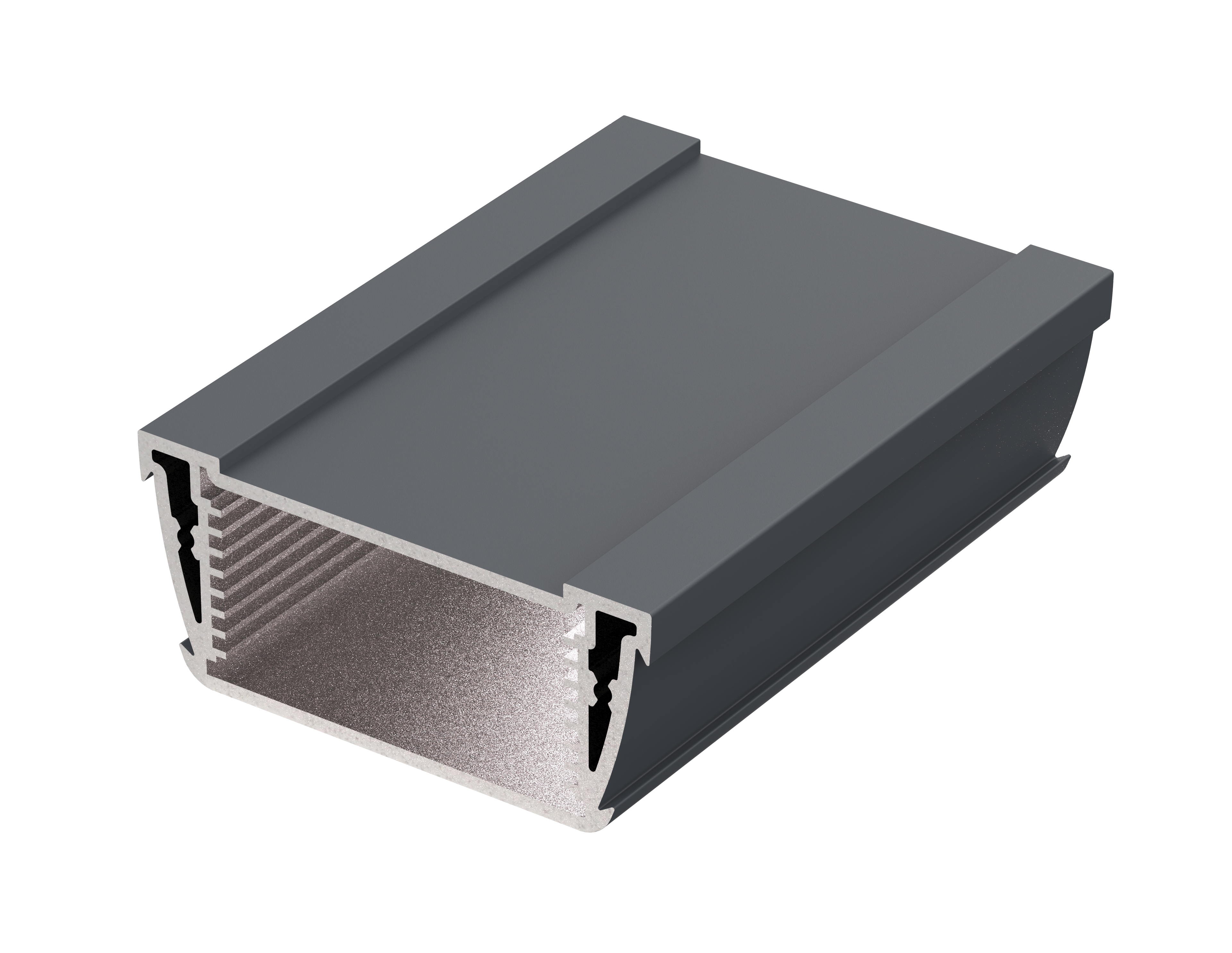

ASP 830-0100 7024 Enclosure profiles, closed

Enclosure profiles, closed

ASP 830-0100 7024

Order No: 94112100
Manufacturer No: 94112100
74  x  32.8  x  100 mm
Product Drawing
Technical Drawings
Product Information

Product Specs

Color of enclosure group

Graphite grey, similar to RAL 7024

Protection class

IP 66, 68  –  1,2m (2 hours)

Enclosure Material

Extruded profiles: Al Mg Si 0.5 powder-coated;

Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;

Seal: TPE;

for details see Technical Information

Scope of delivery

Enclosure profile


C = profile length, special lengths on request.


Material Data

AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))

Do you have questions about this product?


To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
