ASPU 1230-1000 7024 Enclosure profiles, open on one side

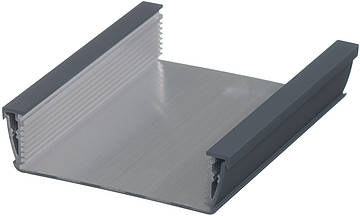

Enclosure profiles, open on one side
ASPU 1230-1000 7024
Order No:
94332000
Dimensions
121 x 32.8 x 1000 mmTechnical Drawings
94332000_ASPU-1230-1000-7024-G.dxf
94332000_ASPU-1230-1000-7024-G.dxf
(360.1 KB)
94332000_ASPU-1230-1000-7024.pdf
94332000_ASPU-1230-1000-7024.pdf
(147.8 KB)
94332000_ASPU-1230-1000-7024.dxf
94332000_ASPU-1230-1000-7024.dxf
(749.7 KB)
Product Information
Alustyle_GB.pdf
(2.2 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 40
Enclosure Material
Extruded profiles: Al Mg Si 0.5 powder-coated;
Diecast lid: zinc alloy Z410 / aluminium GD Al Si 12 (ASD 1540), powder-coated;
Seal: TPE;
for details see Technical Information
Scope of delivery
Enclosure profile
Note
C = profile length, special lengths on request.
Material Data
AluProfil Legierung (Profile material)
DB Beschichtung Brillux 5904 (Powder coating (RAL 7024))
DB Beschichtung Brillux 5911 (Powder coating (RAL 9006))
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
