Home//Products//Product Lines//Bopla//Bocube Alu//Enclosure with smooth lid, graphite grey, hinged//Bocube Alu | Enclosure with smooth lid, graphite grey, hinged//Enclosure with smooth lid, graphite grey, covers anodized, hinged, with silicone lid seal

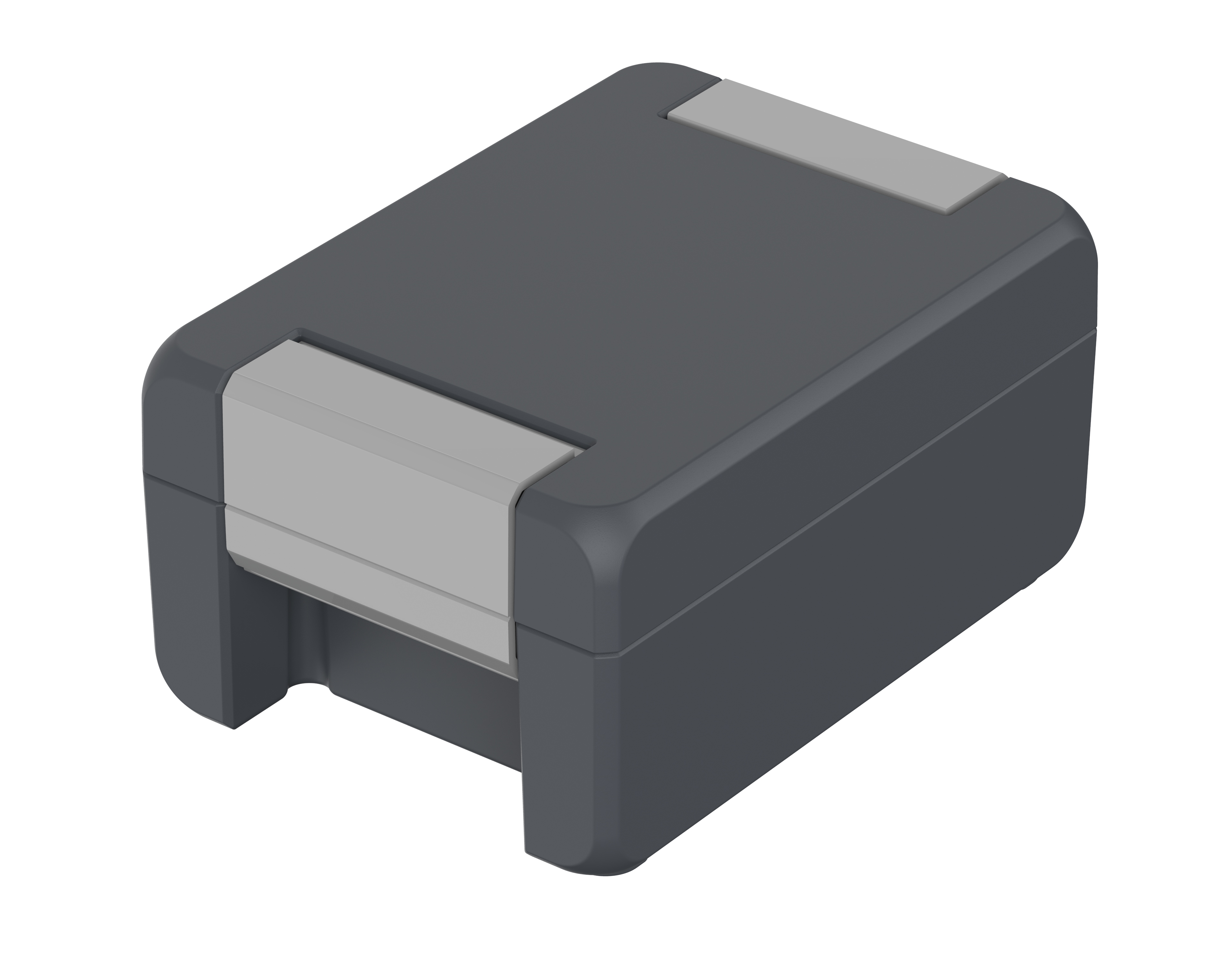

Enclosure with smooth lid, graphite grey, covers anodized, hinged, with silicone lid seal
BA 100806 SIL-7024

Manufacturer No 00112124.SIL*
Material cast alloy
IP 66
Dimensions 121  x  86  x  60 mm
Product Drawing
Technical Drawings
    CAD Files
    Assemblies

      Product Specs

      A

      121

      B

      86

      C

      60

      a1

      -

      a2

      77,5

      b1

      -

      b2

      77,5

      c1

      53,5

      Enclosure material

      cast alloy

      Artikel_IP_Nummer

      66

      Artikel_Farbe

      Graphite grey, similar to RAL 7024

      Artikel_IK_Nummer

      07,08

      Assembly Instructions

      Bocube-Alu_BA_Gehaeusemontage_Enclosure_Assembly_00911501.pdf (1.5 MB)

      Material Data

      AlSi12 Legierung (Cast material)
      AluProfil Legierung (Profile material)
      DB Beschichtung Brillux 5903 (Powder coating)
