BCD 160 OT-F-7024 Screw-on front lid with membrane keypad area
Screw-on front lid with membrane keypad area
BCD 160 OT-F-7024
Order No:
20161324 Manufacturer No: 20161324
Dimensions
199 x 177.85 x 19 mmTechnical Drawings
20161324_BCD-160-OT-F-7024-G.dxf
20161324_BCD-160-OT-F-7024-G.dxf
(825.0 KB)
20161324_BCD-160-OT-F-7024.pdf
20161324_BCD-160-OT-F-7024.pdf
(70.4 KB)
20161324_BCD-160-OT-F-7024.dxf
20161324_BCD-160-OT-F-7024.dxf
(936.6 KB)
Product Information
Bocard_GB.pdf
(3.1 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 65
Enclosure Material
ABS, PC; seal: CR; UL 94 V0 types on request;
CR or PU seal, foamed
for details see Technical Information.

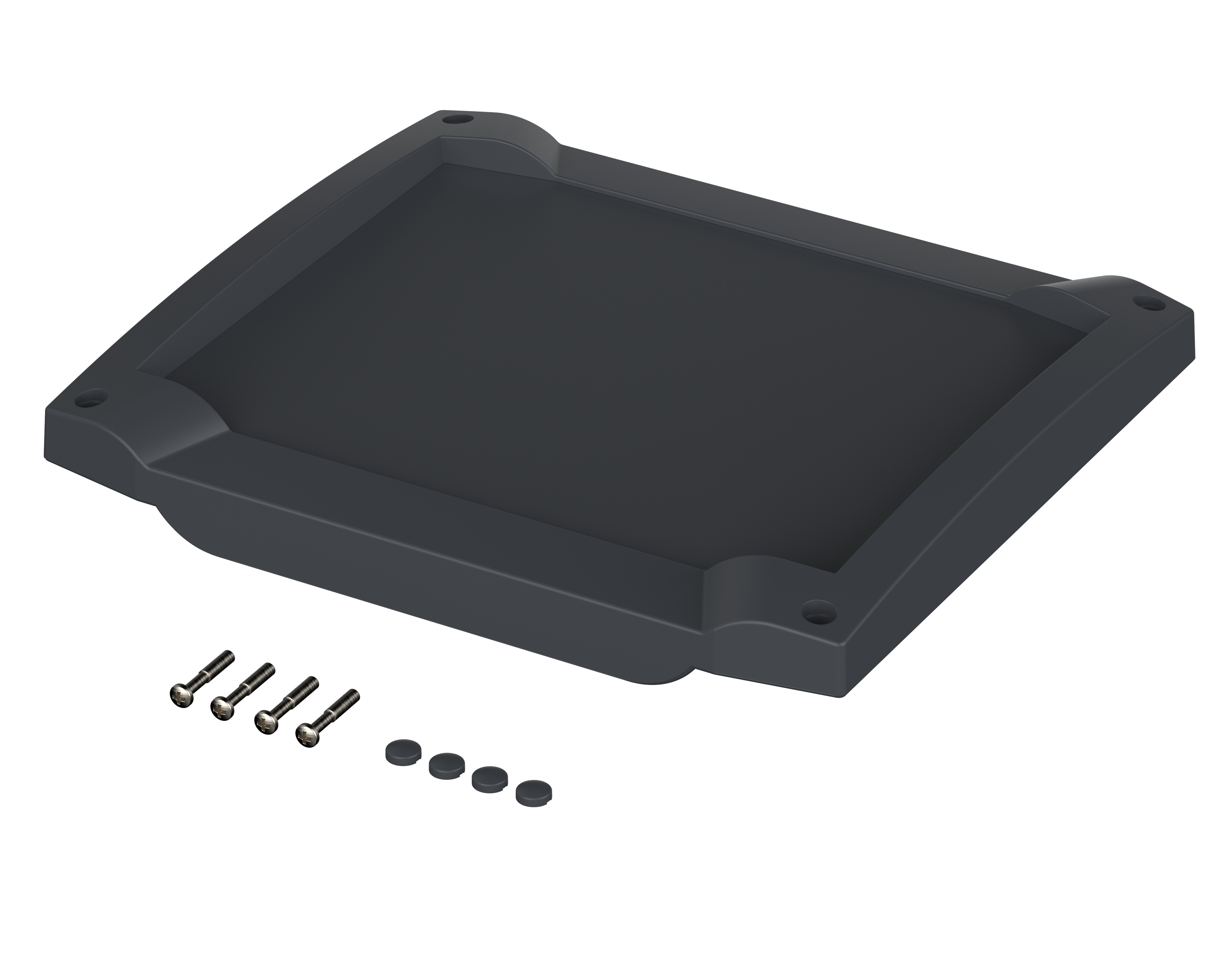

Scope of delivery
1 front lid, screws, screw covers
Assembly Instructions
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
