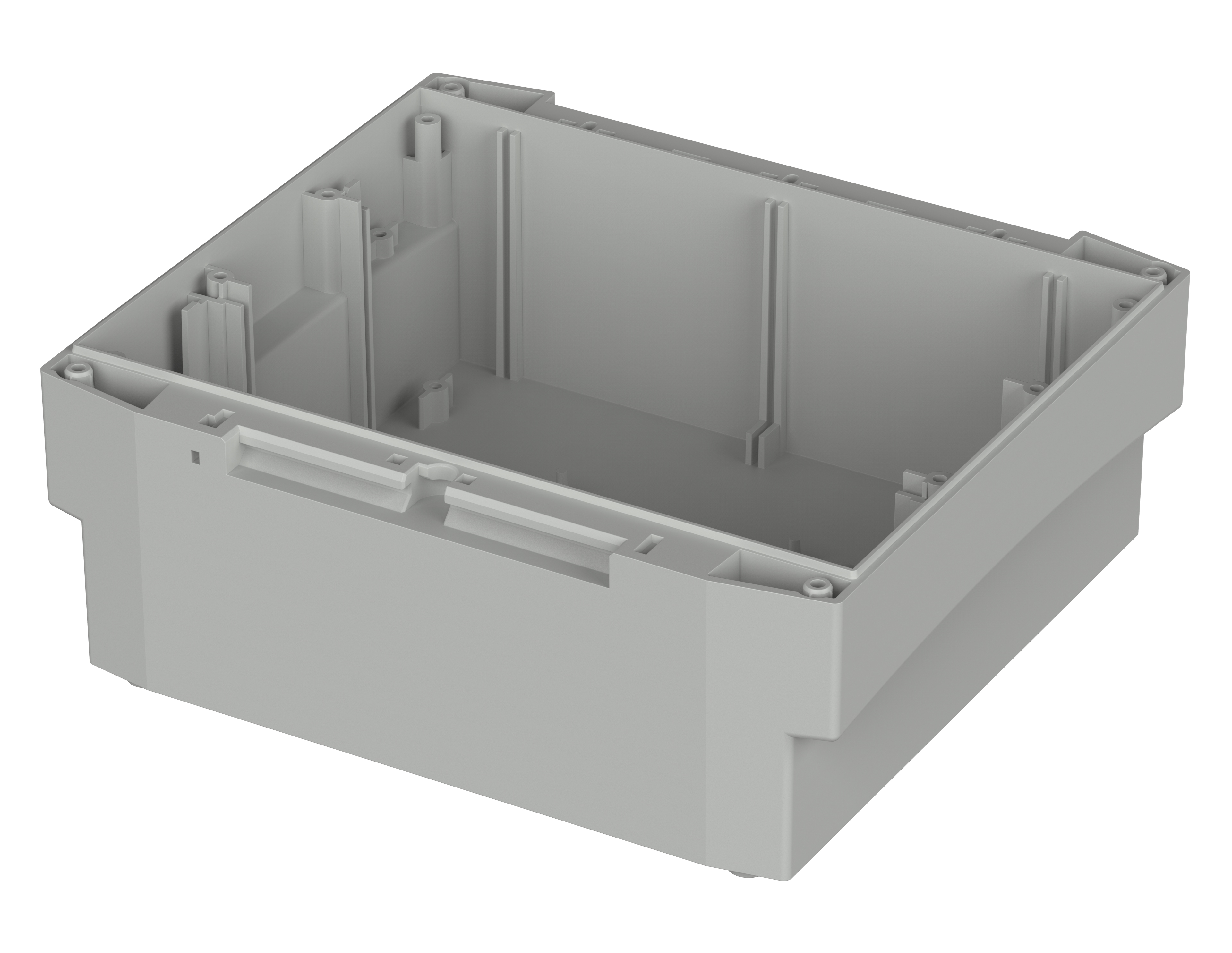

BCD 160 UT-7035 Base, high
Base, high
BCD 160 UT-7035
Order No:
20160135 Manufacturer No: 20160135
Dimensions
195 x 173 x 70 mmTechnical Drawings
20160135_BCD-160-UT-7035-G.dxf
20160135_BCD-160-UT-7035-G.dxf
(940.4 KB)
20160135_BCD-160-UT-7035.pdf
20160135_BCD-160-UT-7035.pdf
(101.8 KB)
20160135_BCD-160-UT-7035.dxf
20160135_BCD-160-UT-7035.dxf
(1.1 MB)
Product Information
Bocard_GB.pdf
(3.1 MB)
Product Specs
Color of enclosure group
Light grey, similar to RAL 7035
Protection class
IP 65
Enclosure Material
ABS, PC; seal: CR; UL 94 V0 types on request;
CR or PU seal, foamed
for details see Technical Information.
Scope of delivery
1 Base, high
Assembly Instructions
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
