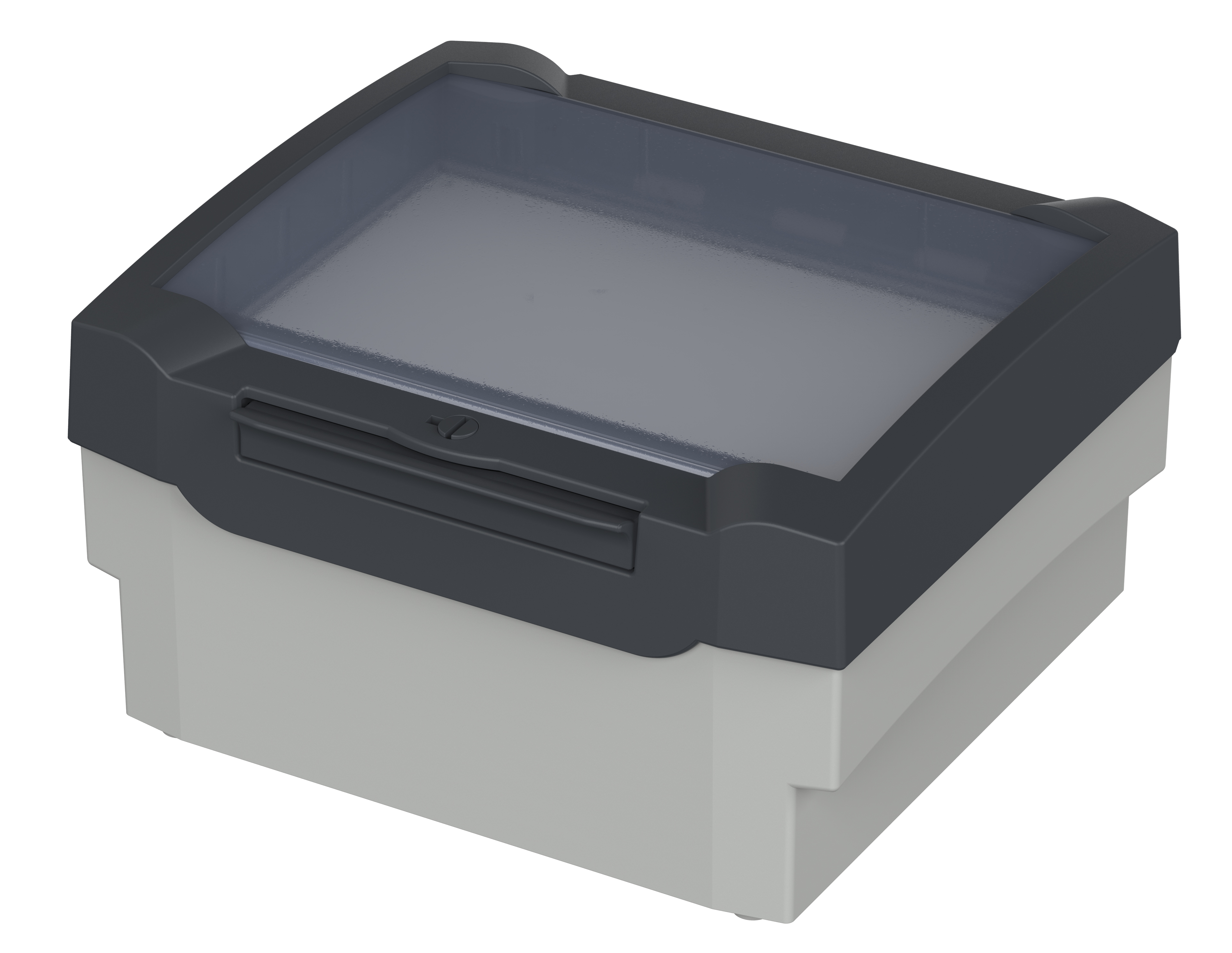

High enclosure, with crystal-clear hinged lid, for 1 terminal compartment, IP 66 / IP 68 – 1.2m (2 hrs.)

Model BCD_165_SET_03-7024
Manufacturer No 20172403.S
199 x  179 x  106.5 mm
Material ABS (acrylonitrile-butadiene-styrene)
IP Rating 66,68
Product Drawing
Technical Drawings
    CAD Files
    Assemblies

      Product Specs

      Artikel SAP Abmessungen

      200 X 193 X 120

      Artikel SAP Basismengeneinheit

      ST

      Artikel SAP erfasst am

      10.11.2004

      Artikel SAP geändert am

      05.05.2011

      SAP Löschvormerkung

      Artikel SAP Min Auftragsmenge Inland

      0,000

      Artikel SAP Minimale Auftragsmenge Export

      0,000

      Artikel SAP Verkaufs ME Export

      Artikel SAP Verkaufs ME Inland

      Artikel SAP Warengruppe

      20

      Artikel Breite

      199

      Artikel Höhe

      106,5

      Artikel Länge

      179

      A

      199

      B

      179

      C

      106,5

      Enclosure material

      ABS (acrylonitrile-butadiene-styrene)

      Artikel Material 2

      polycarbonate

      Artikel Di Material 2

      CR (chloroprene rubber)

      Italienisch ist Englisch

      0

      Artikel_IP_Nummer

      66,68

      NEMA

      3

      Artikel_Farbe

      Artikel_IP_Nummer_ETIM

      68

      Assembly Instructions

      Bocard_BCD_Gehaeusemontage_Zubehoer_Enclosure_Assembly_Accessories_20008010.pdf (455.0 KB)
      Bocard_BCD-310-400_Gehaeusemontage_Wandmontage_Enclosure_Assembly_Wall_Assembly_20008014.pdf (282.1 KB)

      Material Data

      ABS MMIA Polyman (Enclosure)
      ABS Cycolac GPM5500S (Enclosure)
      ABS Elix H605 (Enclosure)
