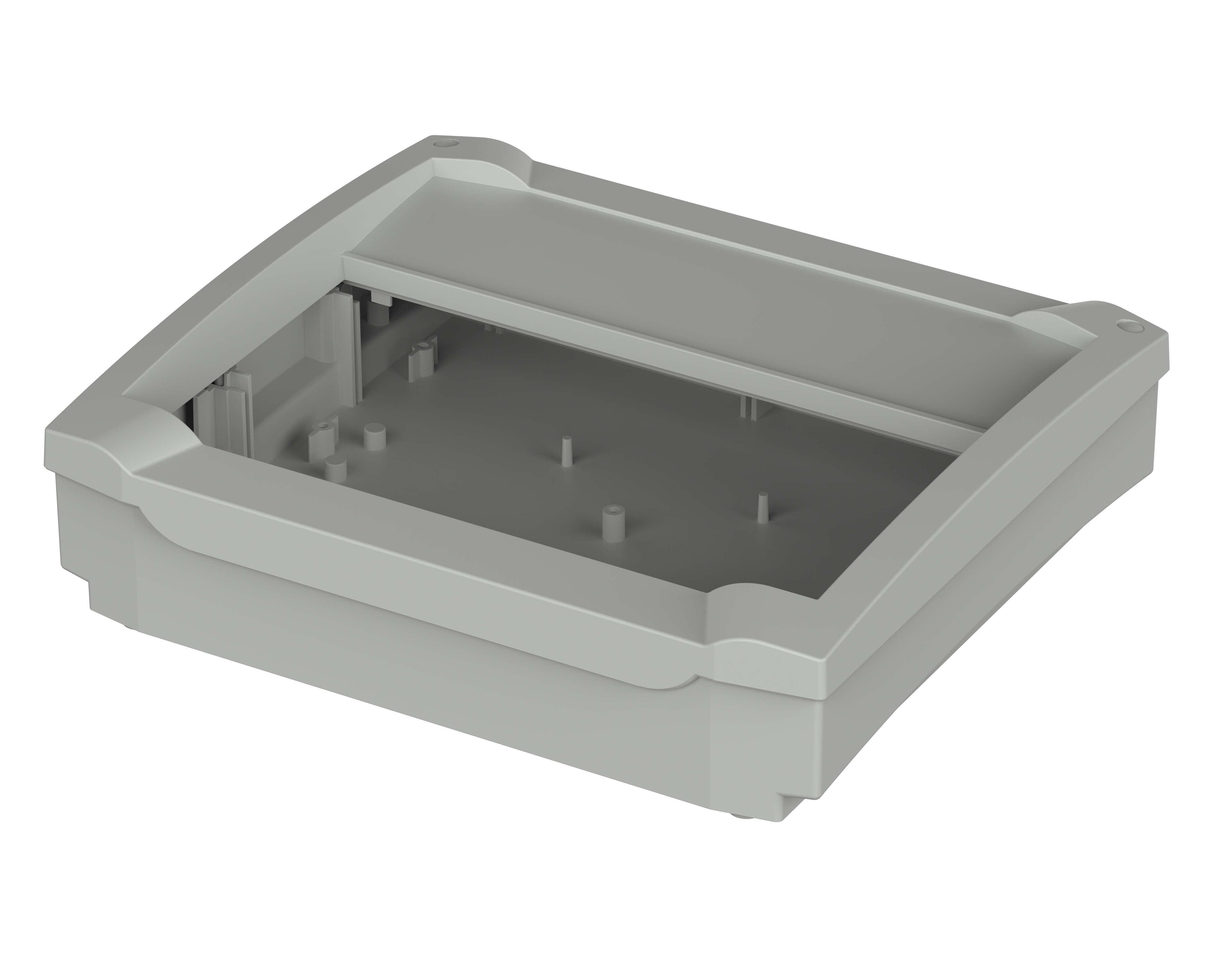

Flat enclosure, with front frame open, incl. terminal compartment cover, IP 40

Model BCD_200_SET_10-7035
Manufacturer No 20203510
229 x  203 x  59 mm
Material ABS (acrylonitrile-butadiene-styrene)
IP Rating 40
Product Drawing
Technical Drawings
    CAD Files
    Assemblies

      Product Specs

      Artikel SAP Abmessungen

      230 X 204 X 75

      Artikel SAP Basismengeneinheit

      ST

      Artikel SAP erfasst am

      10.11.2004

      Artikel SAP geändert am

      05.05.2011

      SAP Löschvormerkung

      Artikel SAP Min Auftragsmenge Inland

      0,000

      Artikel SAP Minimale Auftragsmenge Export

      0,000

      Artikel SAP Verkaufs ME Export

      Artikel SAP Verkaufs ME Inland

      Artikel SAP Warengruppe

      20

      Artikel Breite

      229

      Artikel Höhe

      59

      Artikel Länge

      203

      A

      229

      B

      203

      C

      59

      Colour

      Light grey

      Enclosure material

      ABS (acrylonitrile-butadiene-styrene)

      Artikel_IP_Nummer

      40

      Italienisch ist Englisch

      0

      Artikel_Farbe

      Light grey, similar to RAL 7035

      NEMA

      1

      Assembly Instructions

      Bocard_BCD_Gehaeusemontage_Zubehoer_Enclosure_Assembly_Accessories_20008010.pdf (455.0 KB)
      Bocard_BCD-310-400_Gehaeusemontage_Wandmontage_Enclosure_Assembly_Wall_Assembly_20008014.pdf (282.1 KB)

      Material Data

      ABS MMIA Polyman (Enclosure)
      ABS Cycolac GPM5500S (Enclosure)
      ABS Elix H605 (Enclosure)
