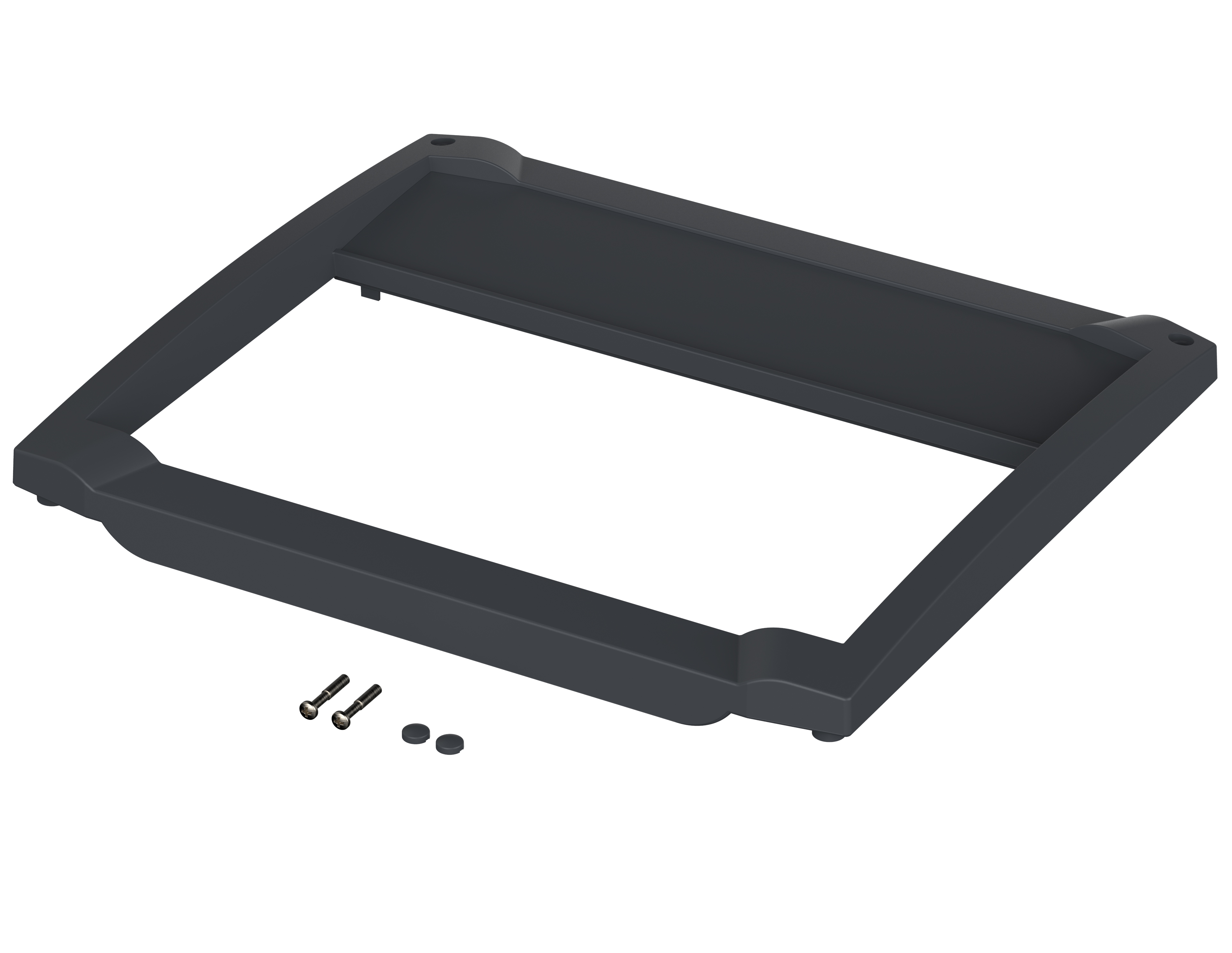

BCD 250 FO-K-7024 Screw-on open front frame with terminal compartment cover, screw-on
Screw-on open front frame with terminal compartment cover, screw-on
BCD 250 FO-K-7024
Order No:
20251224 Manufacturer No: 20251224
Dimensions
264 x 232.85 x 18.6 mmTechnical Drawings
20251224_BCD-250-FO-K-7024-G.dxf
20251224_BCD-250-FO-K-7024-G.dxf
(716.9 KB)
20251224_BCD-250-FO-K-7024.pdf
20251224_BCD-250-FO-K-7024.pdf
(48.2 KB)
20251224_BCD-250-FO-K-7024.dxf
20251224_BCD-250-FO-K-7024.dxf
(662.0 KB)
Product Information
Bocard_GB.pdf
(3.1 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 40
Enclosure Material
ABS, PC; seal: CR; UL 94 V0 types on request;
CR or PU seal, foamed
for details see Technical Information.
Scope of delivery
1 front frame with terminal compartment cover, screws, screw covers
Assembly Instructions
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
