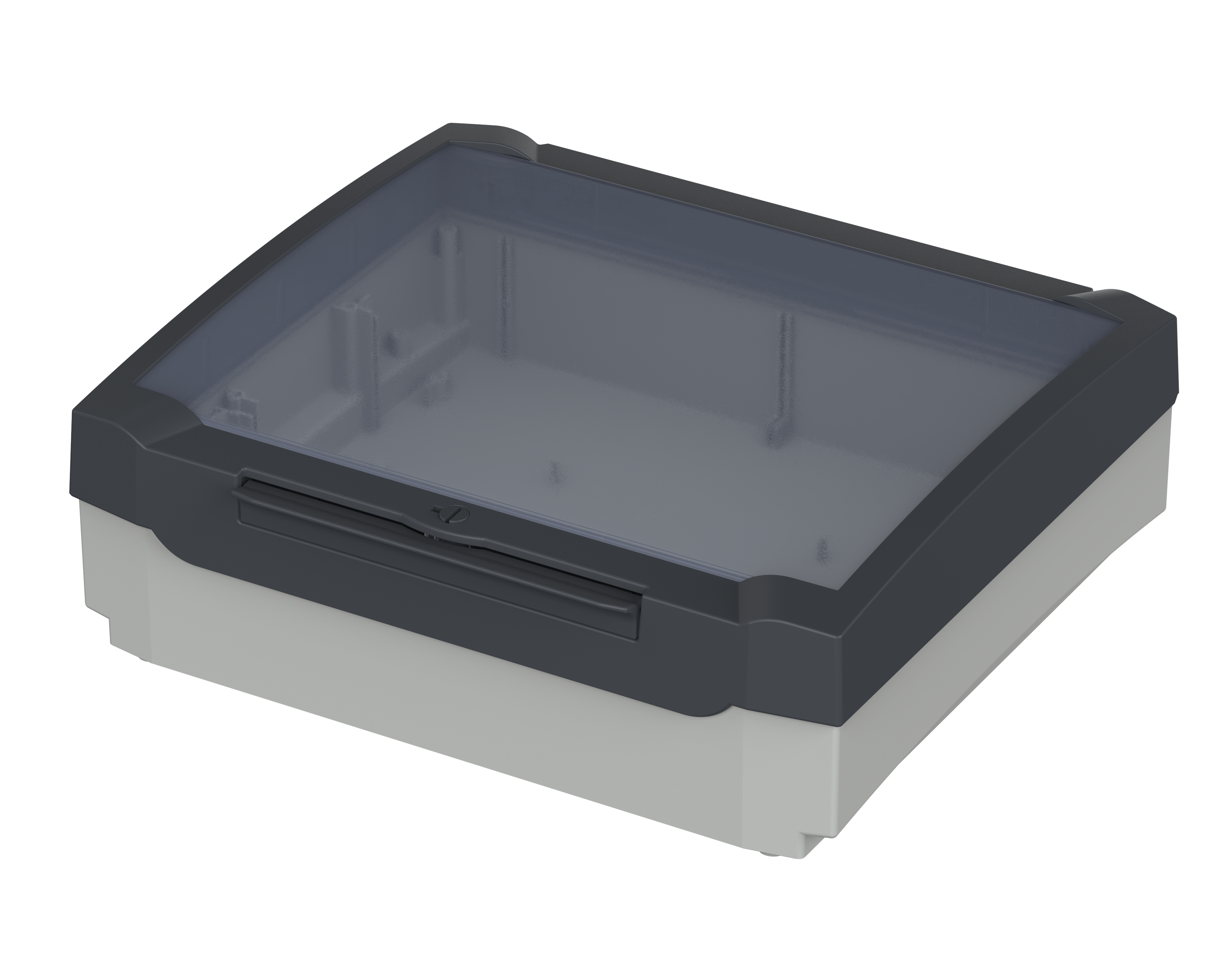

Flat enclosure, with crystal-clear hinged lid, without terminal compartment, IP 66 / IP 68 – 1.2m (2 hrs.)
BCD_255_SET_02-7024

Manufacturer No 20262402.S
Material ABS (acrylonitrile-butadiene-styrene)
IP 66,68
Dimensions 264  x  234  x  86 mm
Product Drawing
Technical Drawings
    CAD Files
    Assemblies

      Product Specs

      Artikel SAP Abmessungen

      265 X 248 X 100

      Artikel SAP Basismengeneinheit

      ST

      Artikel SAP erfasst am

      10.11.2004

      Artikel SAP geändert am

      05.05.2011

      SAP Löschvormerkung

      Artikel SAP Min Auftragsmenge Inland

      0,000

      Artikel SAP Minimale Auftragsmenge Export

      0,000

      Artikel SAP Verkaufs ME Export

      Artikel SAP Verkaufs ME Inland

      Artikel SAP Warengruppe

      20

      Artikel Breite

      264

      Artikel Höhe

      86

      Artikel Länge

      234

      A

      264

      B

      234

      C

      86

      Enclosure material

      ABS (acrylonitrile-butadiene-styrene)

      Artikel Material 2

      polycarbonate

      Artikel Di Material 2

      CR (chloroprene rubber)

      Italienisch ist Englisch

      0

      Artikel_Farbe

      Graphite grey, similar to RAL 7024

      Artikel_IP_Nummer

      66,68

      Assembly Instructions

      Bocard_BCD_Gehaeusemontage_Zubehoer_Enclosure_Assembly_Accessories_20008010.pdf (455.0 KB)
      Bocard_BCD-310-400_Gehaeusemontage_Wandmontage_Enclosure_Assembly_Wall_Assembly_20008014.pdf (282.1 KB)

      Material Data

      ABS MMIA Polyman (Enclosure)
      ABS Cycolac GPM5500S (Enclosure)
      ABS Elix H605 (Enclosure)
