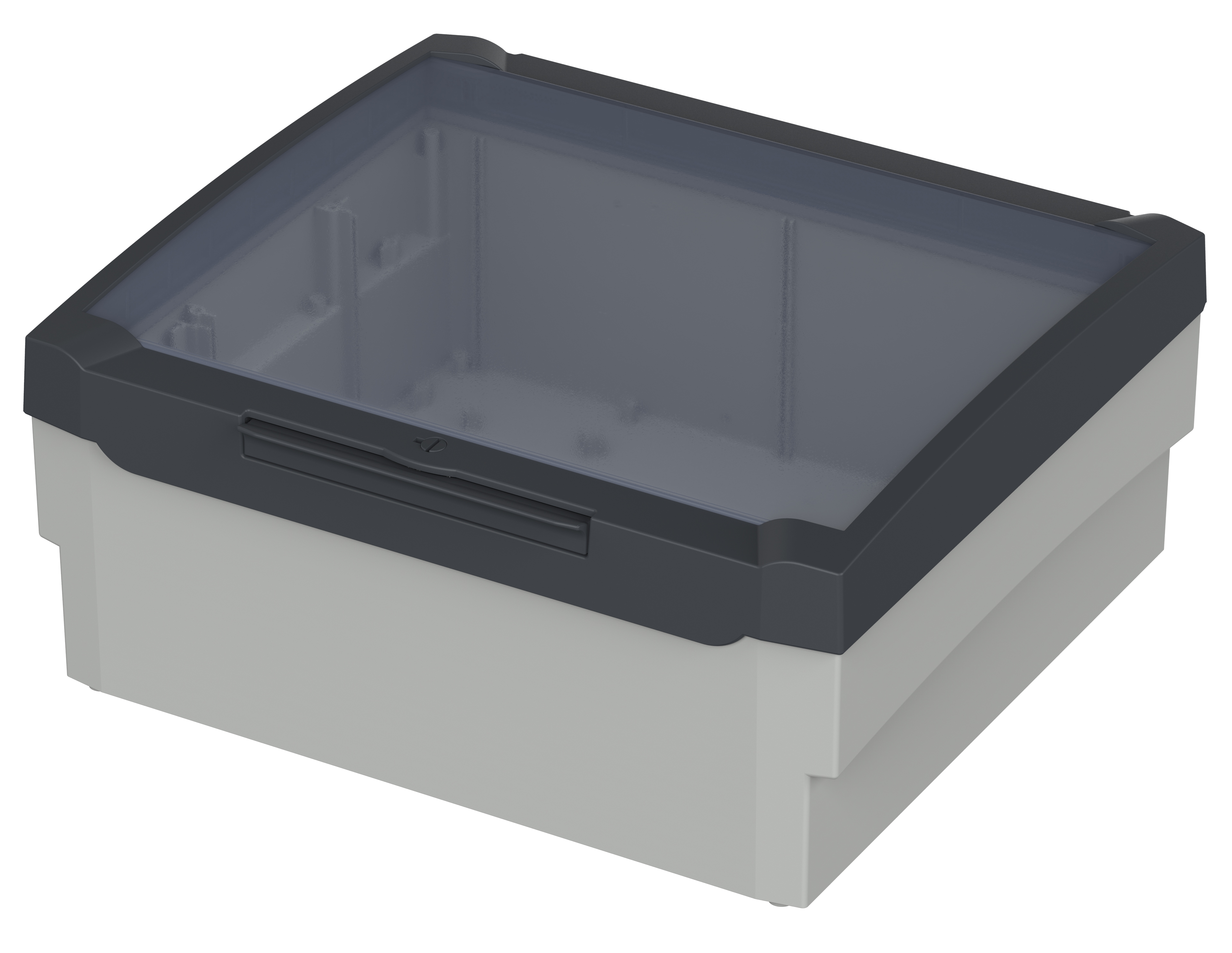

High enclosure, with crystal-clear hinged lid, without terminal compartment, IP 66 / IP 68 – 1.2m (2 hrs.)

Model High enclosure, with clear hinged lid, without terminal compartment, graphite grey
Manufacturer No 20322401.S
324 x  289 x  145.2 mm
Material Plastic
IP Rating 66,68
Product Drawing
Technical Drawings
    CAD Files
    Assemblies

      Product Specs

      Artikel SAP Abmessungen

      328 X 307 X 162

      Artikel SAP Basismengeneinheit

      ST

      Artikel SAP erfasst am

      24.10.2007

      Artikel SAP geändert am

      17.07.2008

      SAP Löschvormerkung

      Artikel SAP Min Auftragsmenge Inland

      0,000

      Artikel SAP Minimale Auftragsmenge Export

      0,000

      Artikel SAP Verkaufs ME Export

      Artikel SAP Verkaufs ME Inland

      Artikel SAP Warengruppe

      20

      Artikel Breite

      324

      Artikel Höhe

      145,2

      Artikel Länge

      289

      A

      324

      B

      289

      C

      145,2

      Enclosure material

      Plastic

      Artikel_IP_Nummer

      66,68

      NEMA

      3

      Artikel_Farbe

      Artikel_IP_Nummer_ETIM

      68

      Assembly Instructions

      Bocard_BCD_Gehaeusemontage_Zubehoer_Enclosure_Assembly_Accessories_20008010.pdf (455.0 KB)
      Bocard_BCD-310-400_Gehaeusemontage_Wandmontage_Enclosure_Assembly_Wall_Assembly_20008014.pdf (282.1 KB)

      Material Data

      ABS MMIA Polyman (Enclosure)
      ABS Cycolac GPM5500S (Enclosure)
      ABS Elix H605 (Enclosure)
