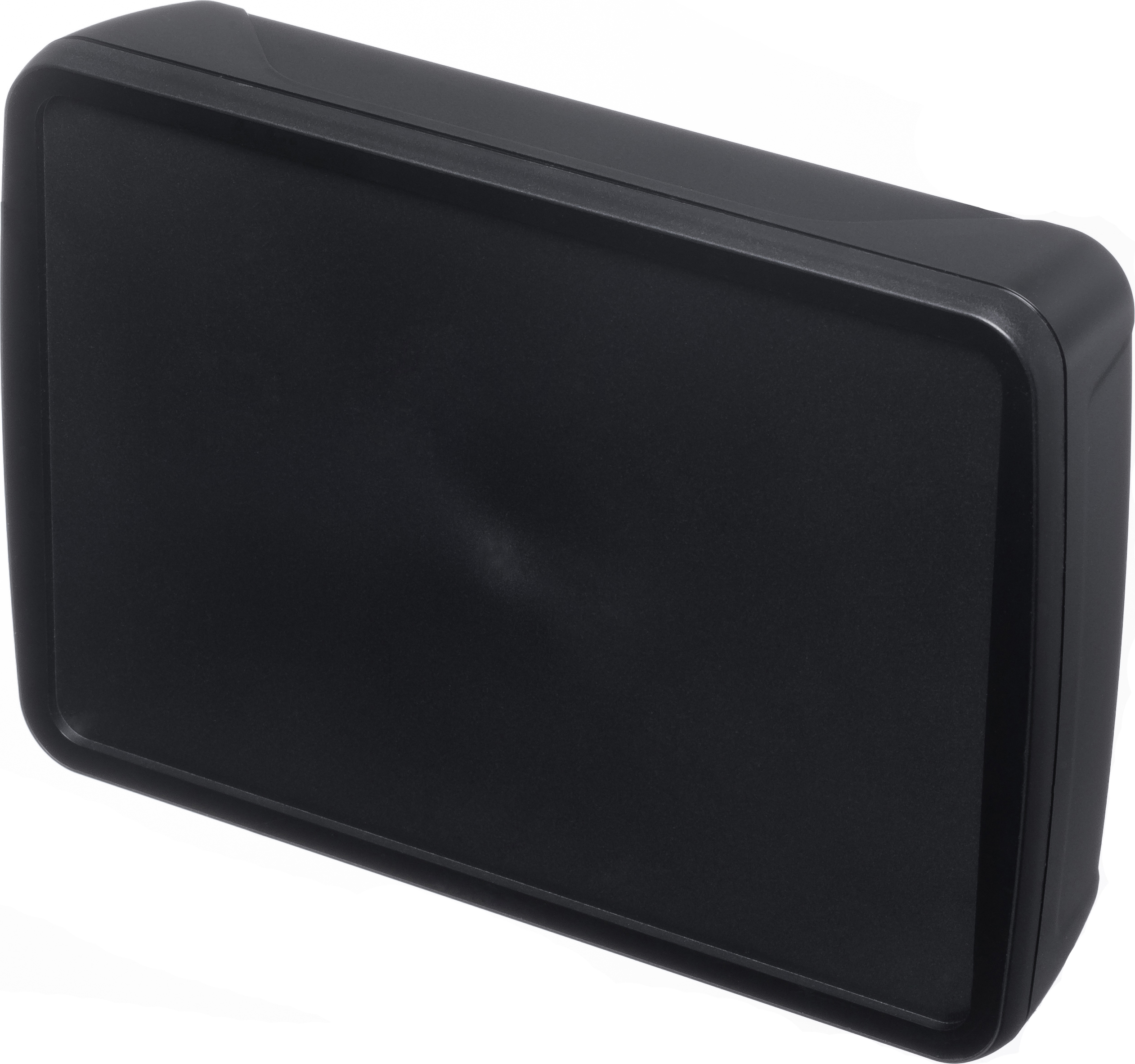

BOP 7.0-9005 Touch/operating enclosure, IP40 (IP65)
Touch/operating enclosure, IP40 (IP65)
BOP 7.0-9005
Order No:
35107015 Manufacturer No: 35107015
Dimensions
215 x 150 x 46 mmTechnical Drawings
35107015_BOP-7.0-9005-G.dxf
35107015_BOP-7.0-9005-G.dxf
(1.5 MB)
35107015_BOP-7-0-9005.pdf
35107015_BOP-7-0-9005.pdf
(218.3 KB)
35107015_BOP-7-0-9005.dxf
35107015_BOP-7-0-9005.dxf
(2.5 MB)
35107015_BOP-7.0-9005-pcb.pdf
35107015_BOP-7.0-9005-pcb.pdf
(159.5 KB)
35107015_BOP-7.0-9005-pcb.dxf
35107015_BOP-7.0-9005-pcb.dxf
(880.8 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 40, 65
Enclosure Material
Enclosures: ABS
Seal / impact protection: TPE
For details see technical information
Scope of delivery
Lid and base, 6 screws
Note
The enclosures are designed for the integration of 7.0“ and 10.1“ touch screens / displays.
Upgradable to IP65 with design seal BOP_DI.
Material Data
ABS MMIA Polyman (Enclosure)
ABS Elix H605 (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
