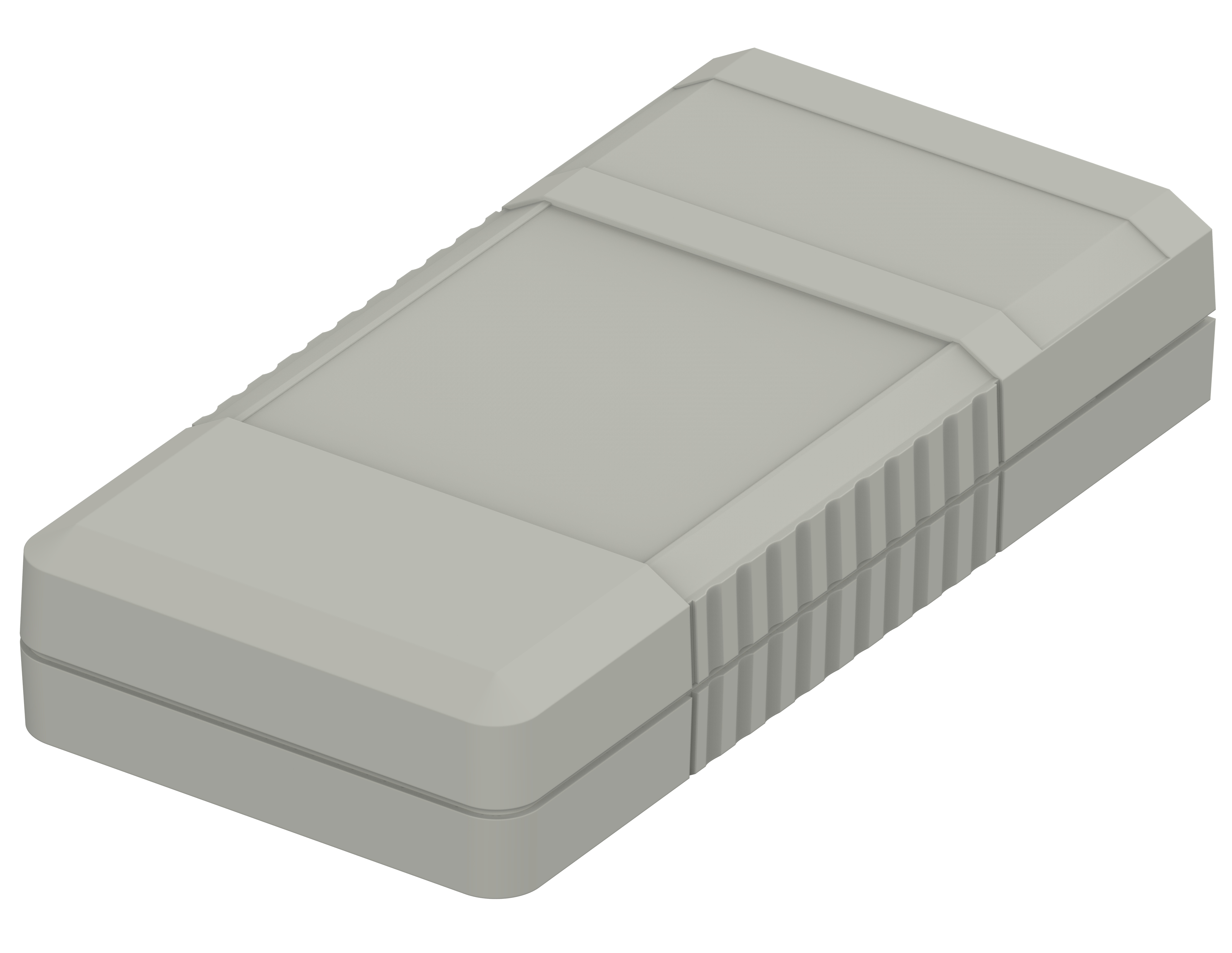

BOS 502 BOS 502 without display cut-out, with compartment for 9V block battery
BOS 502 without display cut-out, with compartment for 9V block battery
BOS 502
Order No:
34502002
Dimensions
120 x 60 x 25 mmTechnical Drawings
34502002_BOS-502-G.dxf
34502002_BOS-502-G.dxf
(618.6 KB)
34502002_BOS-502.pdf
34502002_BOS-502.pdf
(68.5 KB)
34502002_BOS-502.dxf
34502002_BOS-502.dxf
(737.1 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Agate grey
Protection class
IP 40
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid, base, front panel, battery compartment lid, screws
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
