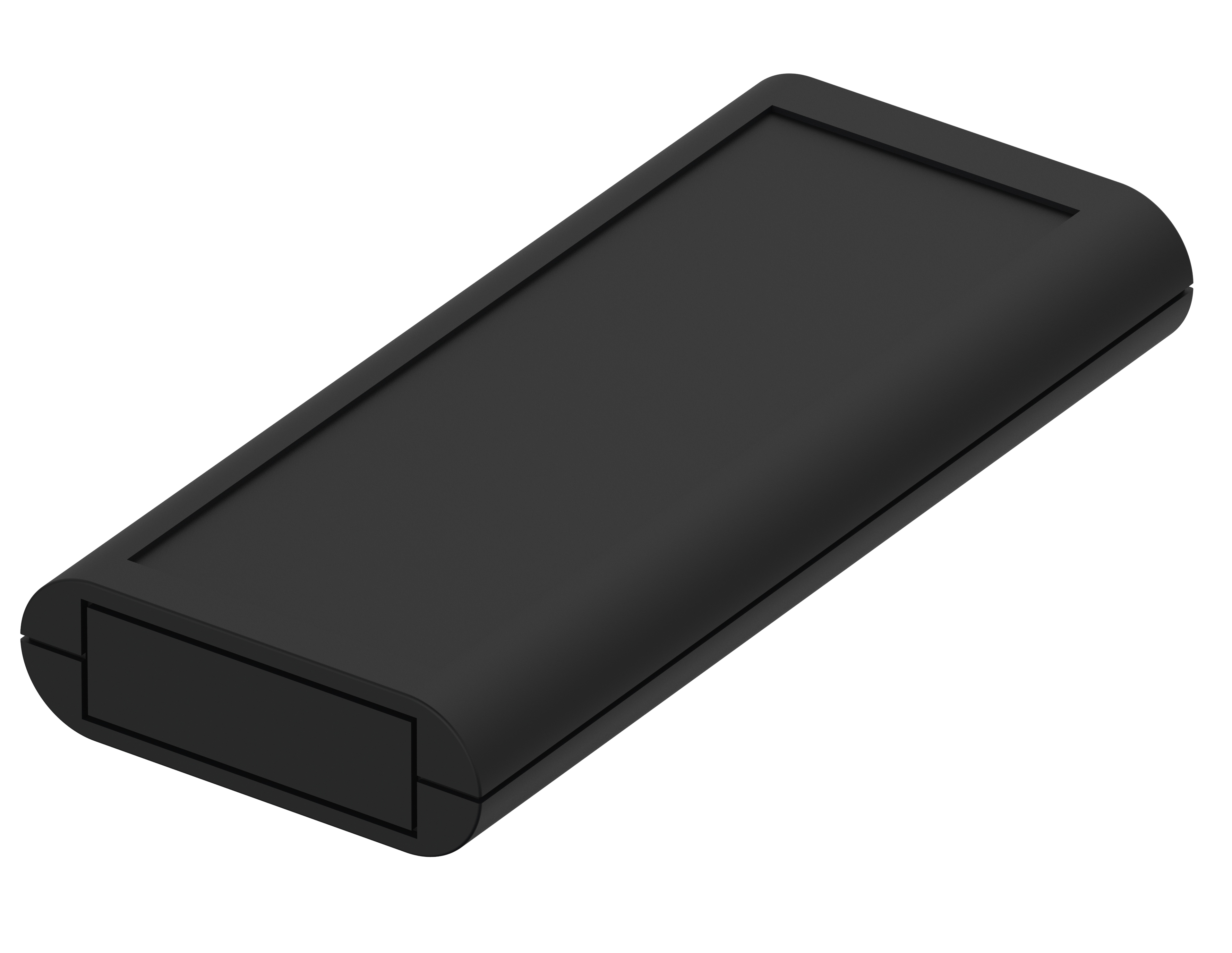

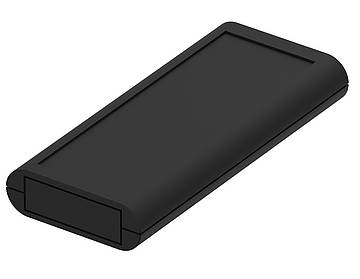

BOS 601 BOS 601 with continuous membrane keypad area and compartment for 9V block battery
BOS 601 with continuous membrane keypad area and compartment for 9V block battery
BOS 601
Order No:
34601000 Manufacturer No: 34601000
Dimensions
172 x 77 x 25 mmTechnical Drawings
34601000_BOS-601-G.dxf
34601000_BOS-601-G.dxf
(366.9 KB)
34601000_BOS-601.pdf
34601000_BOS-601.pdf
(63.7 KB)
34601000_BOS-601.dxf
34601000_BOS-601.dxf
(672.7 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 40
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid, base, 2 front panels, screws, battery compartment lid
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
