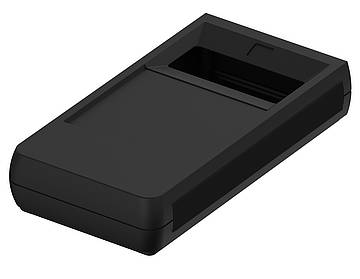

BOS 700 BOS 700/701 with display opening and compartment for 9V block battery
BOS 700/701 with display opening and compartment for 9V block battery
BOS 700
Order No:
34700000 Manufacturer No: 34700000
Dimensions
150 x 80 x 30 mmTechnical Drawings
34700000_BOS-700-G.dxf
34700000_BOS-700-G.dxf
(585.0 KB)
34700000_BOS-700.pdf
34700000_BOS-700.pdf
(90.2 KB)
34700000_BOS-700.dxf
34700000_BOS-700.dxf
(1.5 MB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 40
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid, base, front panel, battery compartment lid, screws, threaded inserts
Please order display screen separately.
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
