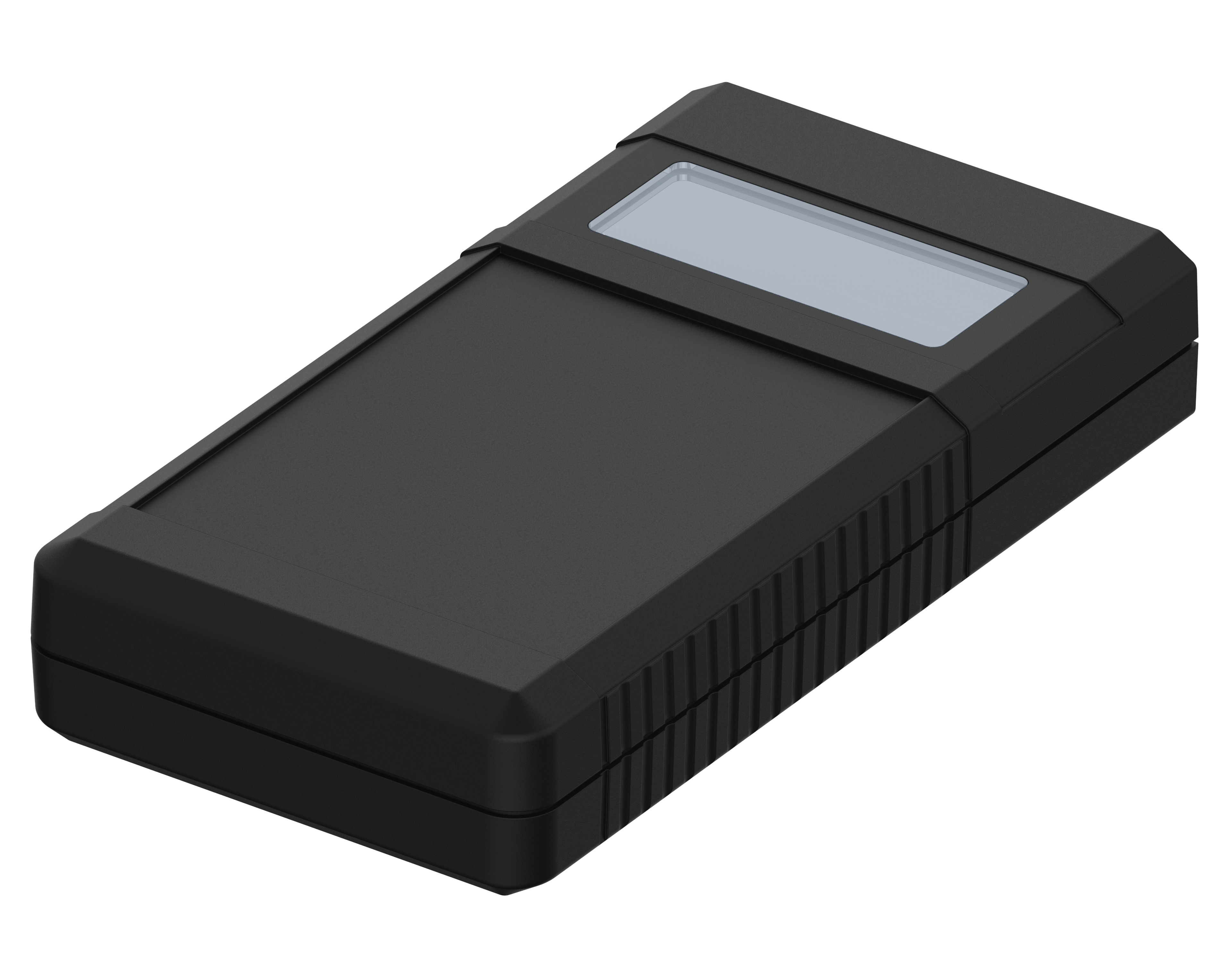

BOS 760 BOS 760 with display screen, side-fitted slide for switch
BOS 760 with display screen, side-fitted slide for switch
BOS 760
Order No:
34760000
Dimensions
157 x 84 x 30 mmTechnical Drawings
34760000_BOS-760-G.dxf
34760000_BOS-760-G.dxf
(827.3 KB)
34760000_BOS-760.pdf
34760000_BOS-760.pdf
(68.6 KB)
34760000_BOS-760.dxf
34760000_BOS-760.dxf
(823.0 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 40
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid, base, front panel, battery compartment lid, screws, display screen, slide
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
