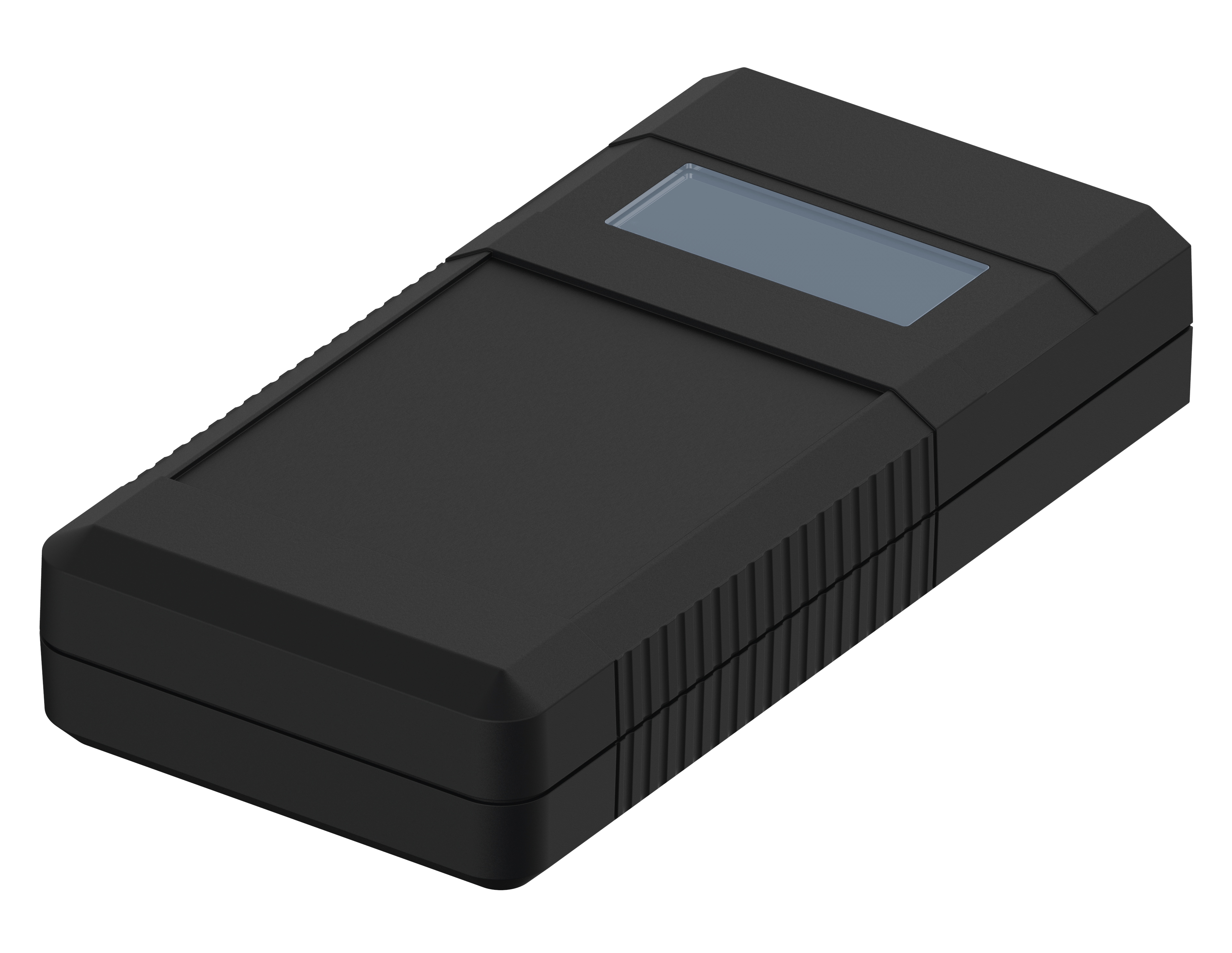

BOS 801 BOS 801 with display screen and compartment for 4 x 1.5 mignon batteries
BOS 801 with display screen and compartment for 4 x 1.5 mignon batteries
BOS 801
Order No:
34801000 Manufacturer No: 34801000
Dimensions
196 x 100 x 40 mmTechnical Drawings
34801000_BOS-801-G.dxf
34801000_BOS-801-G.dxf
(747.8 KB)
34801000_BOS-801.pdf
34801000_BOS-801.pdf
(74.7 KB)
34801000_BOS-801.dxf
34801000_BOS-801.dxf
(949.4 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 40
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid, base, front panel, screws, battery compartment lid, contacts, display screen
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
