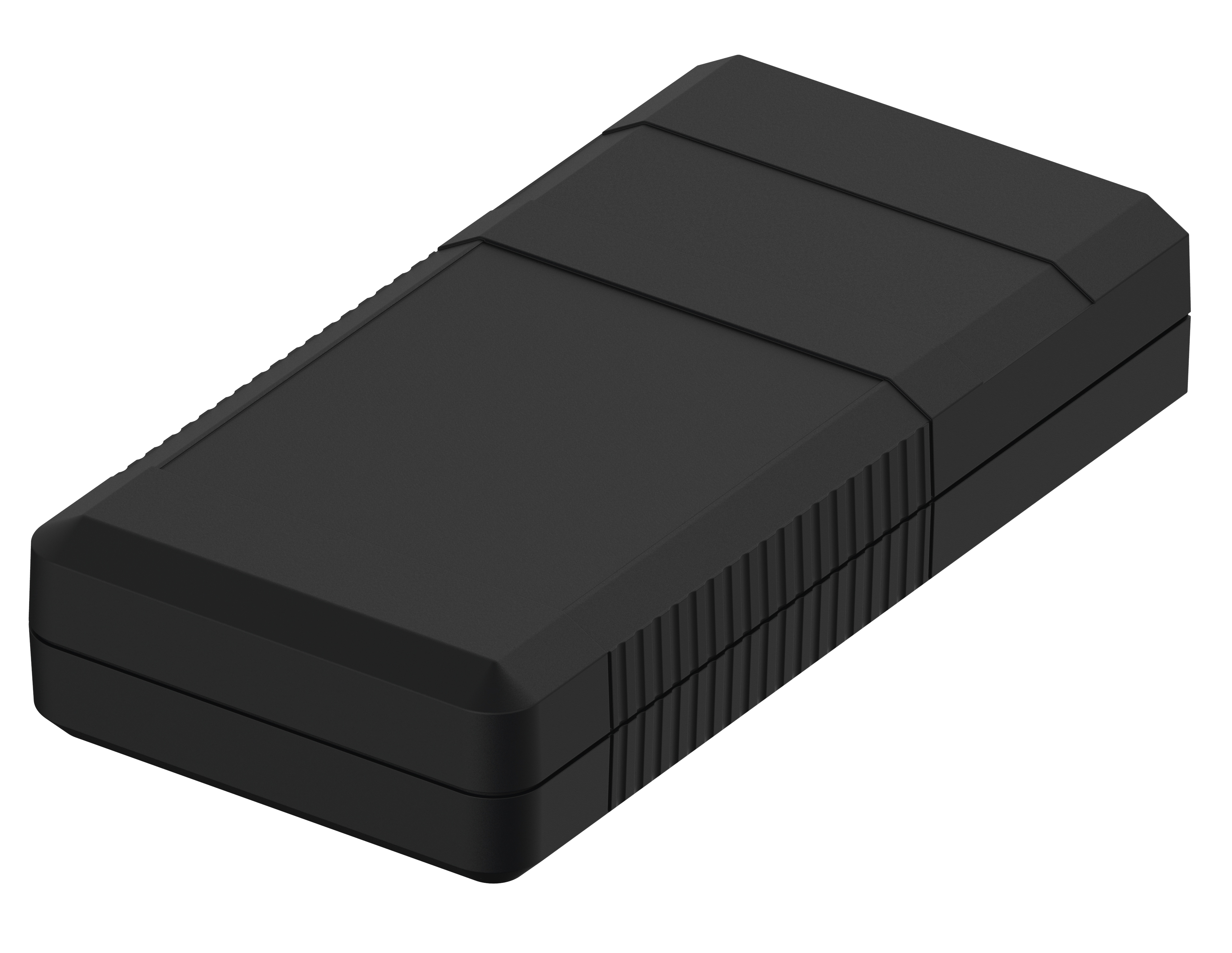

BOS 802 BOS 802 without display cut-out, with compartment for 4 x 1.5 V mignon batteries
BOS 802 without display cut-out, with compartment for 4 x 1.5 V mignon batteries
BOS 802
Order No:
34802000 Manufacturer No: 34802000
Dimensions
196 x 100 x 40 mmTechnical Drawings
34802000_BOS-802-G.dxf
34802000_BOS-802-G.dxf
(723.9 KB)
34802000_BOS-802.pdf
34802000_BOS-802.pdf
(74.7 KB)
34802000_BOS-802.dxf
34802000_BOS-802.dxf
(949.4 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 40
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid, base, front panel, screws, battery compartment lid, contacts
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
