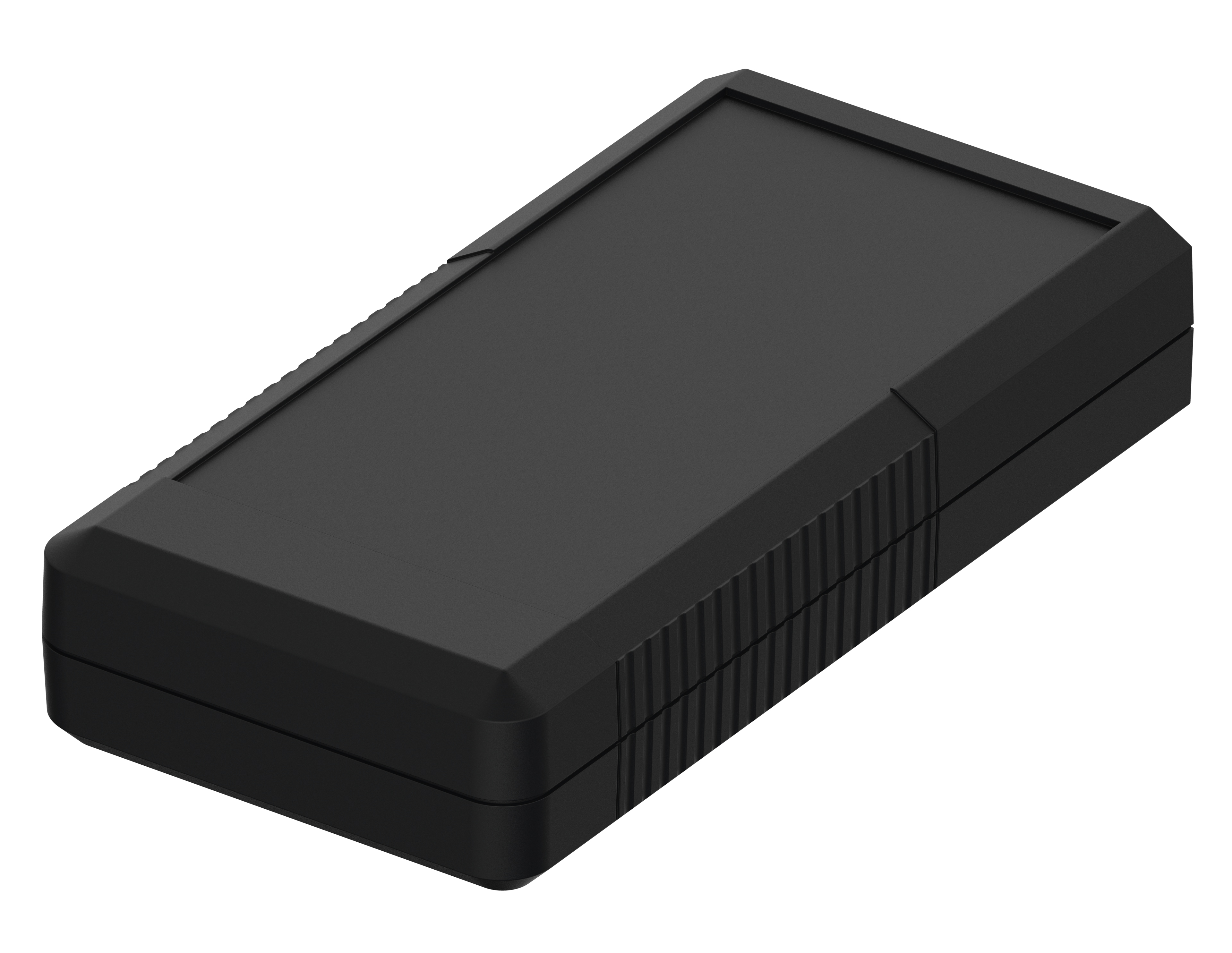

BOS 807 BOS 807 with continuous membrane keypad area and compartment for 4 x 1.5 V mignon batteries
BOS 807 with continuous membrane keypad area and compartment for 4 x 1.5 V mignon batteries
BOS 807
Order No:
34807000 Manufacturer No: 34807000
Dimensions
196 x 100 x 40 mmTechnical Drawings
34807000_BOS-807-G.dxf
34807000_BOS-807-G.dxf
(1.1 MB)
34807000_BOS-807.pdf
34807000_BOS-807.pdf
(72.9 KB)
34807000_BOS-807.dxf
34807000_BOS-807.dxf
(920.0 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 40
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid, base, front panel, screws, battery compartment lid, contacts
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
