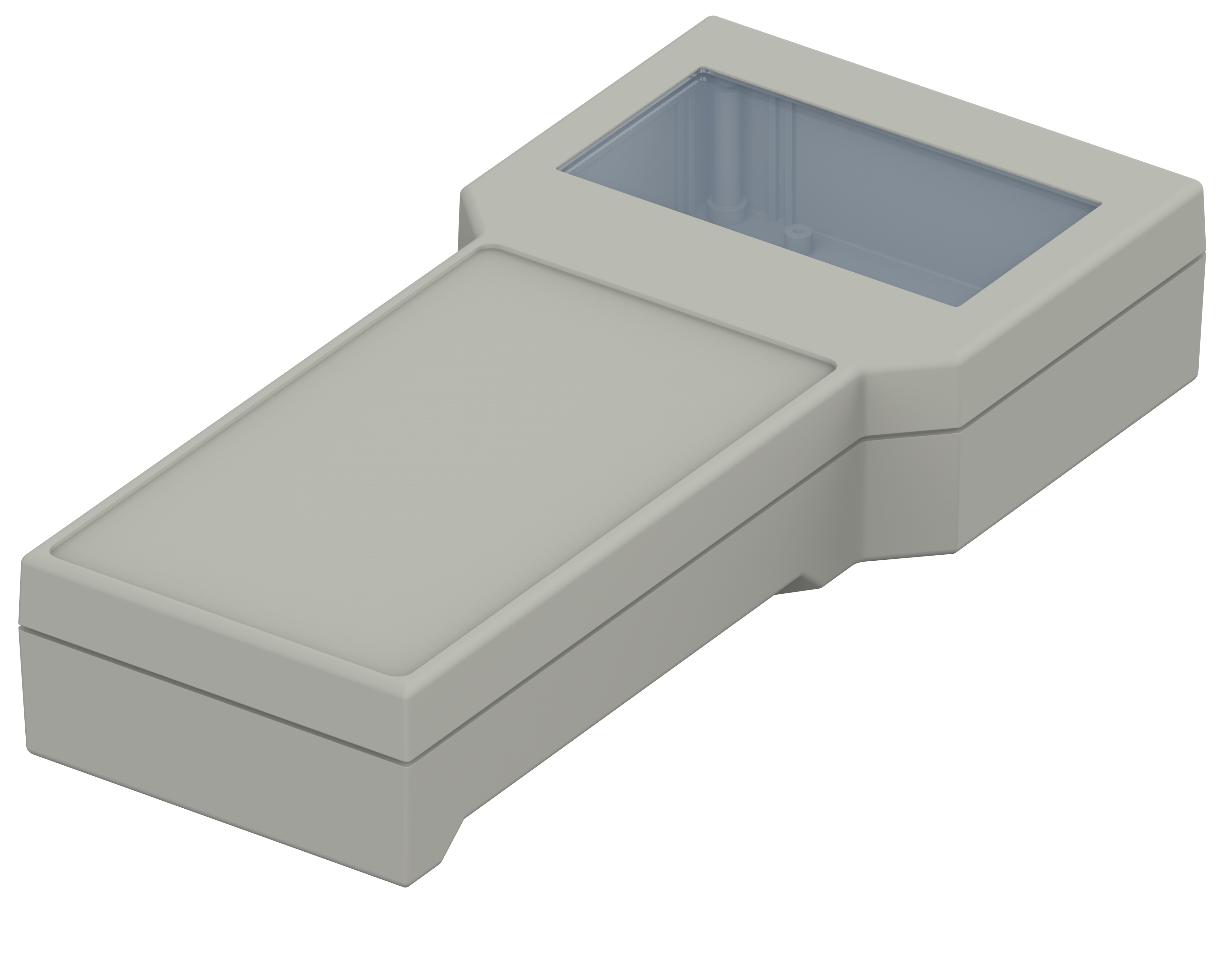

BOS 911 BOS 911 with tip-up foot
BOS 911 with tip-up foot
BOS 911
Order No:
34911000* Manufacturer No: 34911000
Dimensions
224 x 106 x 40 mmTechnical Drawings
34911000_BOS-911-G.dxf
34911000_BOS-911-G.dxf
(1.2 MB)
34911000_BOS-911.pdf
34911000_BOS-911.pdf
(67.6 KB)
34911000_BOS-911.dxf
34911000_BOS-911.dxf
(628.4 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Agate grey
Protection class
IP 65
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid with seal, base, self-tapping screws, tip-up foot, display screen
Note
Fitting of display screen on request
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
