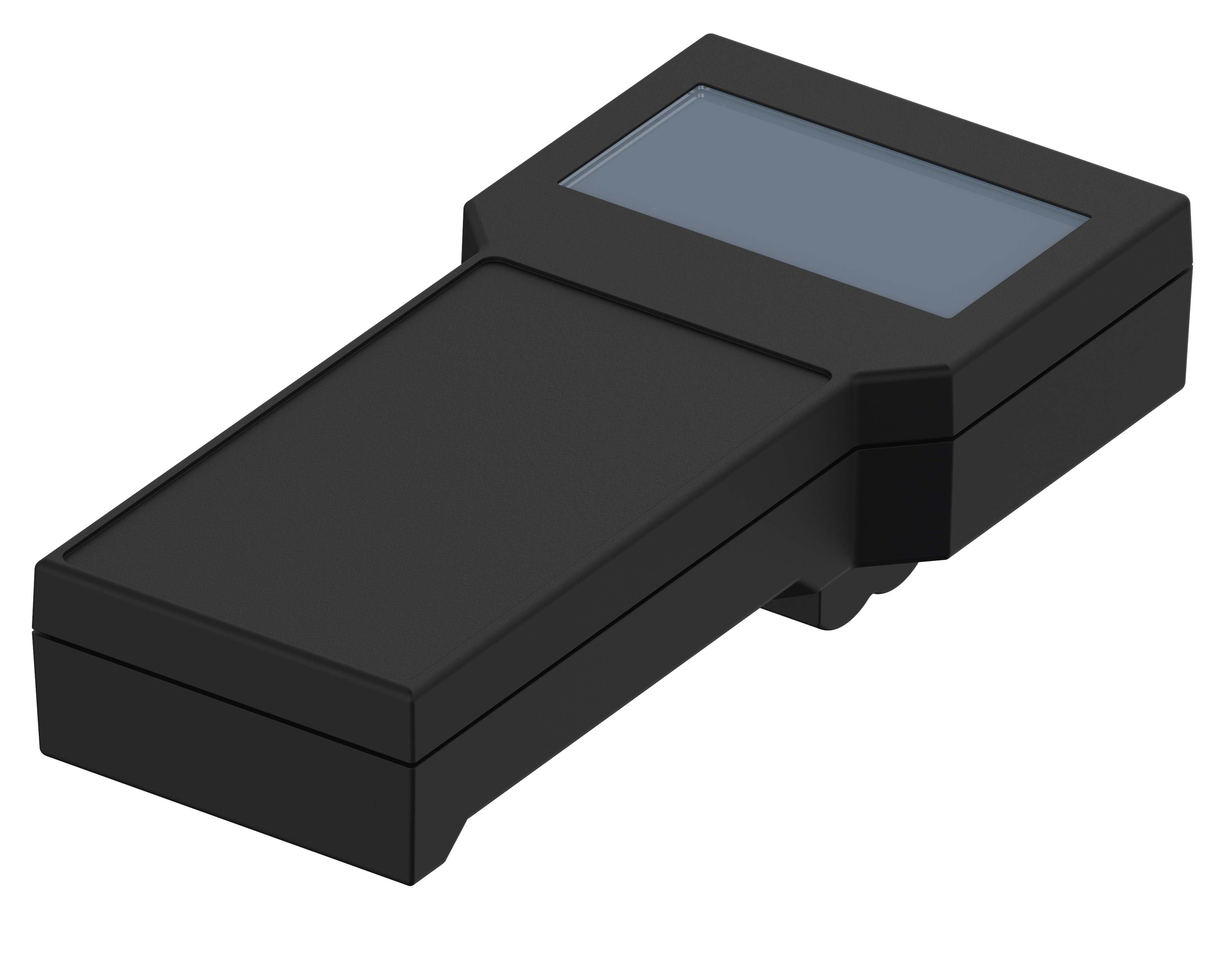

BOS 912 BOS 912 with compartment for 4 x 1.5 V mignon batteries
BOS 912 with compartment for 4 x 1.5 V mignon batteries
BOS 912
Order No:
34912009 Manufacturer No: 34912009
Dimensions
224 x 106 x 40 mmTechnical Drawings
34912009_BOS-912-G.dxf
34912009_BOS-912-G.dxf
(1.2 MB)
34912009_BOS-912.pdf
34912009_BOS-912.pdf
(71.0 KB)
34912009_BOS-912.dxf
34912009_BOS-912.dxf
(687.7 KB)
Product Information
BOS_GB.pdf
(746.5 KB)
Product Specs
Color of enclosure group
Black, similar to RAL 9005
Protection class
IP 65
Enclosure Material
ABS, seal made of CR; for details see Technical Information
Scope of delivery
Lid with seal, base with battery compartment including contacts, screws, display screen (enclosed unfitted)
Note
Fitting of display screen on request
Material Data
ABS MMIA Polyman (Enclosure)
ABS Cycolac GPM5500S (Enclosure)
ABS Elix H605 (Enclosure)
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
