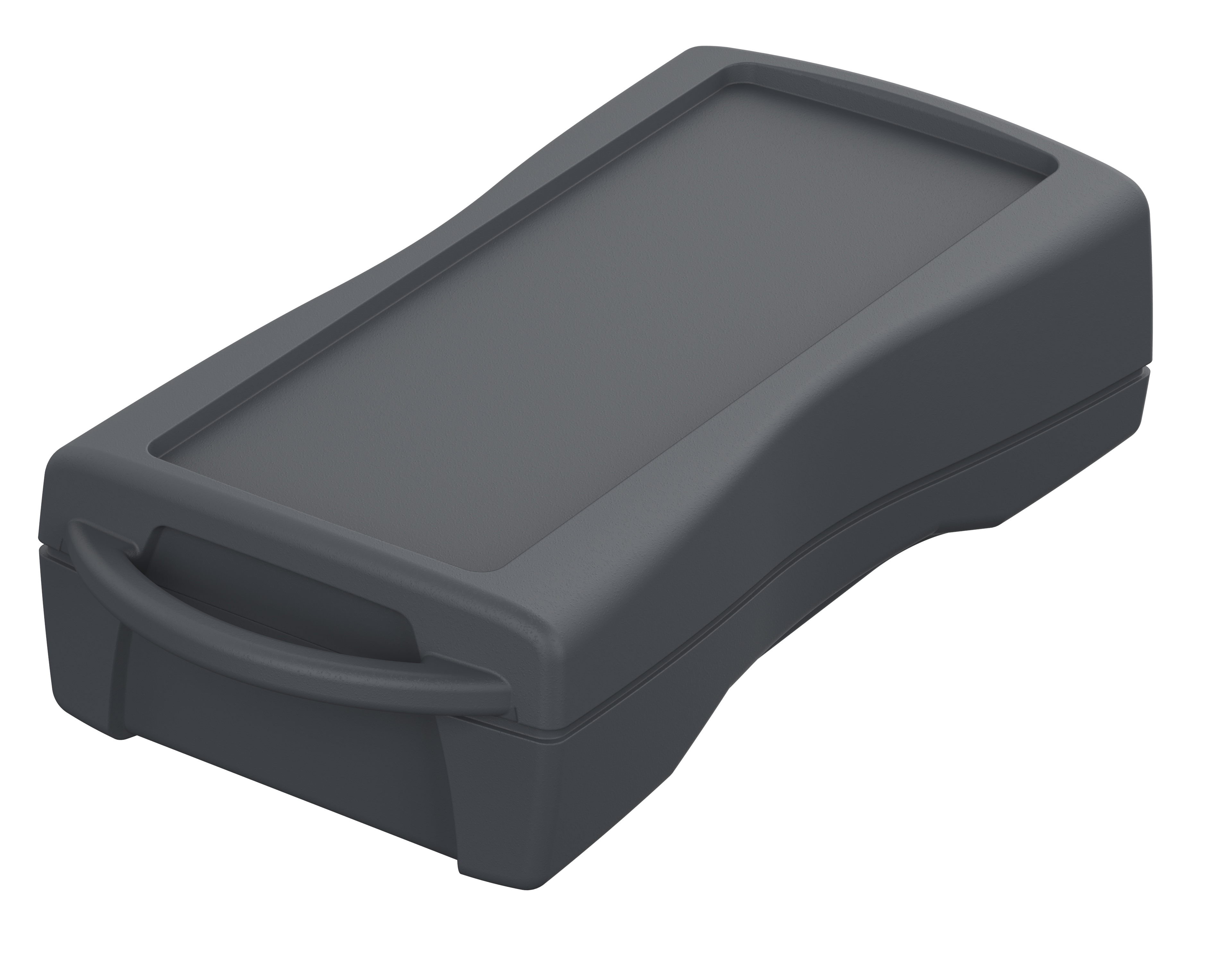

BS 202 F-7024 BS 202 F, IP 54, with loop for attaching lanyard
BS 202 F, IP 54, with loop for attaching lanyard
BS 202 F-7024
Order No:
82202124 Manufacturer No: 82202124
Dimensions
79.4 x 44.1 x 22.2 mmTechnical Drawings
82202124_BS-202-F-7024-G.dxf
82202124_BS-202-F-7024-G.dxf
(1.2 MB)
82202124_BS-202-F-7024.pdf
82202124_BS-202-F-7024.pdf
(183.6 KB)
82202124_BS-202-F-7024.dxf
82202124_BS-202-F-7024.dxf
(2.5 MB)
82202124_BS-202-F-7024-pcb.pdf
82202124_BS-202-F-7024-pcb.pdf
(136.0 KB)
82202124_BS-202-F-7024-pcb.dxf
82202124_BS-202-F-7024-pcb.dxf
(637.7 KB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 54
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base including seal, 1 screw
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
