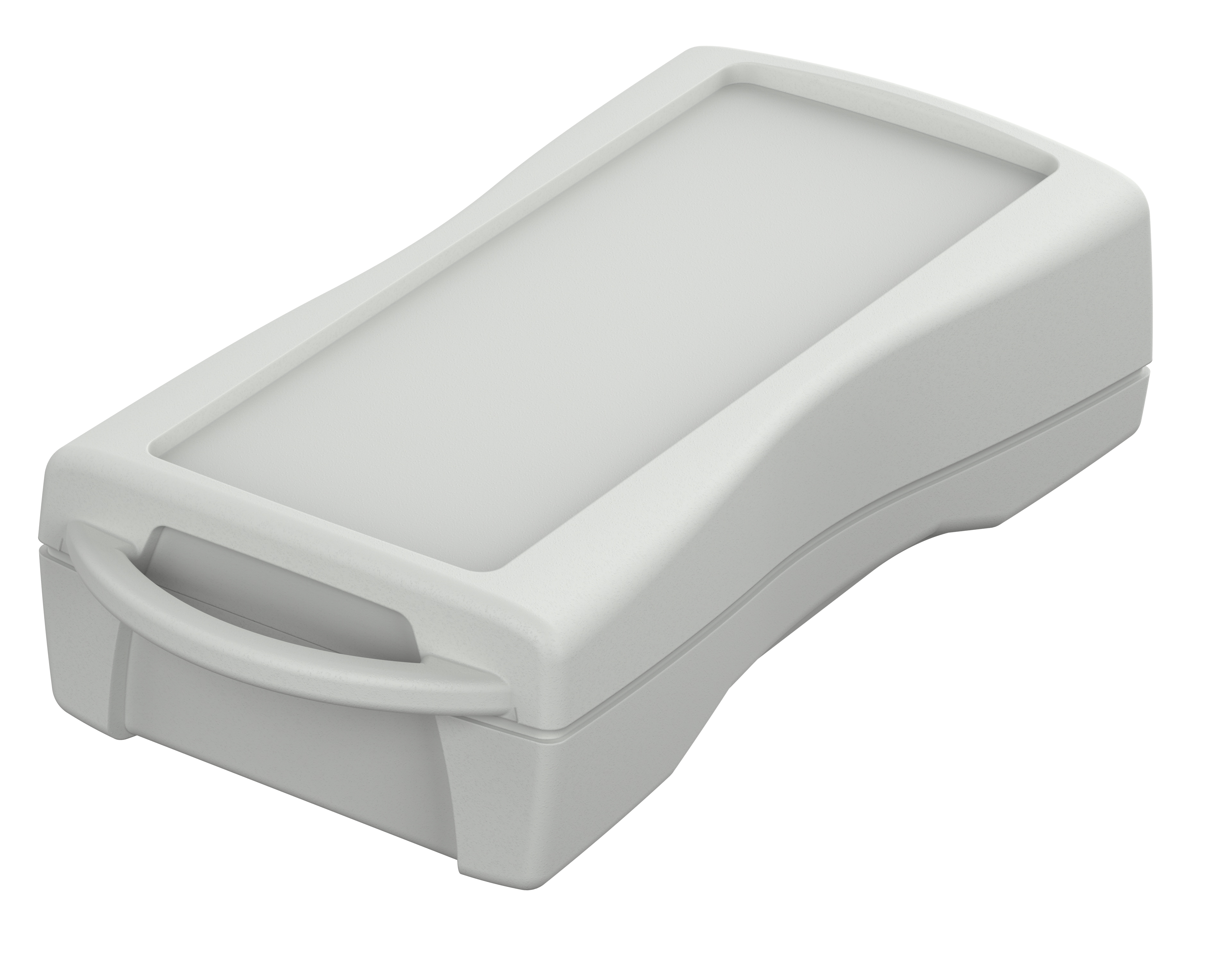

BS 202 F-7035 BS 202 F, IP 54, with loop for attaching lanyard
BS 202 F, IP 54, with loop for attaching lanyard
BS 202 F-7035
Order No:
82202135 Manufacturer No: 82202135
Dimensions
79.4 x 44.1 x 22.2 mmTechnical Drawings
82202135_BS-202-F-7035-G.dxf
82202135_BS-202-F-7035-G.dxf
(1.2 MB)
82202135_BS-202-F-7035.pdf
82202135_BS-202-F-7035.pdf
(183.6 KB)
82202135_BS-202-F-7035.dxf
82202135_BS-202-F-7035.dxf
(2.5 MB)
82202135_BS-202-F-7035-pcb.pdf
82202135_BS-202-F-7035-pcb.pdf
(136.0 KB)
82202135_BS-202-F-7035-pcb.dxf
82202135_BS-202-F-7035-pcb.dxf
(637.7 KB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
Light grey, similar to RAL 7035
Protection class
IP 54
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base including seal, 1 screw
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
