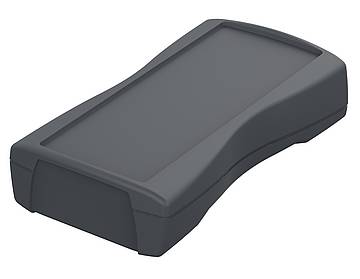

BS 402 F-7024 BS 402 F without battery compartment, IP 65
BS 402 F without battery compartment, IP 65
BS 402 F-7024
Order No:
82402124 Manufacturer No: 82402124
Dimensions
119.3 x 64.9 x 26.5 mmTechnical Drawings
82402124_BS-402-F-7024-G.dxf
82402124_BS-402-F-7024-G.dxf
(1.8 MB)
82402124_BS-402-F-7024.pdf
82402124_BS-402-F-7024.pdf
(131.5 KB)
82402124_BS-402-F-7024.dxf
82402124_BS-402-F-7024.dxf
(1.9 MB)
82402124_BS-402-F-7024-pcb.pdf
82402124_BS-402-F-7024-pcb.pdf
(83.3 KB)
82402124_BS-402-F-7024-pcb.dxf
82402124_BS-402-F-7024-pcb.dxf
(1.3 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 65
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base including seal, 4 screws
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
