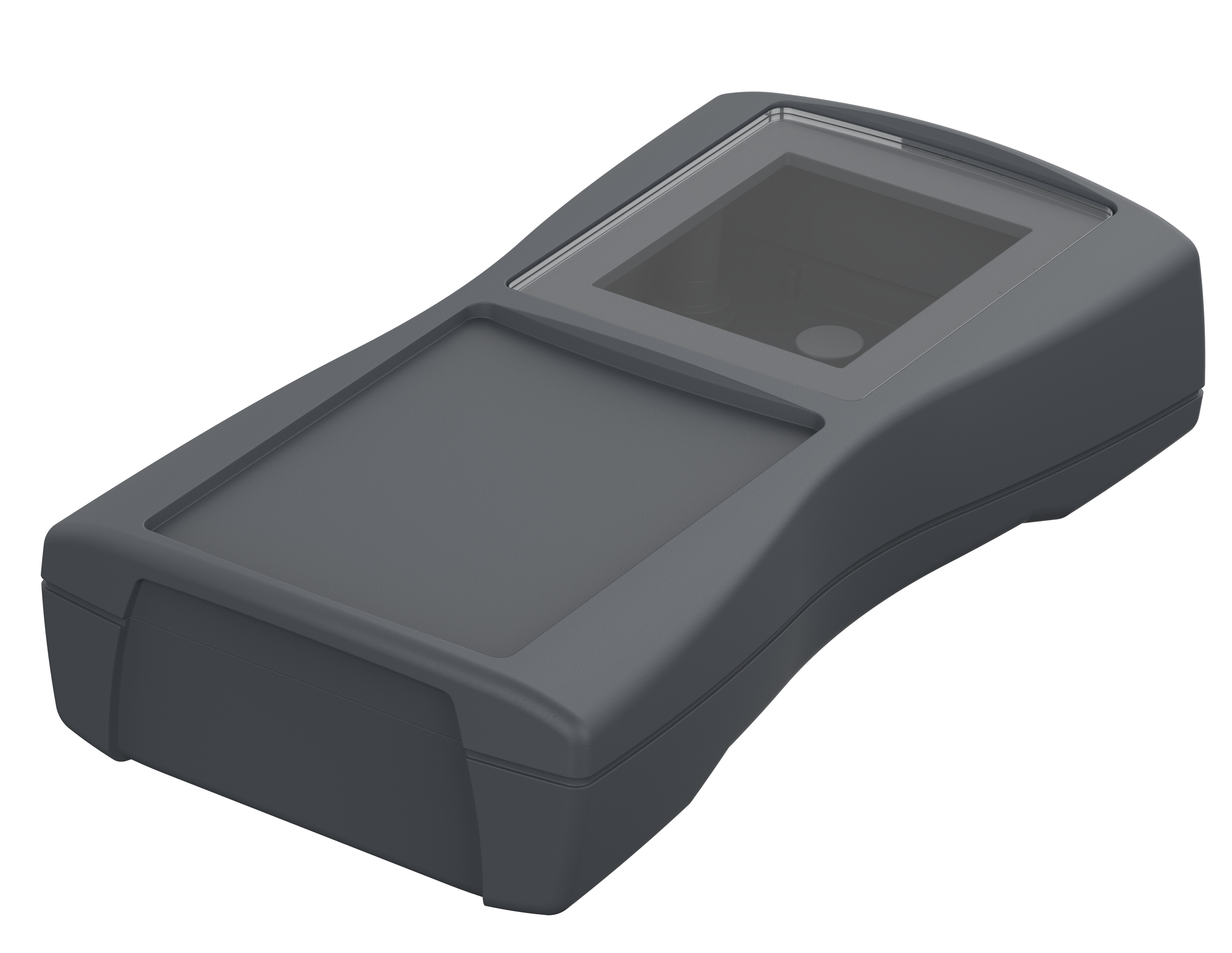

BS 403 DIS-7024 BS 403 DIS with compartment for 3 micro (AAA) batteries, IP 40 (IP 65)
BS 403 DIS with compartment for 3 micro (AAA) batteries, IP 40 (IP 65)
BS 403 DIS-7024
Order No:
82403224 Manufacturer No: 82403224
Dimensions
119.3 x 64.9 x 26.5 mmTechnical Drawings
82403224_BS-403-DIS-7024-G.dxf
82403224_BS-403-DIS-7024-G.dxf
(2.1 MB)
82403224_BS-403-DIS-7024.pdf
82403224_BS-403-DIS-7024.pdf
(161.4 KB)
82403224_BS-403-DIS-7024.dxf
82403224_BS-403-DIS-7024.dxf
(2.4 MB)
82403224_BS-403-DIS-7024-pcb.pdf
82403224_BS-403-DIS-7024-pcb.pdf
(83.3 KB)
82403224_BS-403-DIS-7024-pcb.dxf
82403224_BS-403-DIS-7024-pcb.dxf
(1.3 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
graphite grey
Protection class
IP 40, 65
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base, display screen, adhesive film, 4 screws, battery compartment lid, battery compartment seal, screws, battery contacts
Note
* = Available on request. Upgradable to IP 65 by fitting DI-D.
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
Product Applications
