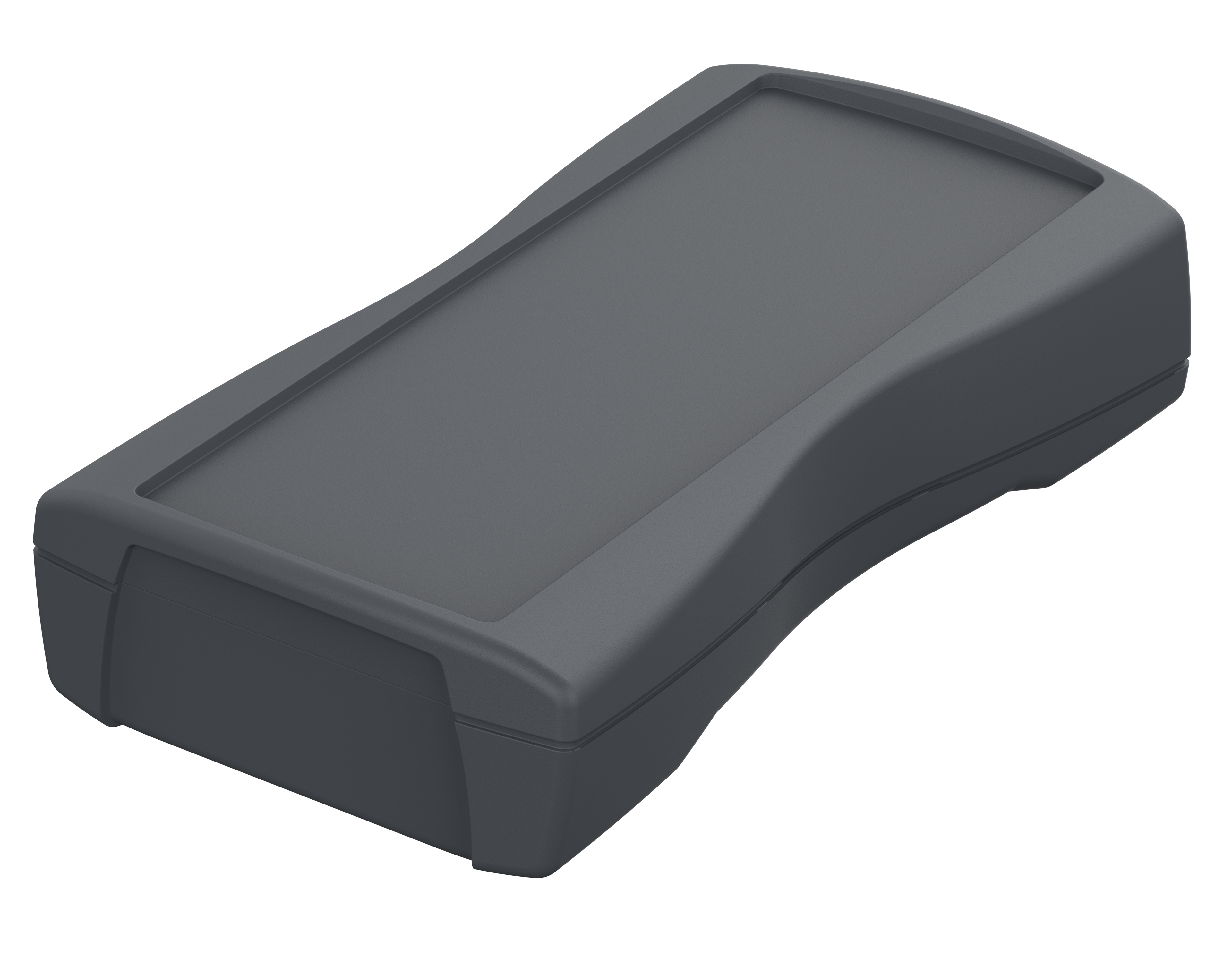

BS 403 F-7024 BS 403 F with compartment for 3 micro (AAA) batteries, IP 40 (IP 65)
BS 403 F with compartment for 3 micro (AAA) batteries, IP 40 (IP 65)
BS 403 F-7024
Order No:
82403124 Manufacturer No: 82403124
Dimensions
119.3 x 64.9 x 26.5 mmTechnical Drawings
82403124_BS-403-F-7024-G.dxf
82403124_BS-403-F-7024-G.dxf
(1.9 MB)
82403124_BS-403-F-7024.pdf
82403124_BS-403-F-7024.pdf
(157.0 KB)
82403124_BS-403-F-7024.dxf
82403124_BS-403-F-7024.dxf
(2.4 MB)
82403124_BS-403-F-7024-pcb.pdf
82403124_BS-403-F-7024-pcb.pdf
(83.3 KB)
82403124_BS-403-F-7024-pcb.dxf
82403124_BS-403-F-7024-pcb.dxf
(1.3 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 40, 65
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Lid and base, 4 screws, battery compartment lid, battery compartment seal, screws, battery contacts
Note
* = Available on request. Upgradable to IP 65 by fitting DI-D.
Material Data
ABS MMIA Polyman
ABS Elix H605
ABS Cycolac GPM5500S
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
» Additional information
