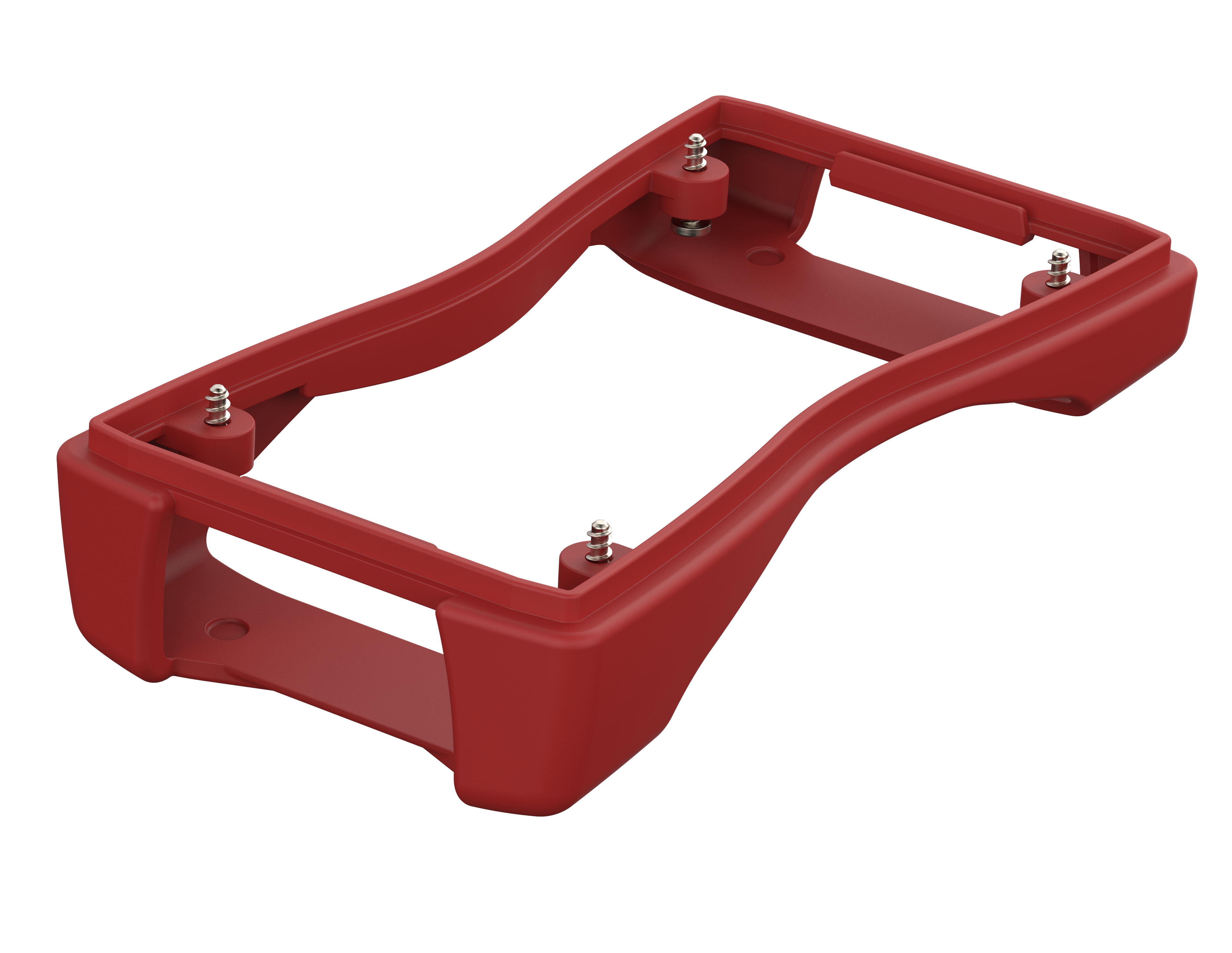

BS 500 DI-D-3001 Decor seals
Decor seals
BS 500 DI-D-3001
Order No:
82853001 Manufacturer No: 82853001
Technical Drawings
82853001_BS-500-DI-D-3001.pdf
82853001_BS-500-DI-D-3001.pdf
(237.1 KB)
82853001_BS-500-DI-D-3001.dxf
82853001_BS-500-DI-D-3001.dxf
(4.4 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
Signal red
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Decor seal, 4 screws; BS 200 DI-D-… 1 screw
Note
Not for use with BS .02 and BS .04.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
