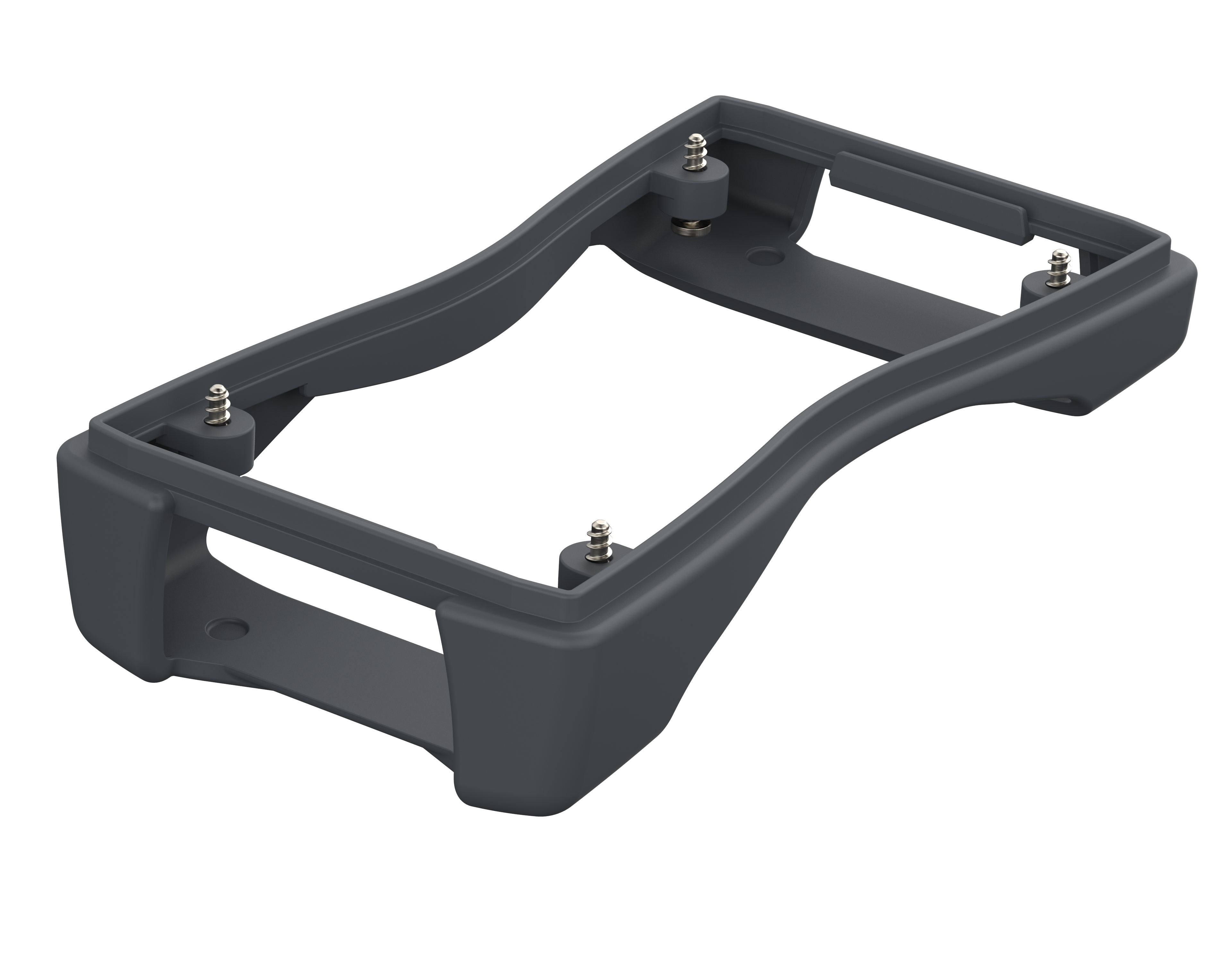

BS 500 DI-D-7024 Decor seals
Decor seals
BS 500 DI-D-7024
Order No:
82857024 Manufacturer No: 82857024
Technical Drawings
82857024_BS-500-DI-D-7024.pdf
82857024_BS-500-DI-D-7024.pdf
(237.1 KB)
82857024_BS-500-DI-D-7024.dxf
82857024_BS-500-DI-D-7024.dxf
(4.4 MB)
Product Information
BOS-Streamline_GB.pdf
(2.9 MB)
Product Specs
Color of enclosure group
graphite grey
Enclosure Material
ABS, decor seal made of TPE; for details see Technical Information
Scope of delivery
Decor seal, 4 screws; BS 200 DI-D-… 1 screw
Note
Not for use with BS .02 and BS .04.
Assembly Instructions
Do you have questions about this product?
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.
